Overview

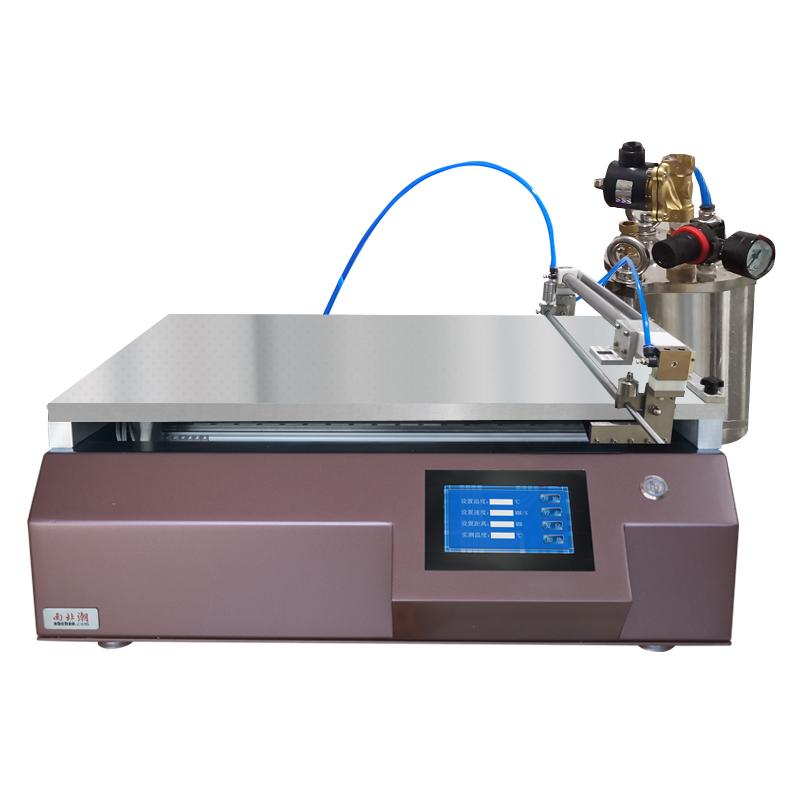

TBJ-B4-DJ4 Automatic Film Applicator is a China Experimental Lab Film Applicator. It adopts imported accessories and has a good price. It is favored by multinational R & D institutions, universities and scientific research institutions at home and abroad. The equipment ensures the uniformity and smoothness of Spreader coating by controlling speed and stable pressure. It aims to solve the problem of artificial film inconsistency, improve film reproducibility, and facilitate the operator to Spreader accurate wet-film on different substrates.
Features
1. Using imported accessories, the price is good and cheap; 2. Spreader speed range is wide, 5~ 180mm/s, support customization; 3. Infinitely variable speed control; 4. Spreader accuracy is high, up to +/- 1μm; 5. Optional automatic inking system, support air source pressure adjustment; 6. Feeding system adopts reciprocating linear motion, and the amount of material can be adjusted; 7. Film applicator is a type of scraper, Spreader Film thickness range is 0.02~ 10mm, can be lifted and lowered; 8. Spreader mode is diverse, including wire rod and scraper; 9. Optional accessories are rich, such as liquid leakage tank, substrate fixing fixture, etc.
Principle
Automatic Film Applicator controls the speed of the Spreader and the pressure applied to the film applicator to achieve uniform Spreader. The charging system adopts the principle of outflow of air source pressure, and controls the discharge volume by adjusting the air pressure and the running speed of the discharge port. The shaft drive adopts the synchronous belt method to ensure the Stability and conformity of the Spreader process.
Applications
Multinational enterprise R & D institutions, domestic and foreign universities, scientific research institutions
Steps
1. Prepare the substrate and Spreader material; 2. Set the Spreader rate and pressure parameters; 3. Start the equipment for Spreader; 4. Adjust the air pressure and speed of the feeding system as needed; 5. Clean the equipment after completing the Spreader.
Notice
* Check the air source connection before use to ensure that the pressure is within 0.6Mpa; * The maximum pressure of the feeding barrel is 8Mpa to avoid overpressure; * Pay attention to the status of the safety valve and pressure gauge during the Spreader process; * Regularly clean the film applicator and feeding system; * Optional accessories need to be configured according to the application requirements; * The equipment voltage is 220V, 50Hz to ensure that the power supply matches.
