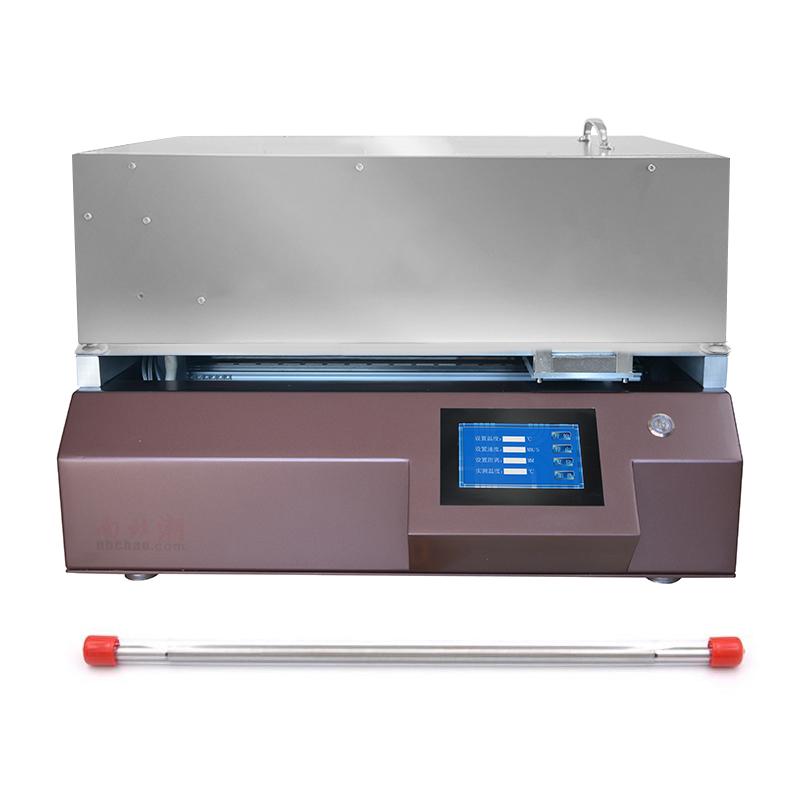

China TBJ-B4-DJ3 Automatic Film Applicator Experimental small Coater

Name: China TBJ-B4-DJ3 Automatic Film Applicator Experimental small Coater
Brand: zy
SKU: NB041874
Price: 3578.0 USD
Availability: PreOrder

$ 3578.00Ex works

Spreader accuracy up to +/- 0.003mm, Spreader Film thickness 0.2-10 mm, rate 2-180mm/s stepless adjustable, heating temperature to 150 ℃, support a variety of accessories customization to ensure uniform and stable Spreader.

Model

TBJ-B4-DJ3

Get Quote

Category : Automatic Film Applicator

Brand : zy

SKU : NB041874

Service :The delivery and service By NBCLab.Com

Overview

TBJ-B4-DJ3 Automatic Film Applicator is a small experimental Lab Film Applicator with imported accessories and low price. It is favored by multinational R & D institutions, universities and scientific research institutions at home and abroad. The uniformity and smoothness of Spreader's gluing are guaranteed by controlling the speed and stable pressure.

Features

1. Using imported accessories, the price is good and cheap 2. Control the speed and stable pressure to ensure the uniformity and smoothness of the Spreader 3. Spreader accuracy, up to +/- 0.003mm 4. Spreader Film thickness range, 0.2~ 10mm 5. Spreader rate adjustable, range 2~ 180mm/s 6. Heating Temperature range RT +~ 150 ℃, Temperature Uniformity +/- 3 ℃ 7. Support stepless speed control 8. Optional accessories are abundant, including leakage tank, substrate fixing fixture, etc 9. Customizable functions such as jet system devices, UV solid inclusion devices, etc

Principle

Automatic Film Applicator performs Spreader operation on the Spreader stage by controlling the movement speed of the scraper and applying a stable pressure. The heating system is heated by tungsten filament lamp, and the temperature is precisely controlled by digital LCD screen and touch control to ensure the uniformity and Stability of the Spreader process.

Applications

Experimental research and development, scientific research institutions, university laboratories

Standards

Not mentioned

Steps

Not mentioned

Notice

Not mentioned

Spreader accuracy
±0.003mm
Spreader accuracy
±1μm
Spreader Film thickness Range
0.2-10mm scraper liftable
Spreader rate
5~ 180mm/s (< 5mm/s can be customized)
Coating Size
400*400mm
heating temperature
RT+~150℃
Heating cover lumen Volume
L600*W500*H180mm
scraper length
400mm
Scraper material
stainless steel
Bottom plate material
aluminum alloy
Heating cover material
Stainless steel double-decked insulation housing
Heating method
Tungsten lamp heating
Temperature display
Digital LCD screen
speed control
Infinitely variable speed
Host power supply
Voltage 220V 50HZ 1700W
Dimension
626*510*600mm
weight
Net weight 65kg
optional accessories
Leakage tank, substrate fixture, trimming horizontal height support foot device, Glass plate, Silicone pad and weight (for applications with uneven film thickness of Spreader substrate), film width control baffle
customizable function
Jet system device, UV solid inclusion device, automatic inking system

[Q] Is the price listed on the website the final cost for overseas purchases?

[A] No, it isn't. This is the ex-factory price of the product in the Chinese Mainland. In addition to this price, buyers from different countries need to account for additional costs such as shipping fees, tariffs, and others. For specific regional quotes, please consult our customer service or fill out a quotation form.

[Q] What is the specific process for purchasing the product?

[A] First, please click on the quotation form on the website and fill in detailed information. Our customer service personnel will then send you a quotation based on your specific country and region, confirming payment and delivery methods. Following this, we proceed with contract signing, payment, and shipment. You can then await delivery.

[Q] What should I do if the instrument I purchase needs repair?

[A] After-sales repair for overseas instruments is an unavoidable issue. Our repair terms stipulate that the sender is responsible for the shipping and insurance costs incurred for the repair. Repairs within the warranty period are free, while repair costs beyond the warranty period are determined based on the actual situation.
