Please contact customer service
Equipped with 6 Measurement Angles and industrial grade MCUs, the measurement wavelength range is 400~ 700nm, which can perform High Accuracy measurement on special finishes, even on curved surfaces.
Category : Color Spectrophotometer
Brand : 3NH
SKU : NB041882
Service :The delivery and service By NBCLab.Com

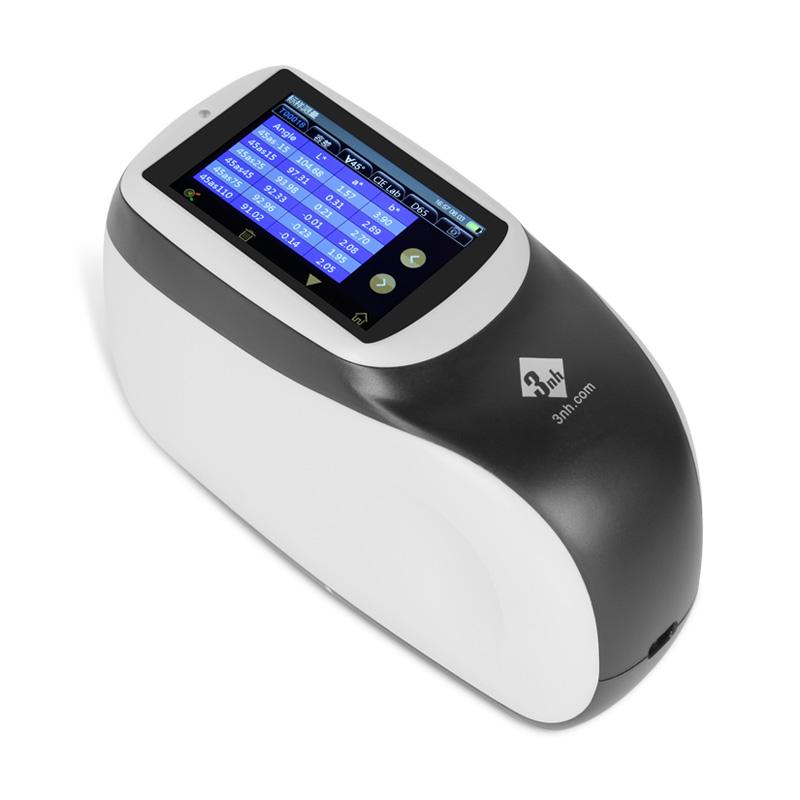

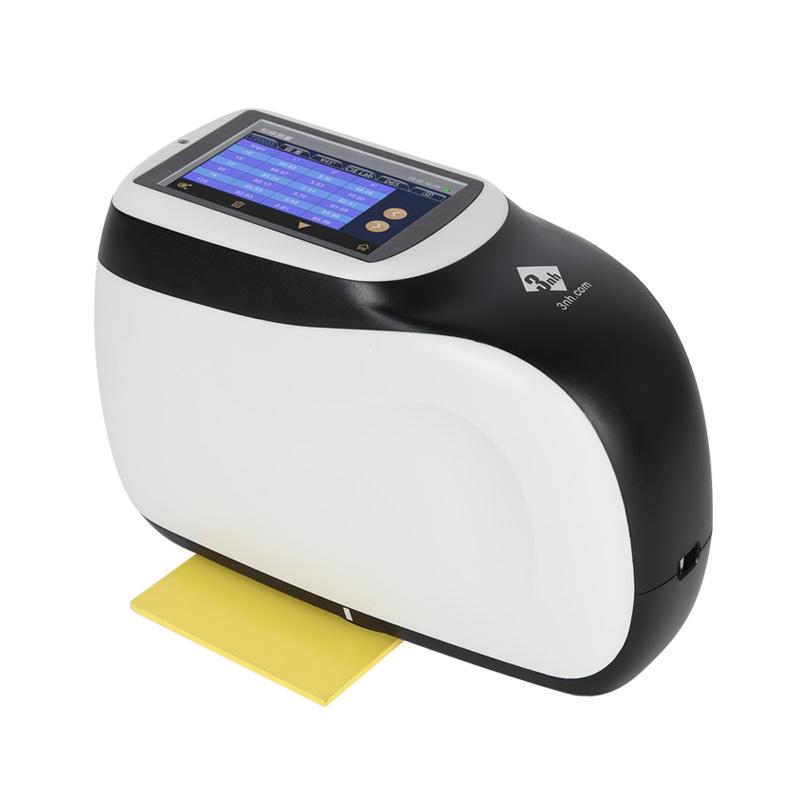

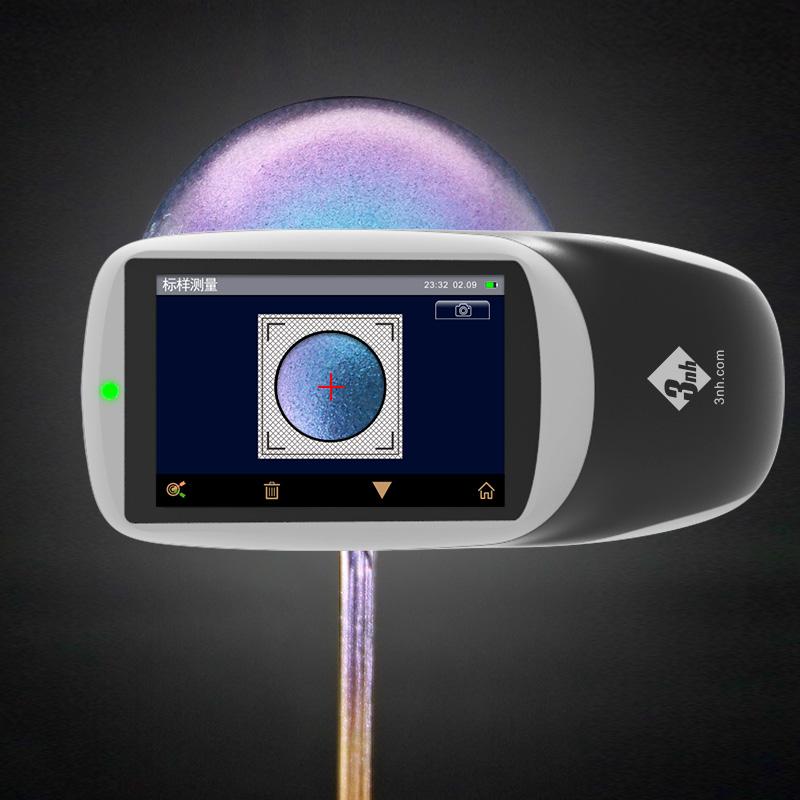

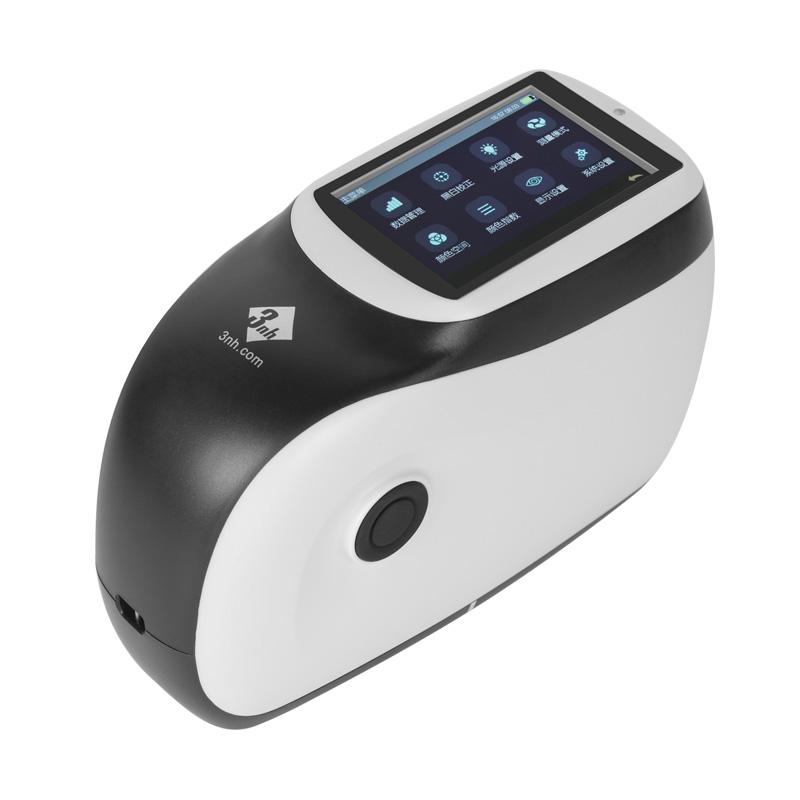

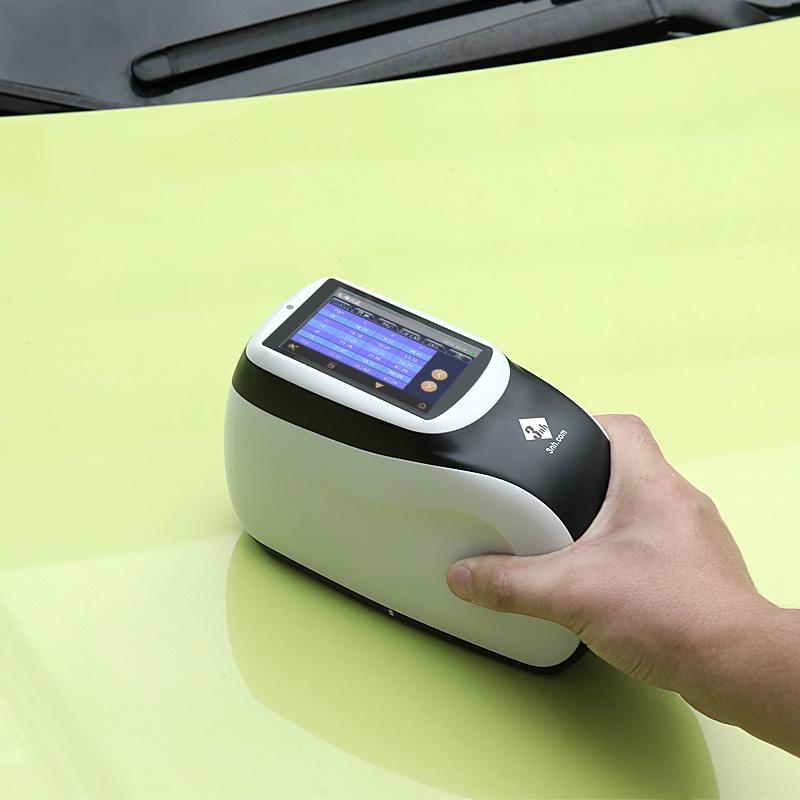

The Kutai MS3006 Multi-Angle Colorimeter uses an industrial-grade MCU and is equipped with 6 Measurement Angles to provide accurate and consistent color measurement for metallic, pearlescent, and other complex special effects Color products. The smooth operating system and superior Optical inspection measurement system allow the MS3006 Multi-Angle Colorimeter to provide repeatability and reproducibility for scintillation, color flash, and granularity measurement. The instrument is used to evaluate the surface Appearance of the effect topcoat is affected by different viewing angles and observation conditions. It can not only measure multi-angle color difference, but also measure and characterize special finishes through 6 Measurement Angles. Measurement accuracy and Stability are also high.
1. Industrial MCU and 6 Measurement Angles 2. Metallic, pearlescent and complex special effect Color measurement 3. Provide repeatability and reproducibility of scintillation, color flash, granularity measurement 4. High Measurement accuracy and Stability on curved surfaces 5. Equipped with smooth operating system and superior Optical inspection measurement system
The MS3006 multi-angle Colorimeter adopts the measurement geometry of 6 Measurement Angles (6 light sources, 1 receiver), and the Color Measurement Angles are 45 ° receivers: 45as-15 °, 45as15 °, 45as25 °, 45as45 °, 45as75 °, 45as110 °. The instrument uses a white full-spectrum LED with blue light enhancement as the illumination light source, and receives the signal by a 256-pixel dual-array CMOS image sensor through concave grating spectroscopy. The measurement wavelength range is 400~ 700nm.
Appearance evaluation, metallic color measurement, pearlescent color measurement, special effect Color measurement
ASTM D 2244、E 308、E 1164、E 2194、E2539、DIN 5033、5036、6174、6175-1、6175-2、ISO 7724、11664-4、SAE J 1545
1. Prepare the sample to be tested 2. Measurement mode and parameter selection 3. Align the instrument measurement caliber to the sample 4. Initiate measurement 5. View and record measurement results
• Ensure that the measurement environment meets requirements • Regularly calibrate instruments to ensure Measurement accuracy • Avoid measurement in a strong light environment Keep the measurement caliber clean • Operate the instrument correctly according to the instructions
[A] No, it isn't. This is the ex-factory price of the product in the Chinese Mainland. In addition to this price, buyers from different countries need to account for additional costs such as shipping fees, tariffs, and others. For specific regional quotes, please consult our customer service or fill out a quotation form.
[A] First, please click on the quotation form on the website and fill in detailed information. Our customer service personnel will then send you a quotation based on your specific country and region, confirming payment and delivery methods. Following this, we proceed with contract signing, payment, and shipment. You can then await delivery.
[A] After-sales repair for overseas instruments is an unavoidable issue. Our repair terms stipulate that the sender is responsible for the shipping and insurance costs incurred for the repair. Repairs within the warranty period are free, while repair costs beyond the warranty period are determined based on the actual situation.
