Overview

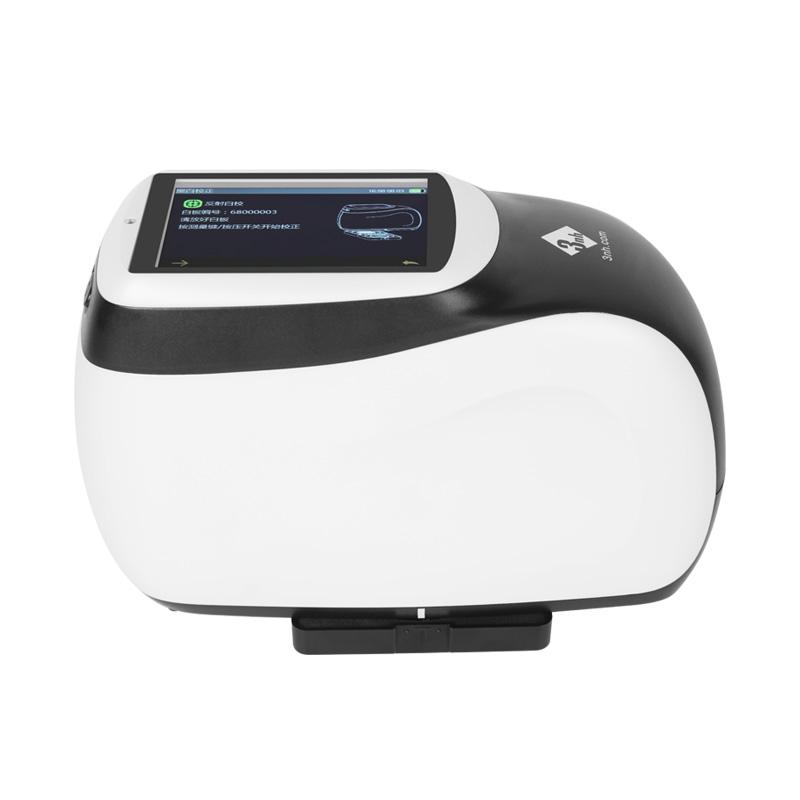

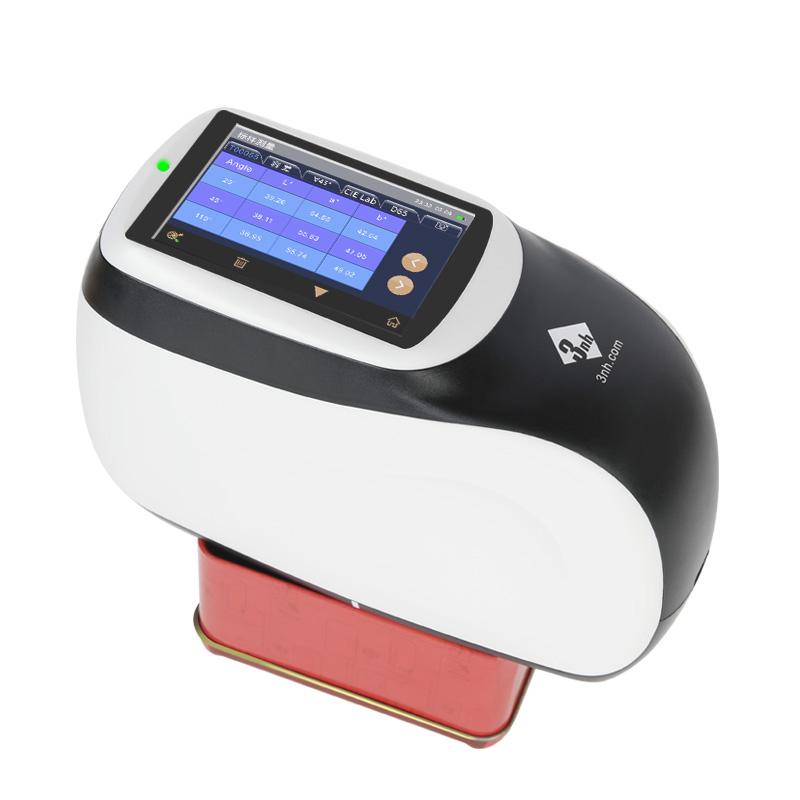

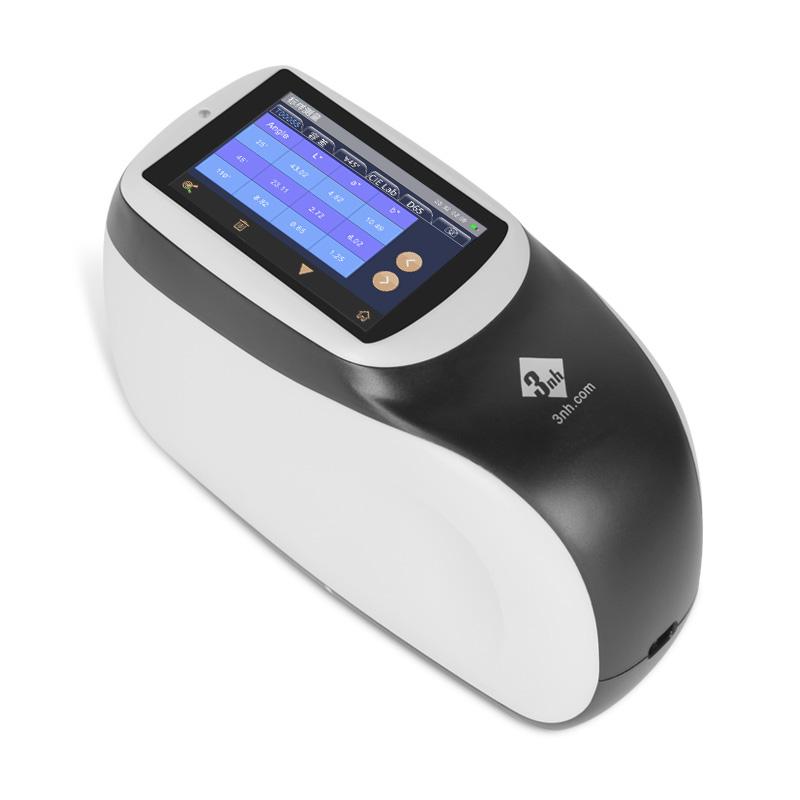

3Nh Multi-Angle Colorimeter Kutai MS3003 is used to evaluate the surface appearance of effect finishes. Affected by different viewing angles and observation conditions, it can provide accurate and consistent color measurement for metallic, pearlescent and other complex special effect Color products. The Kutai MS3003 Multi-Angle Colorimeter uses an industrial-grade MCU and is equipped with 3 Measurement Angles. The MS3003 Multi-Angle Colorimeter performs well in multi-angle color difference measurement with the support of a superior Optical inspection measurement system. Measurement accuracy and Stability are high, even on curved surfaces.
Features
Equipped with 3 Measurement Angles (45as25 °, 45as45 °, 45as110 °)
2. Full Light spectrum LED lighting source enhanced by blue light, up to 5 years or 3 million measurements
3. Concave grating spectroscopy, measurement wavelength range 400~ 700nm
4.256 pixel dual array CMOS image sensor, Measurement accuracy
5. Support multiple Color Spaces and Color difference formulas
6. Short measurement time, about 1 second for a single angle and about 3 seconds for all angles
7. Color Repeatability standard deviation within 0.08%, chromatic value 0.04Delta E * ab

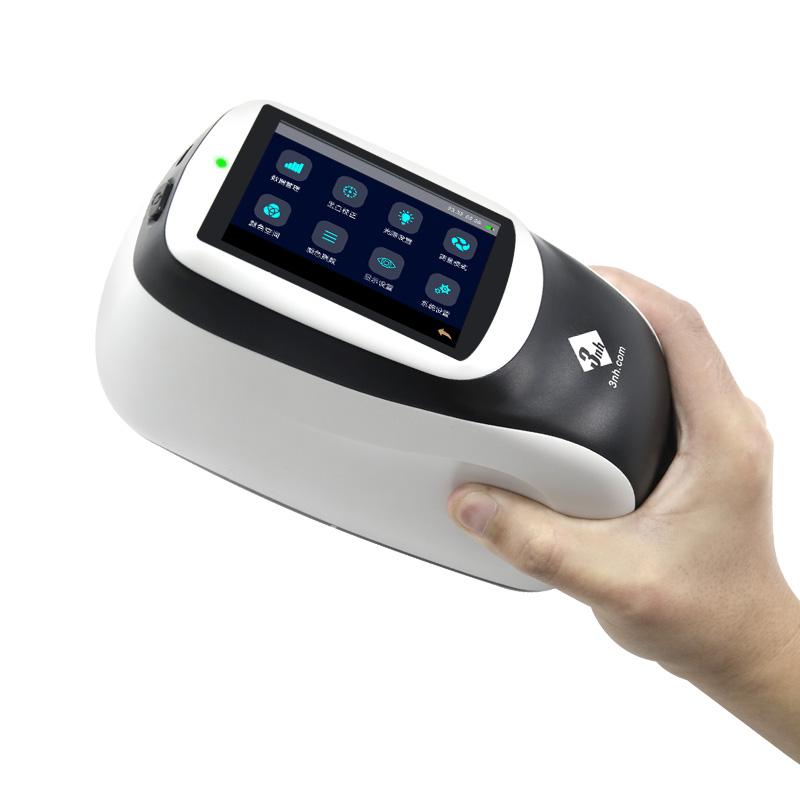

8. Equipped with TFT true color 3.5 inch capacitive touch screen
9. Large data storage capacity, can store 1000 master standards and 4000 samples
10. Support multiple Trigger and Measurement modes
Principle

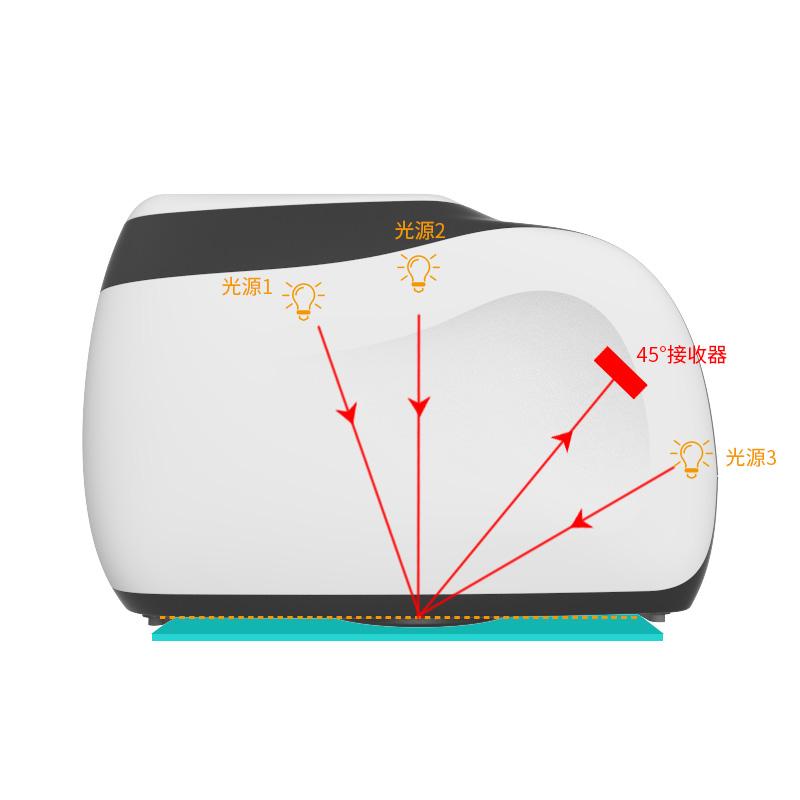

Kutai MS3003 multi-angle Colorimeter adopts the geometric structure of 3 Measurement Angles (3 light sources, 1 receiver), illuminates the surface of the sample through the full Light spectrum LED illumination light source enhanced by blue light, uses concave grating spectroscopy to analyze the reflected light into Light spectrum, and receives and analyzes the Light spectrum data by 256 pixel dual-array CMOS image sensor to calculate the Color parameter and color difference value of the sample.
Applications
Metallic, Pearlescent, Special Effects Color Products, Effect Finishes
Standards
ASTM D 2244、E 308、E 1164、E 2194、E2539、DIN 5033、5036、6174、6175-1、6175-2、ISO 7724、11664-4、SAE J 1545
Steps
1. Turn it on to warm up and calibrate the instrument
2. Measurement mode and parameter selection
3. Preview the positioning measurement area with a color camera
4. Use pressure sensing trigger, button trigger or software trigger for measurement

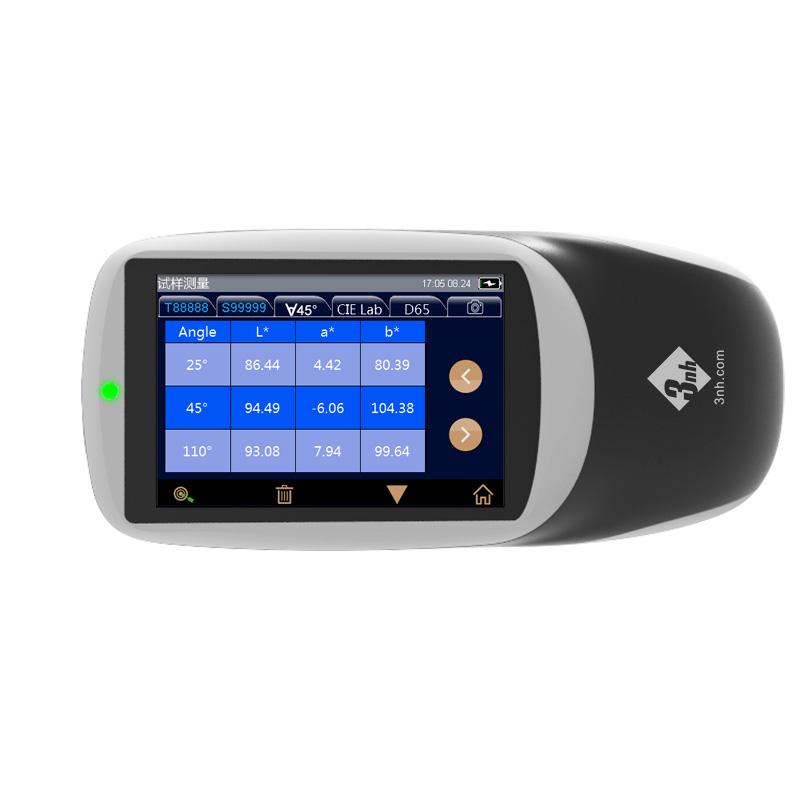

5. View measurement results (Light spectrum/data, sample chromatic value, color difference value/graph, etc.)
6. Save or export measurement data
Notice
• Operating environment temperature should be between 10 ° C and 50 ° C, humidity should not exceed 85%, no condensation
Storage environment temperature should be between -20 ℃ and 50 ℃, humidity should not exceed 85%, no condensation
• Periodic calibrating, calibrating interval can be selected 4 hours, 8 hours, 24 hours or power-on correction
• Make sure the instrument is fully preheated before use
• Avoid use in strong electromagnetic interference environments
• Ensure that the measurement diameter is in full contact with the sample surface during measurement
• After the battery is fully charged, it can be tested 6,000 times continuously within 8 hours, pay attention to timely charging
