Overview

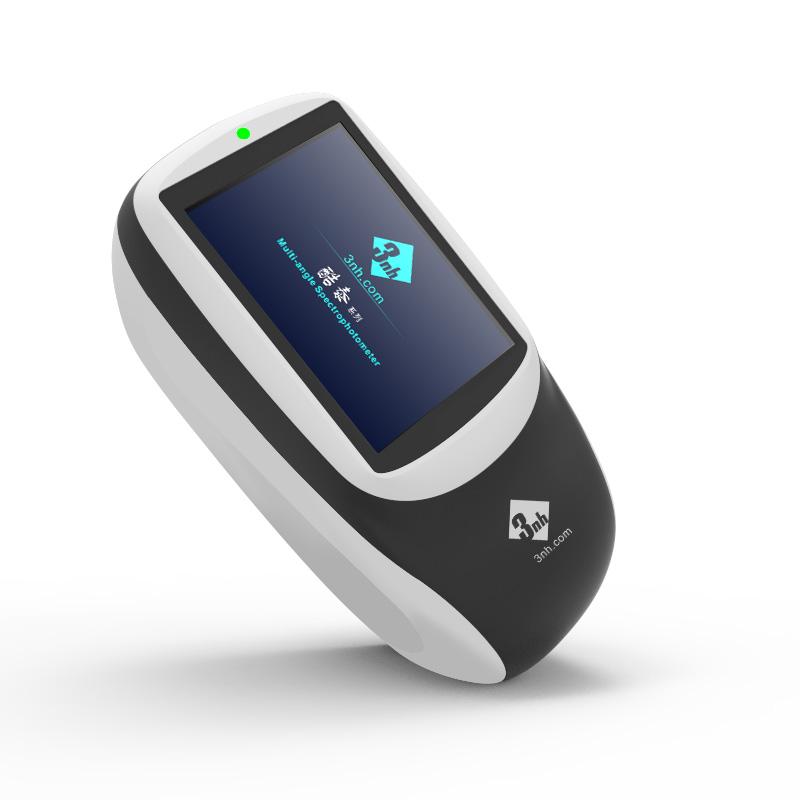

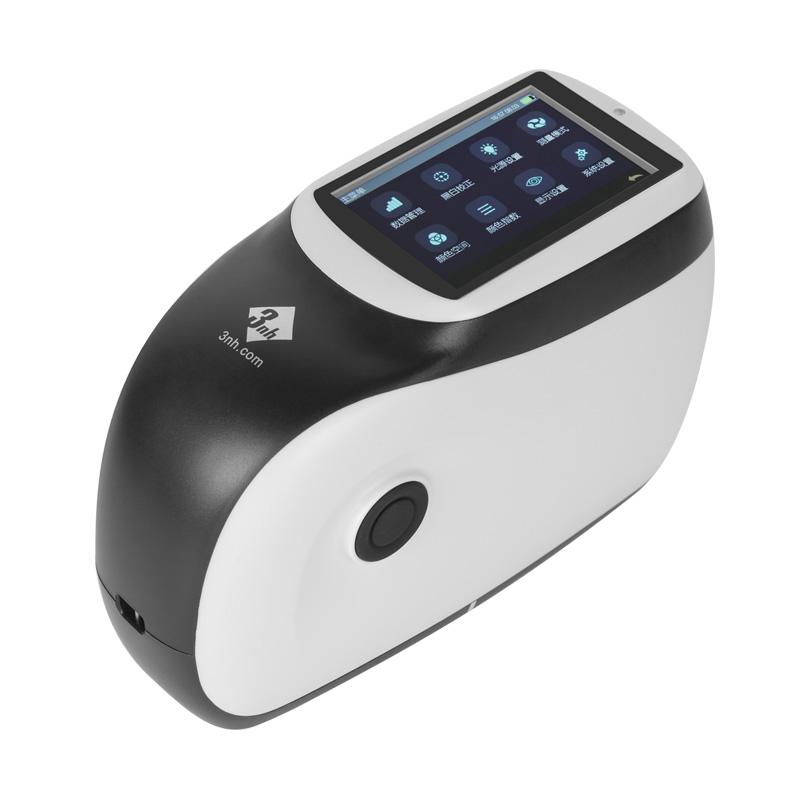

3Nh Multi-Angle Colorimeter Kutai MS3005 is used to evaluate the surface appearance of effect finishes. Affected by different viewing angles and observation conditions, it can provide accurate and consistent color measurement for metallic, pearlescent and other complex special effect Color products. The Kutai MS3005 Multi-Angle Colorimeter uses an industrial-grade MCU and is equipped with 5 Measurement Angles. The MS3005 Multi-Angle Colorimeter performs well in multi-angle color difference measurement with the support of a superior Optical inspection measurement system. Measurement accuracy and Stability are high, even on curved surfaces.
Features
1. Equipped with 5 Measurement Angles, Color Measurement Angles include 45as15 °, 45as25 °, 45as45 °, 45as75 °, 45as110 °.
2. Full Light spectrum LED lighting source enhanced by blue light, with a lifespan of up to 5 years or 3 million measurements.
3. The spectroscopic mode is concave grating spectroscopy, and the sensor adopts 256-pixel dual-array CMOS image sensor.
4. Measurement wavelength range 400~ 700nm, Measurement range 0~ 600%, Half Bandwidth 10nm, measurement diameter φ 12mm.
5. Support a variety of Color spaces and Color difference formulas, including CIE LAB, XYZ, Yxy, LCh, β xy, DIN Lab99, etc.
6. Color Repeatability standard deviation within 0.08%, chromatic value 0.04Delta E * ab.
7. Battery life is long, fully charged within 8 hours can be continuously tested 6000 times.
8. Large data storage capacity, can store 1000 master standards and 4000 samples.
9. Support a variety of Trigger and Measurement modes, positioning mode for color camera preview.
Principle

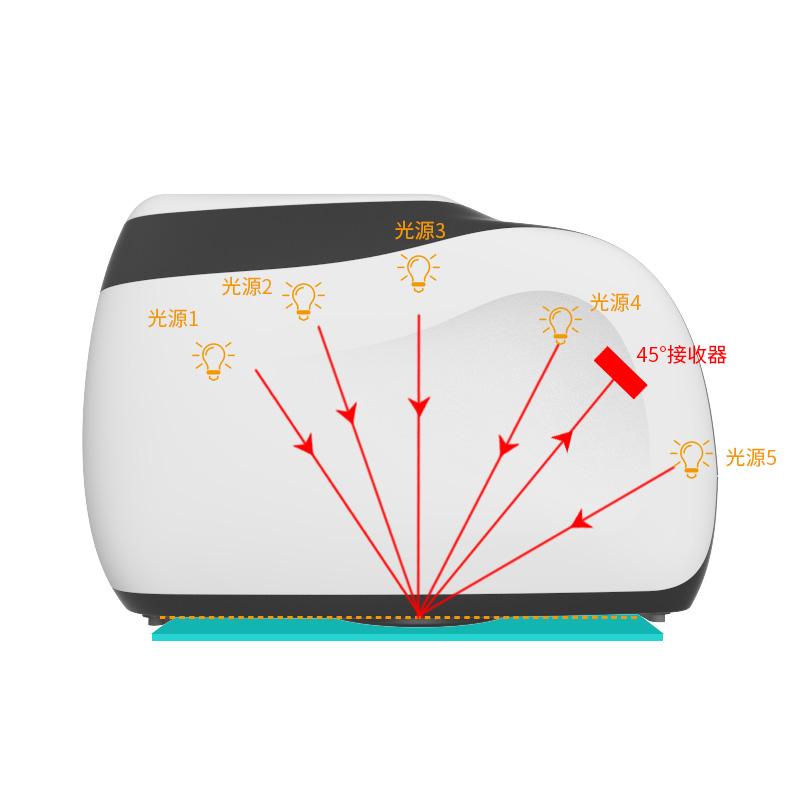

The Kutai MS3005 Multi-angle Colorimeter uses industrial-grade MCU and concave grating spectroscopy technology, equipped with 5 Measurement Angles and blue-enhanced full-light spectrum LED lighting sources. Light spectrum data is captured through a 256-pixel dual-array CMOS image sensor with a measurement wavelength range of 400~ 700nm and a wavelength interval of 10nm to achieve High Accuracy color measurement. The instrument receives reflected light at multiple angles and analyzes the change of Color under different observation conditions to ensure accurate evaluation of special effects Color such as metallic and pearlescent.
Applications

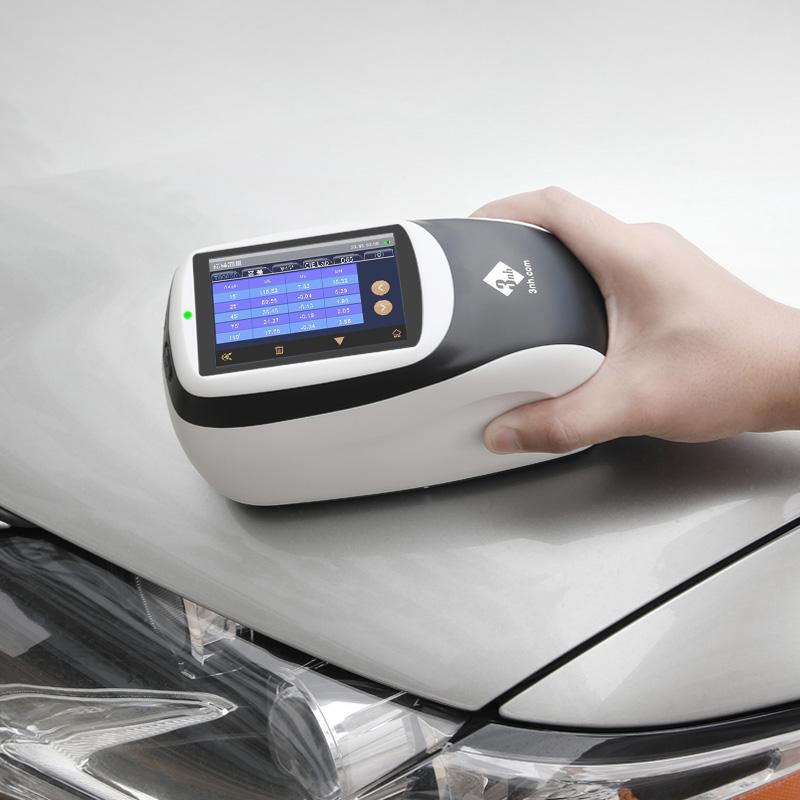

Effect Finishes, Metallic, Pearlescent, Special Effect Color Products
Standards
ASTM D 2244、E 308、E 1164、E 2194、E2539、DIN 5033、5036、6174、6175-1、6175-2、ISO 7724、11664-4、SAE J 1545
Steps
1. Boot preheat and calibrate, you can choose built-in whiteboard parameters or external whiteboard, black light trap.
2. Use the color camera to preview the positioning measurement area.
3. Measurement mode, such as single measurement, average measurement or continuous measurement.
4. Start measurement by pressure sensing trigger, button trigger or software trigger.

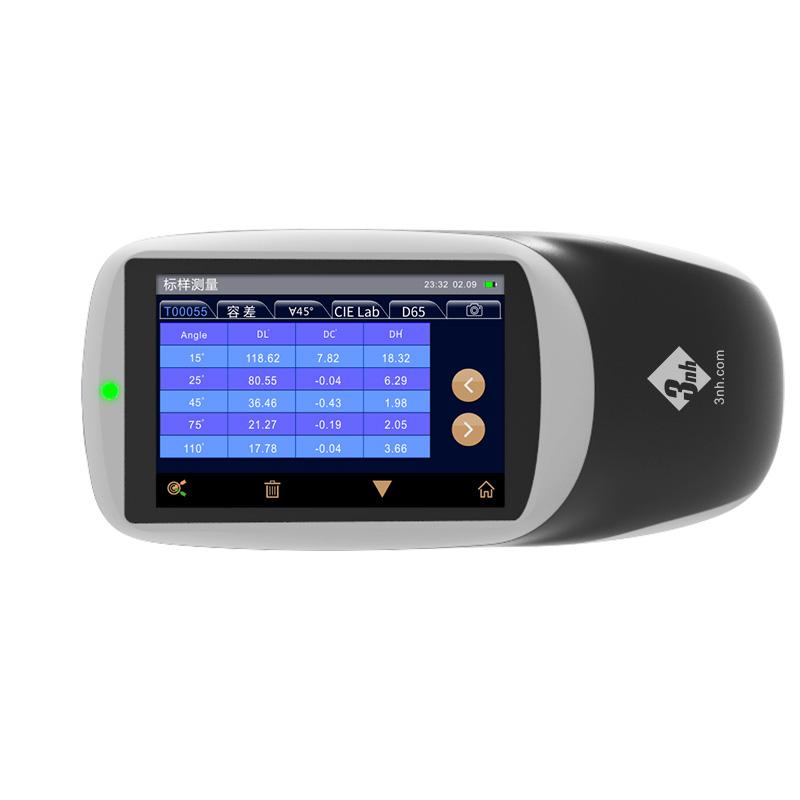

5. After the measurement is complete, view the Light spectrum diagram, data, sample chromatic value, color difference value, pass/fail result or Color simulation in the display mode.
Notice
• The operating environment temperature should be between 10 ° C and 50 ° C, the humidity should not exceed 85%, and there should be no condensation.
Storage environment temperature should be between -20 ℃ and 50 ℃, humidity should not exceed 85%, no condensation.
• Periodic calibrating, calibrating interval can be selected 4 hours, 8 hours, 24 hours or power-on correction.
• Use standard accessories such as power adapters, data cables, calibration boxes, etc. to ensure measurement accuracy.
• Avoid use in extreme environment conditions to prevent affecting instrument performance and life.
