Equipped with 8 Measurement Angles and 6 light sources, the measurement of flicker, color flash and granularity, Color Repeatability up to 0.03Delta E * ab, high surface Measurement accuracy, suitable for special finish characterization.
Category : Color Spectrophotometer
Brand : 3NH
SKU : NB041885
Service :The delivery and service By NBCLab.Com

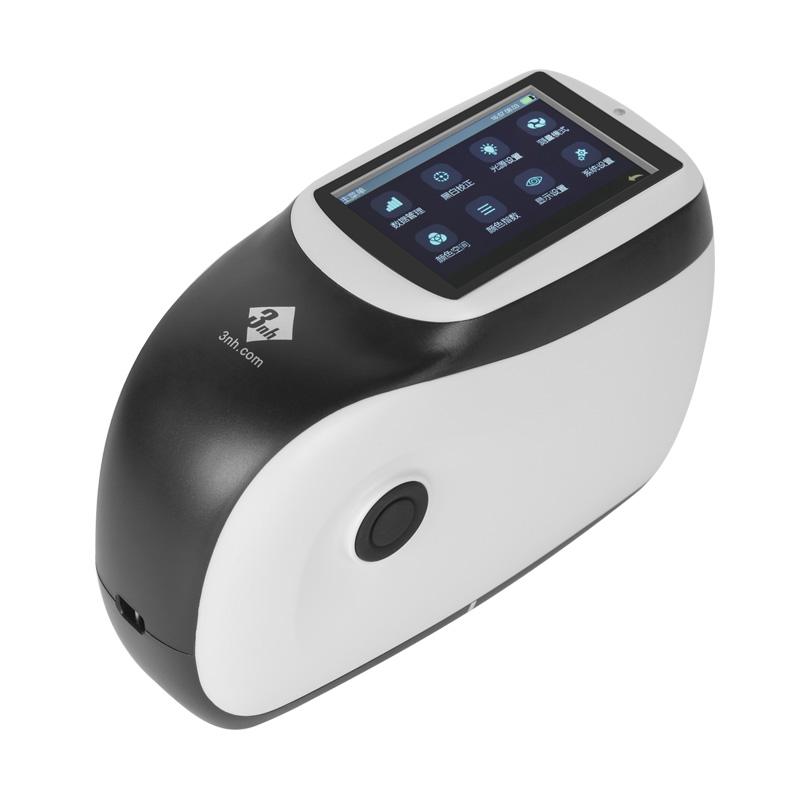

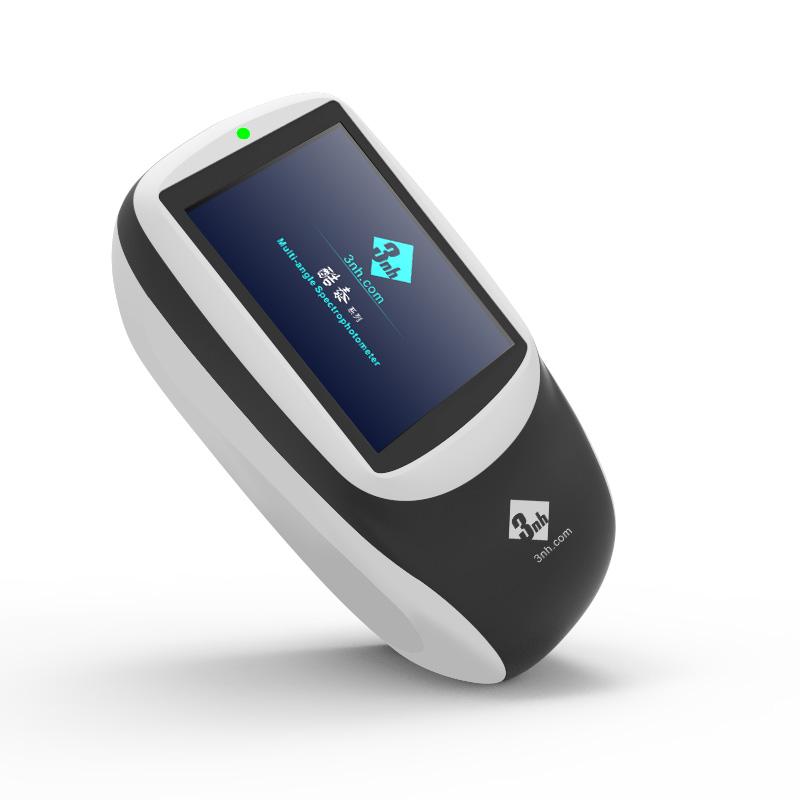

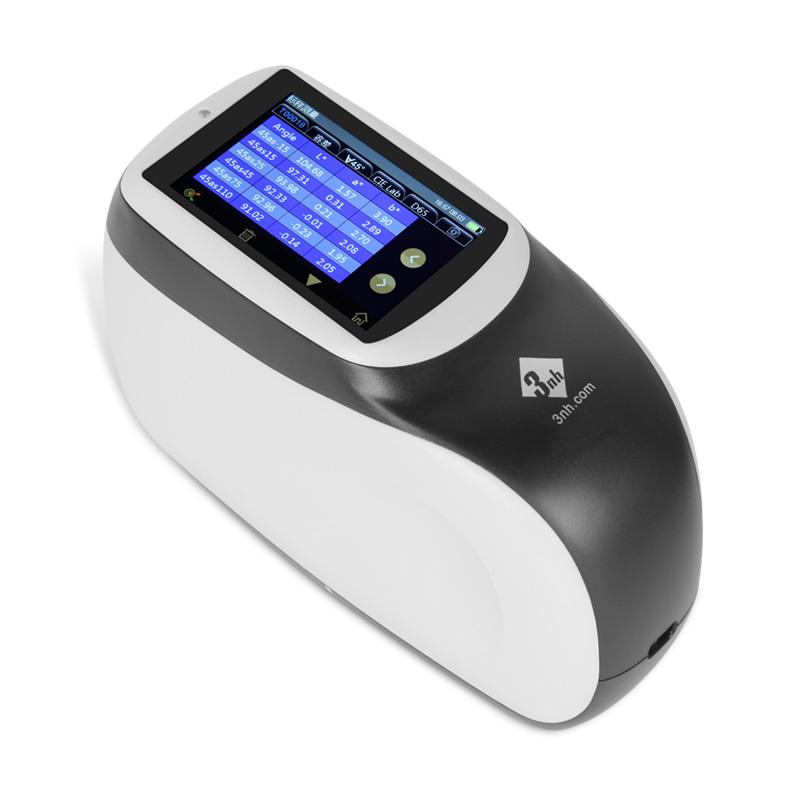

The Kutai MS3008 Multi-Angle Colorimeter uses an industrial-grade MCU and is equipped with 8 Measurement Angles to provide accurate and consistent color measurement for metallic, pearlescent, and other complex special effects Color products. The smooth operating system and superior Optical inspection measurement system allow the MS3008 Multi-Angle Colorimeter to provide repeatability and reproducibility for scintillation, color flash, and granularity measurement. The instrument is used to evaluate the surface Appearance of the effect topcoat is affected by different viewing angles and observation conditions, which can not only measure multi-angle color difference, but also measure and characterize special finishes through 8 Measurement Angles, even on curved surfaces., also has high Measurement accuracy and Stability.
1. Equipped with 8 Measurement Angles for accurate measurement of metallic, pearlescent and special effect Colors 2. Full Light spectrum LED lighting source with industrial-grade MCU and blue light enhancement, up to 5 years or 3 million measurements 3. Provide repeatability and reproducibility of scintillation, color flash, granularity measurement 4. High Accuracy and Stability in Surface Measurement 5. Support multiple trigger and Measurement modes, including single measurement, average measurement and continuous measurement 6. Equipped with color camera preview positioning function 7. Built-in large-capacity lithium battery, fully charged can be tested 6000 times continuously 8. Support multiple interfaces and data storage, can store 1000 master standards and 4000 samples

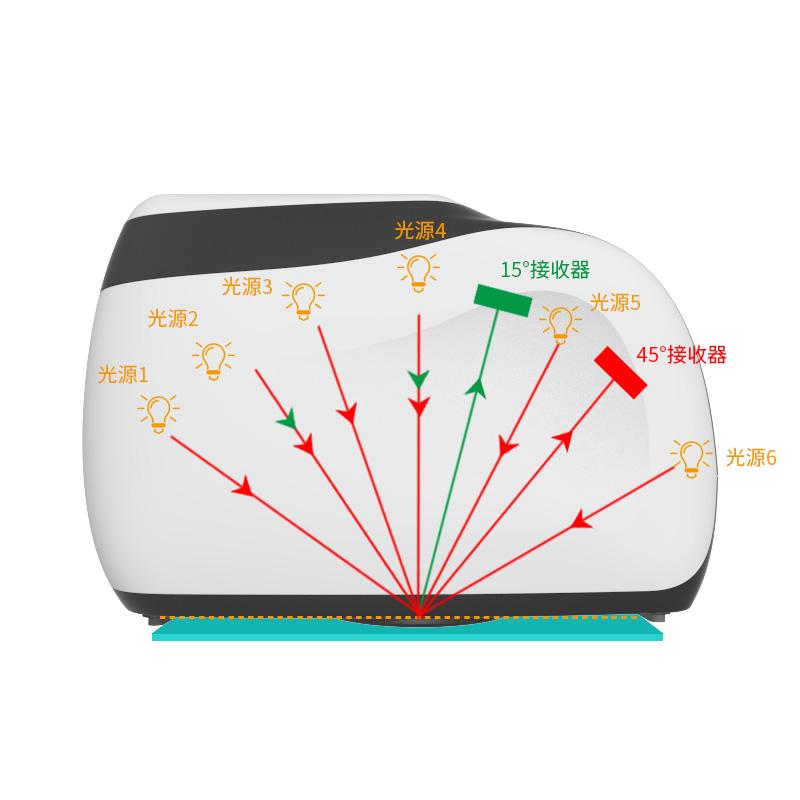

The MS3008 multi-angle Colorimeter uses a concave grating spectroscopy method and uses a 256-pixel dual-array CMOS image sensor for measurement in the wavelength range of 400~ 700nm. The instrument uses a full-light spectrum LED enhanced by blue light as the illumination light source, and performs multi-angle color analysis on the sample through 8 Measurement Angles (including 6 light sources and 2 receivers), which can accurately capture the color and special effect changes at different viewing angles.

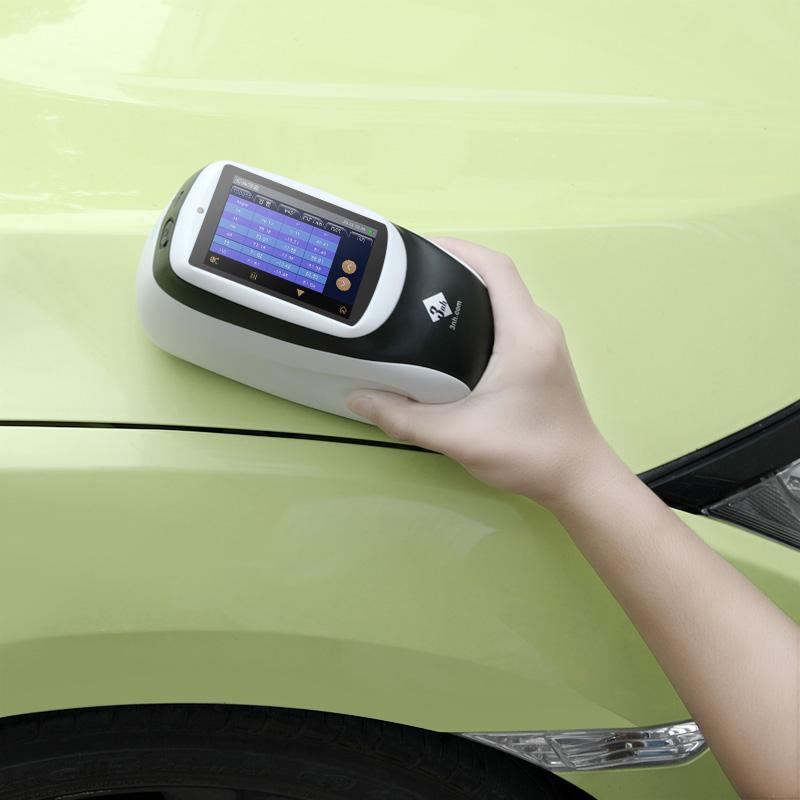

Metallic color measurement, pearlescent color measurement, special effect Color measurement, effect finish surface Appearance evaluation, multi-angle color difference measurement, special finish measurement and characterization
ASTM D 2244、E 308、E 1164、E 2194、E2539、DIN 5033、5036、6174、6175-1、6175-2、ISO 7724、11664-4、SAE J 1545

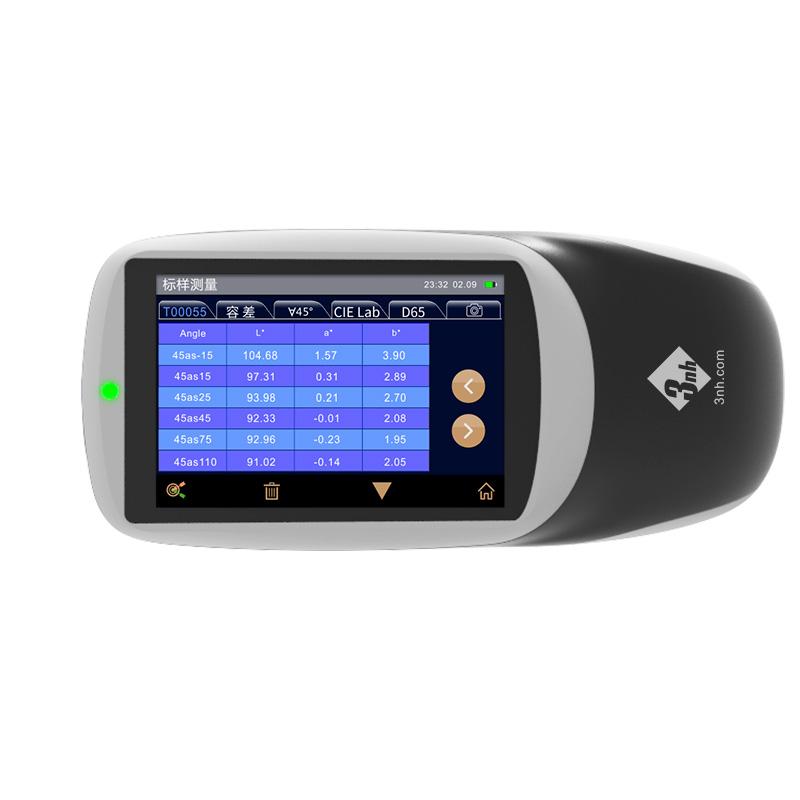

1. Turn on the machine to warm up and perform instrument calibration 2. Preview the positioning measurement area with a color camera 3. Measurement mode (single measurement, average measurement or continuous measurement) 4. Use pressure sensing trigger, button trigger or software trigger to start measurement 5. View measurement results, including Light spectrum, chromatic value, color difference value, etc 6. Save measurement data or export results
• Operating environment temperature should be in the range of 10 ° C to 50 ° C, humidity should not exceed 85% and no condensation Storage environment temperature should be in the range of -20 ° C to 50 ° C, humidity should not exceed 85% and no condensation • Regularly calibrate the instrument, choose the built-in whiteboard parameters, external whiteboard, black light trap or color board • It is recommended to calibrate the interval according to 4 hours, 8 hours, 24 hours or when booting • When measuring, ensure that the measurement aperture is aligned with the measured area to avoid external rays of light interference The battery should be used within 8 hours after charging to ensure the best performance
[A] No, it isn't. This is the ex-factory price of the product in the Chinese Mainland. In addition to this price, buyers from different countries need to account for additional costs such as shipping fees, tariffs, and others. For specific regional quotes, please consult our customer service or fill out a quotation form.
[A] First, please click on the quotation form on the website and fill in detailed information. Our customer service personnel will then send you a quotation based on your specific country and region, confirming payment and delivery methods. Following this, we proceed with contract signing, payment, and shipment. You can then await delivery.
[A] After-sales repair for overseas instruments is an unavoidable issue. Our repair terms stipulate that the sender is responsible for the shipping and insurance costs incurred for the repair. Repairs within the warranty period are free, while repair costs beyond the warranty period are determined based on the actual situation.
