Using 12 Measurement Angles and industrial-grade MCUs, the measurement time is about 1 second/angle, the repeatability is up to 0.02Delta E * ab, and it supports Multi-ParaMeter measurement such as scintillation, color flash, and granularity. Measurement accuracy is high.
Category : Color Spectrophotometer
Brand : 3NH
SKU : NB041887
Service :The delivery and service By NBCLab.Com

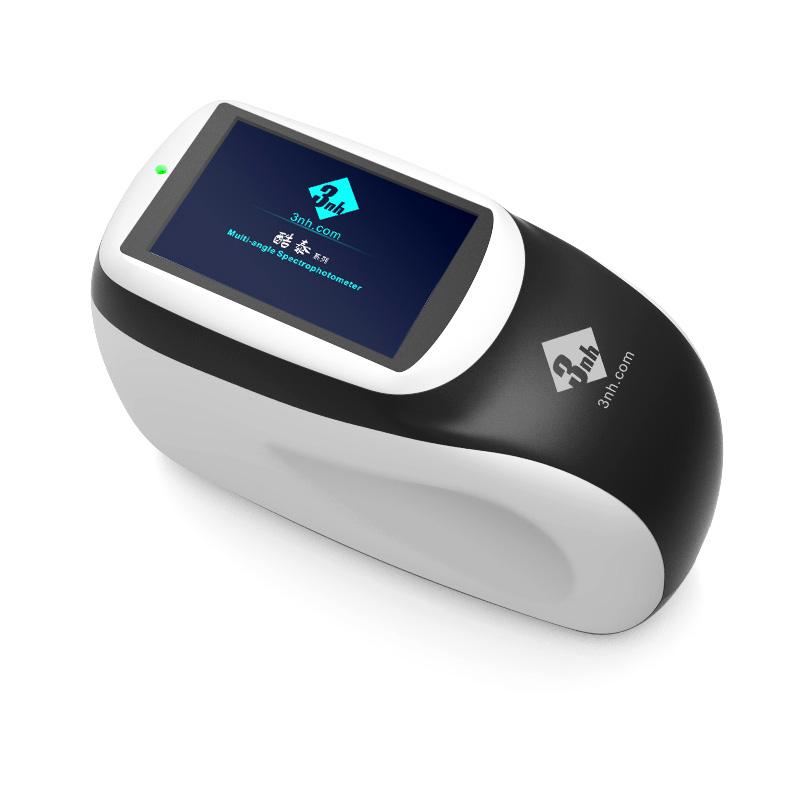

The Kutai MS3012 Multi-Angle Colorimeter uses an industrial-grade MCU and is equipped with 12 Measurement Angles to provide accurate and consistent color measurement for metallic, pearlescent, and other complex special effects Color products. Smooth operating system and excellent performance Optical inspection measurement system allows MS3012 multi-angle Colorimeter to provide repeatability and reproducibility of flicker, color flash, granularity measurement, used to evaluate the effect of the surface of the topcoat. Appearance is affected by different viewing angles and observation conditions. It can not only measure multi-angle color difference, but also through 12 Measurement Angles for measurement and characterization of special finishes. Measurement accuracy and Stability.
1. Equipped with 12 Measurement Angles for measurement of multi-angle color difference and special finishes 2. Full-light spectrum LED lighting source with industrial-grade MCU and blue light enhancement, with a lifespan of up to 5 years 3 million measurements 3. Provide repeatability and reproducibility of scintillation, color flash, granularity measurement 4. High Measurement accuracy and Stability for surface measurement 5. Support a variety of Trigger and Measurement modes, flexible operation 6. Equipped with color camera preview positioning, more accurate measurement 7. Large capacity data storage, can store 1000 master standards and 4000 samples 8. Support multi-language operation interface and multi-interface connection
MS3012 multi-angle Colorimeter uses concave grating spectroscopy technology to carry out spectroscopic measurement in the wavelength range of 400~ 700nm through 256-pixel dual-array CMOS image sensor. The instrument uses 7 light sources and 2 receivers to form 12 Measurement Angles, including 6 angles of 45 ° receiver and 6 angles of 15 ° receiver. Through the reception and analysis of different angles of ray of light, accurate measurement and characterization of special effects such as metallic and pearlescent Color can be achieved.
Metallic color measurement, pearlescent color measurement, special effect Color measurement, effect topcoat surface Appearance evaluation, automotive coatings, industrial coatings, plastic products, cosmetics Encasement
ASTM D 2244、E 308、E 1164、E 2194、E2539、DIN 5033、5036、6174、6175-1、6175-2、ISO 7724、11664-4、SAE J 1545
1. Turn on the machine to warm up and perform instrument calibration 2. Preview the positioning measurement area with a color camera 3. Measurement mode (single measurement, average measurement or continuous measurement) 4. Select the trigger method (pressure sensing trigger, button trigger or software trigger) 5. Perform measurement, single angle measurement time is about 1 second, all angle measurement takes about 12 seconds 6. View measurement results, including Light spectrum, chromatic value, color difference value and other data 7. Save measurement data or export analysis results
• Operating environment temperature should be in the range of 10 ° C to 50 ° C, humidity should not exceed 85% and no condensation Storage environment temperature should be in the range of -20 ° C to 50 ° C, humidity should not exceed 85% and no condensation • Regularly calibrate the instrument, choose 4 hours, 8 hours, 24 hours or power-on calibration interval • Ensure that the instrument is fully preheated before use to obtain accurate measurement results • When measuring, ensure that the measurement surface is clean and free of pollution The battery should be fully charged within 8 hours for optimum performance • Regularly calibrate using standard accessories such as matching calibration box and black light trap
