Overview

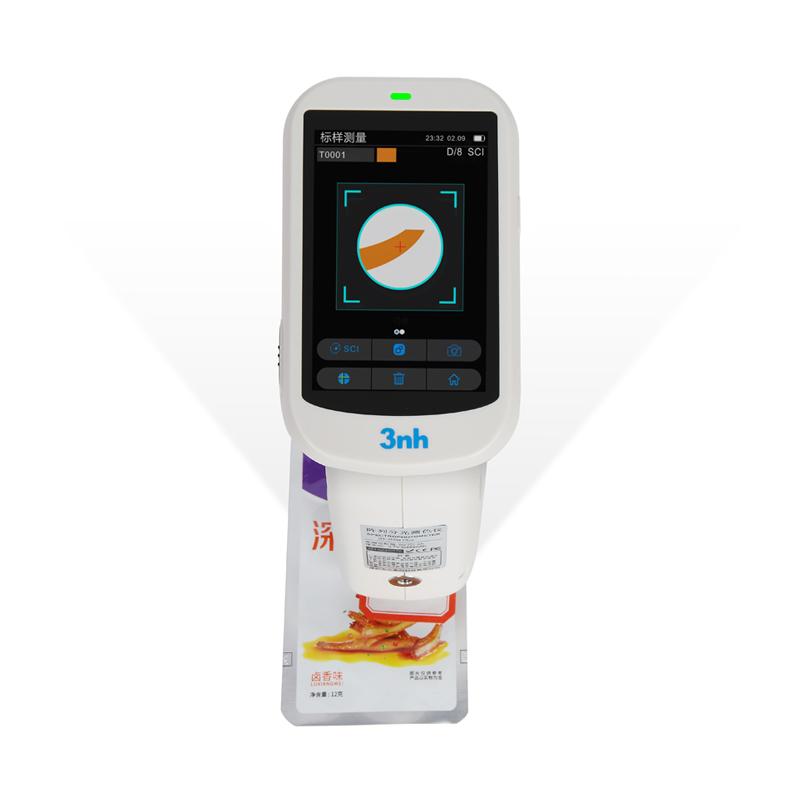

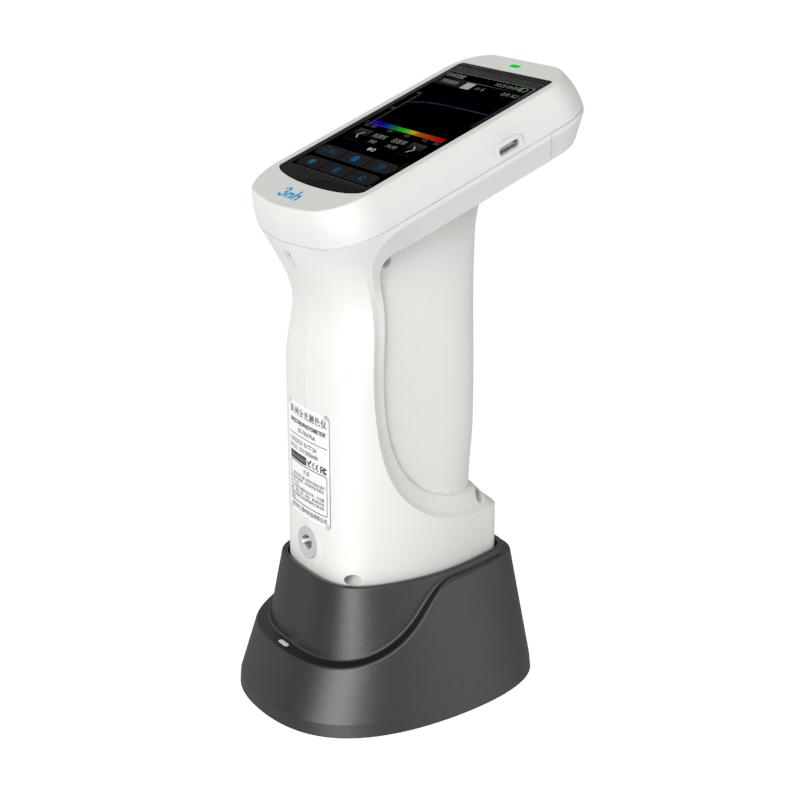

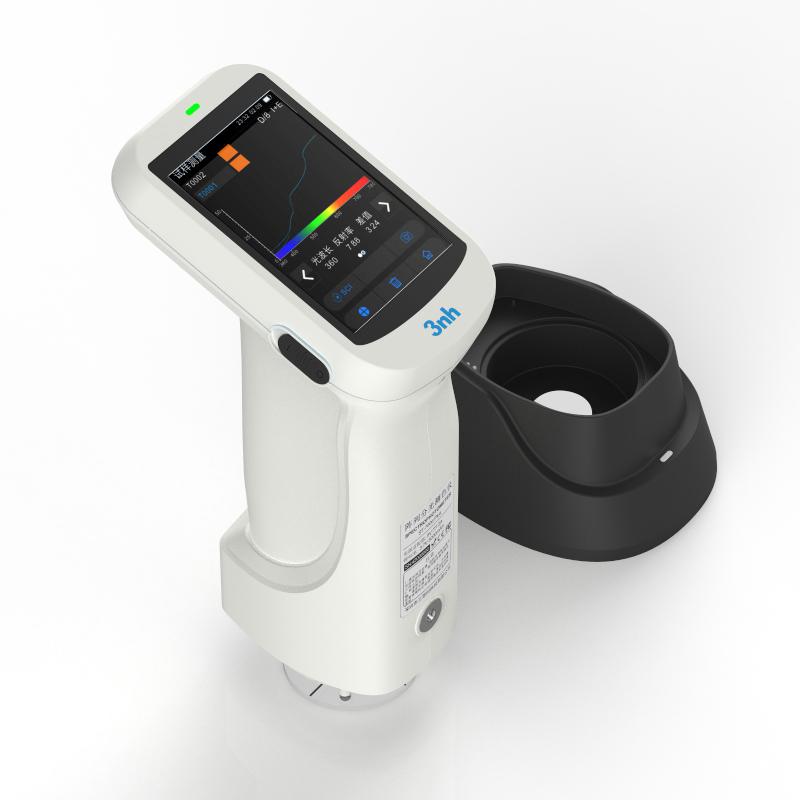

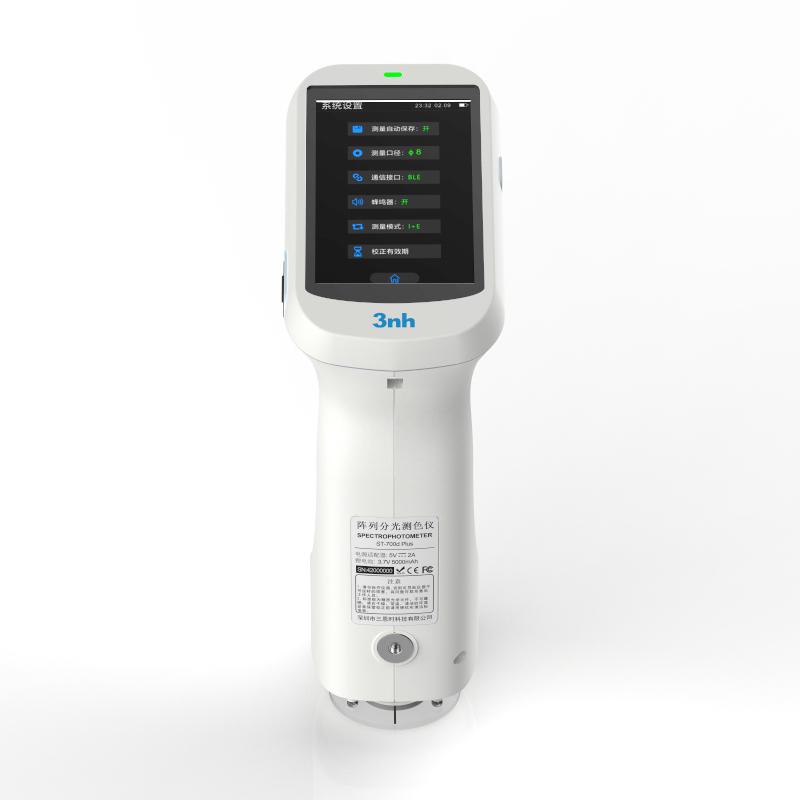

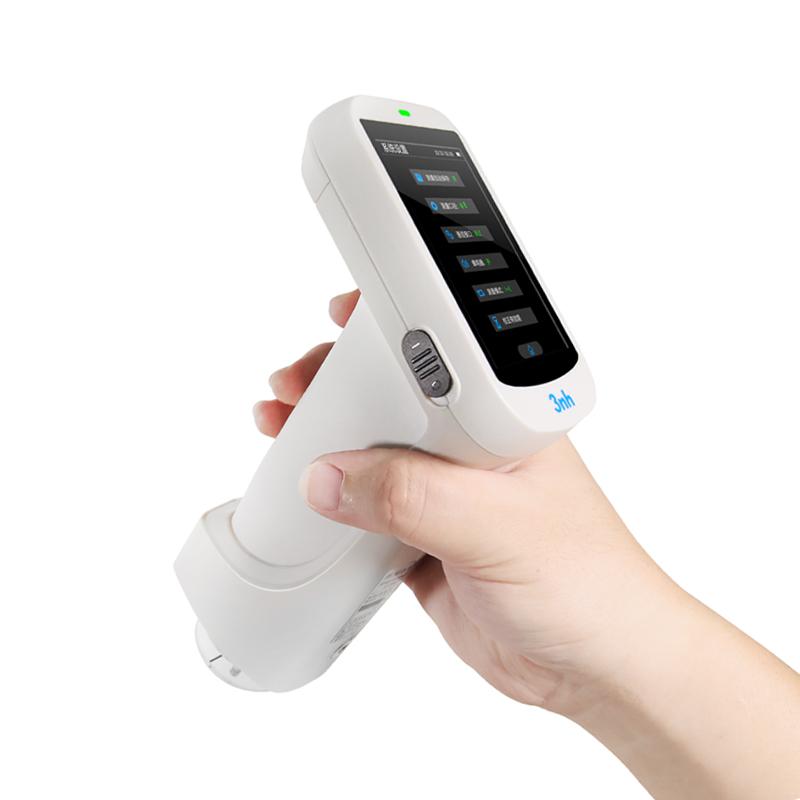

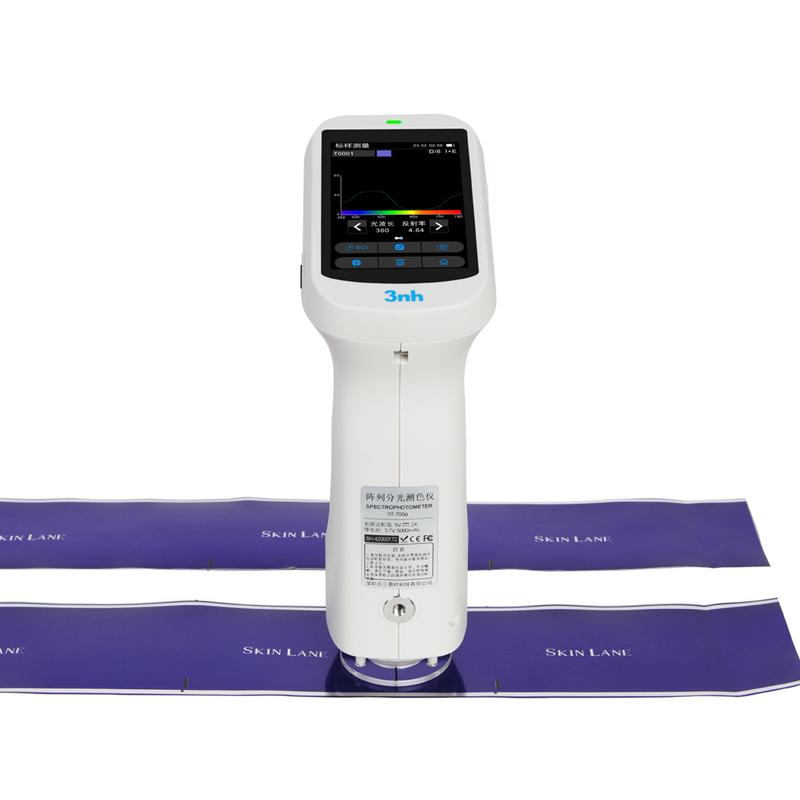

ST-700d is an array Colorimeter developed by 3nh using independent spectroscopic core technology. It adopts built-in large-area silicon photodiode array (double column 40 groups) sensors and industrial-grade MCUs. Strong data processing capabilities ensure the Stability and accuracy of measurement data. Repeatability Delta E * ab is easily controlled within 0.022, and the inter-stage difference Delta E * ab is controlled within 0.2. It can be used for accurate color measurement under various occasions. Large-size touch screen to view measurement results is more convenient. The instrument measurement data is in conformity with other competitors such as Japan, the United States, and Europe. Equipped with three measurement diameters of φ 8mm, φ 4mm and 1x3mm, the adaptability is wider, the measurement Color is accurate, and the performance is stable. It is widely used in plastic electronics, paints Coating, Spinning & weaving printing and dyeing, printing paper products, automobiles, cosmetics and food industries.
Features
1. Adopt large area silicon photodiode array (double row 40 groups) sensor and industrial grade MCU, strong data processing ability
2. Repeatability Delta E * ab is controlled within 0.022, and the inter-station difference Delta E * ab is controlled within 0.2
3. Equipped with three measurement diameters: φ 8mm, φ 4mm, 1x3mm, wide adaptability
4. Large size touch screen, more convenient to view measurement results
5. The measurement data is in conformity with competing products such as Japan, the United States, and Europe
6. Provide a variety of Color Spaces and observation light sources, customizable light sources
7. Simultaneous testing of SCI/SCE, non-contact automatic whiteboard calibration
Battery life: 8500 measurements in 8 hours
9. Lifetime of the lighting source is 10 years, and more than 1.50 million measurements can be made
Principle
ST-700d adopts planar grating spectroscopy, illuminates by combining full-spectrum LED light source and UV light source, adopts D/8 (diffuse illumination, 8 ° direction reception) illumination mode, supports SCI/SCE measurement, including UV/exclusion UV measurement. The sensor adopts a large area silicon photodiode array (double column 40 groups), the measurement wavelength range is 400~ 700nm, the wavelength interval is 10nm, and the reflectance measurement range is 0~ 200%. The instrument realizes accurate color measurement through Light spectrum reflectance analysis.
Applications
Plastic electronics, paints Coating, Spinning & weaving printing and dyeing, printing paper products, automobiles, cosmetics, food, scientific research institutions, laboratories
Standards
CIE No.15、GB/T 3978、GB 2893、GB/T 18833、ISO7724-1、ASTM E1164、DIN5033 Teil7
Steps
1. Boot warm-up
2. Perform non-contact automatic whiteboard verification
3. Select measurement diameter (φ 8mm, φ 4mm or 1x3mm)
4. Use stabilizer positioning or camera viewfinder positioning
5. Measurement mode (single measurement or average measurement 2~ 99 times)
6. Start the measurement and complete in about 1.5 seconds
7. View measurement results via touchscreen
8. Data can be stored or transmitted via USB or Bluetooth
Notice
• Operating environment temperature: 0~ 40 ℃, humidity: 0~ 85% RH (no condensation)
Storage environment temperature: -20~ 50 ℃, humidity: 0~ 85% RH (no condensation)
• The altitude is less than 2000m
• Preheating correction before measurement
• Use the specified calibration box for whiteboard verification
• Avoid operating in a condensation environment
• Regularly check the battery status
• Use original accessories and accessories
