Overview

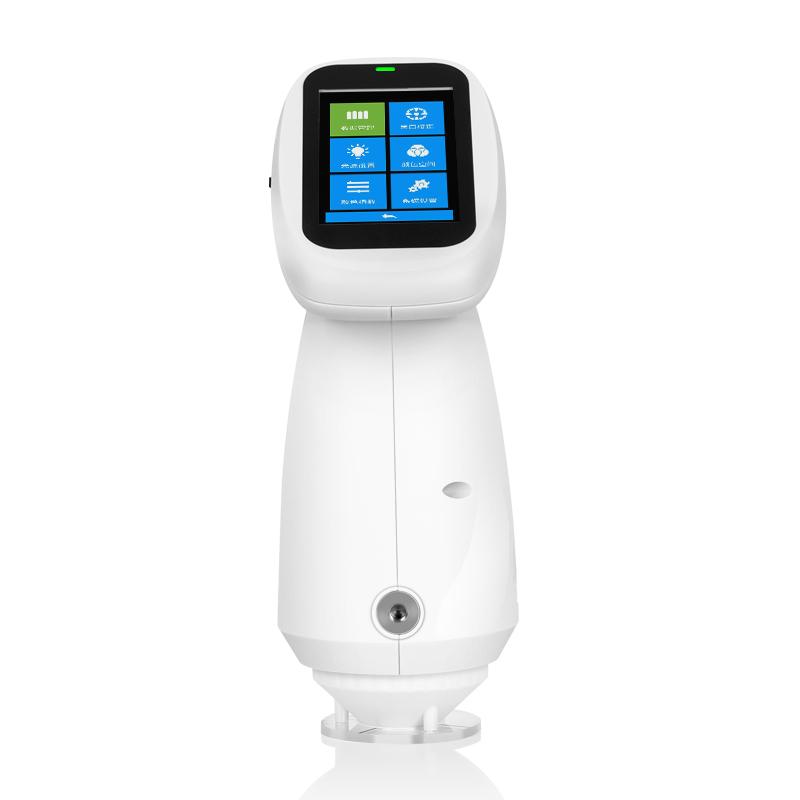

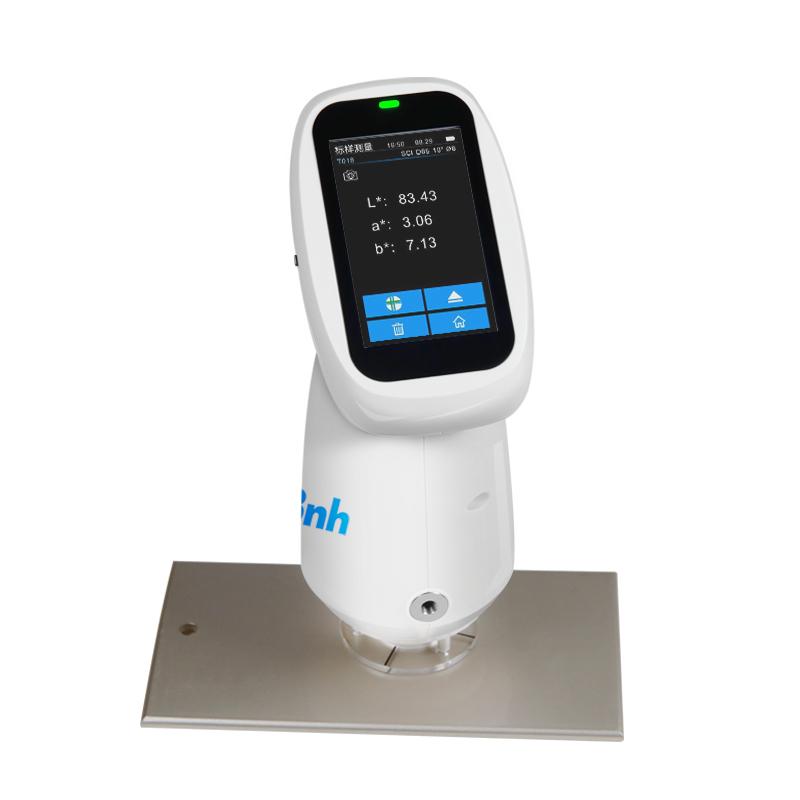

PS2010 "Chubby Girl" color difference meter is developed by using CMOS dual-channel spectroscopic Sensor in 3nh. It is not only a spectroscopic color difference meter, but also a Colorimeter. It has excellent Repeatability and inter-table difference. The measurement data is continuous and stable, accurate and reliable. It is matched with a comfortable and round Appearance shape that makes people love it. It is equipped with quality management software to facilitate quality monitoring and data management. PS2010 color difference meter is equipped with a φ 8mm platform measurement caliber, which is used for color difference quality control in various industries such as plastic electronics, paints inks, Spinning & weaving clothing printing and dyeing, printing, Pottery and porcelain.
Features
1. Adopt the internationally accepted D/8 SCI/SCE synthesis technology
2. Adopt full-band Balanced LED light source
3. CMOS Dual Spectroscopic Sensor
4. Automatic whiteboard verification
5. Color measurement space, a variety of observation light sources
6. Ergonomic design and easy-to-measure devices
7. Measurement verification report
8. Color management software
Principle
PS2010 spectroscopic color difference meter adopts D/8 illumination observation conditions, SCI/SCE synthesis technology, processes color data through CMOS dual-channel spectroscopic Sensor, uses 400~ 700nm full-band Balanced LED as illumination light source, and has sufficient Light spectrum distribution in the visible range to ensure the accuracy of instrument measurement results.
Applications
Plastic electronics, paints inks, Spinning & weaving garment printing, printing, Pottery and porcelain
Standards
CIE No.15、GB/T 3978、GB 2893、GB/T 18833、ISO7724-1、ASTM E1164、DIN5033 Teil7
Steps
1. Perform contact-type automatic whiteboard verification
2. Measurement mode (single measurement or average measurement)
3. Use the stabilizer to locate
4. Start measurement, the measurement time is about 1 second
5. View the displayed Light spectrum graph/data, sample chromatic value, color difference value/graph and other results
Notice
• Operating environment temperature is 0~ 40 ℃, relative humidity 0~ 85% RH (no condensation), altitude is less than 2000m
Storage environment temperature -20~ 50 ℃, relative humidity 0~ 85% RH (no condensation)
• Preheating correction is required before use
• Ensure that the battery is fully charged, lithium Battery life is 8000 measurements within 8 hours
• Avoid using the instrument in condensation conditions
