Overview

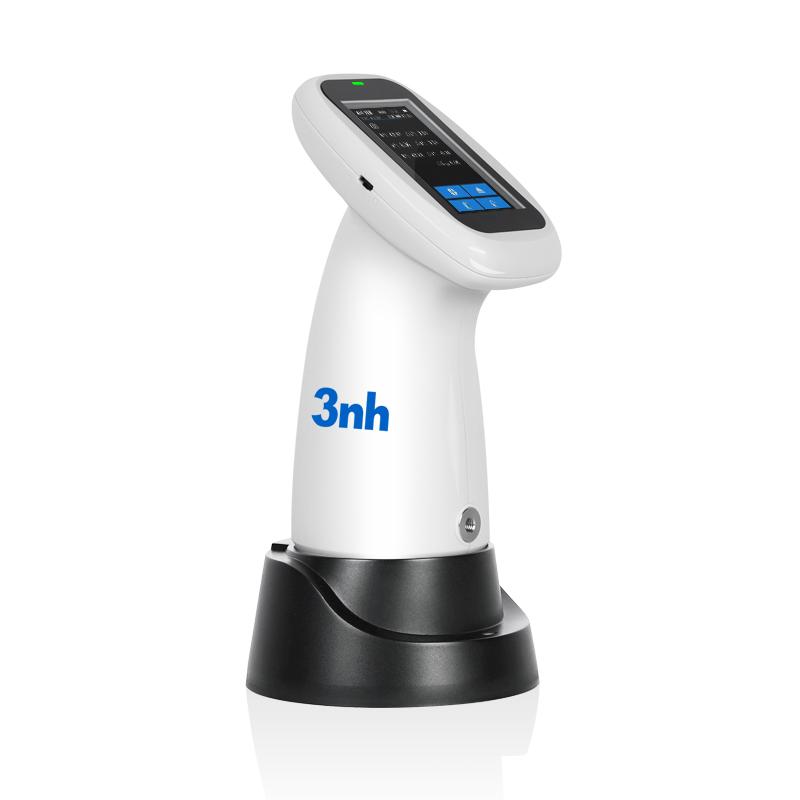

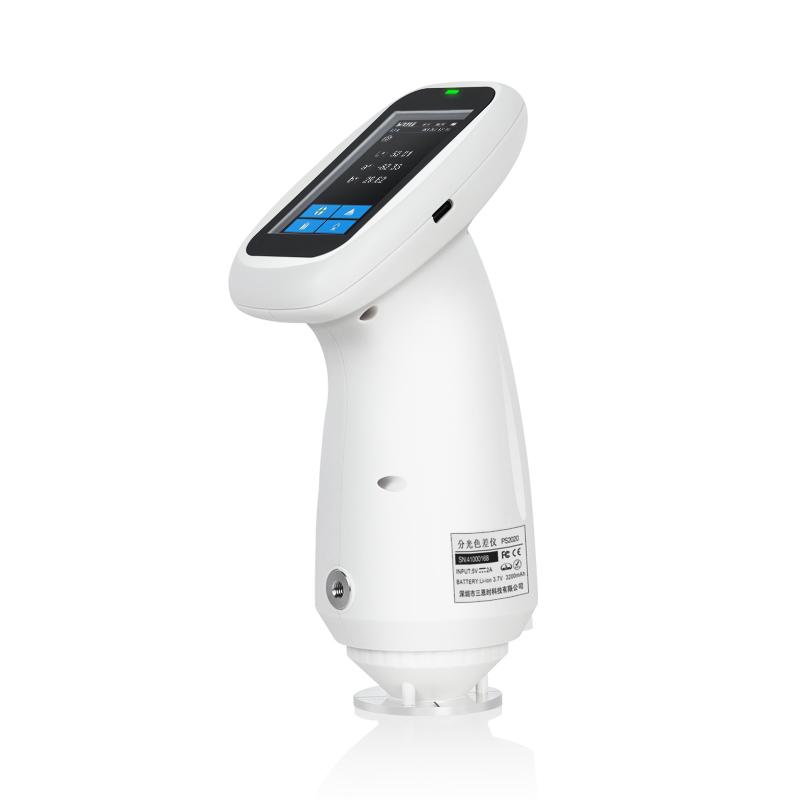

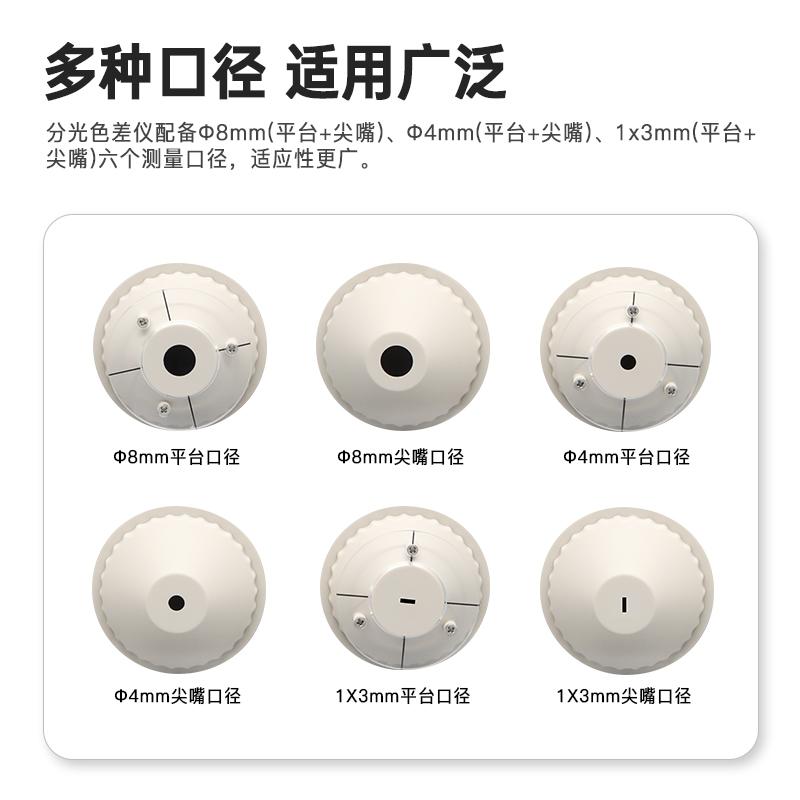

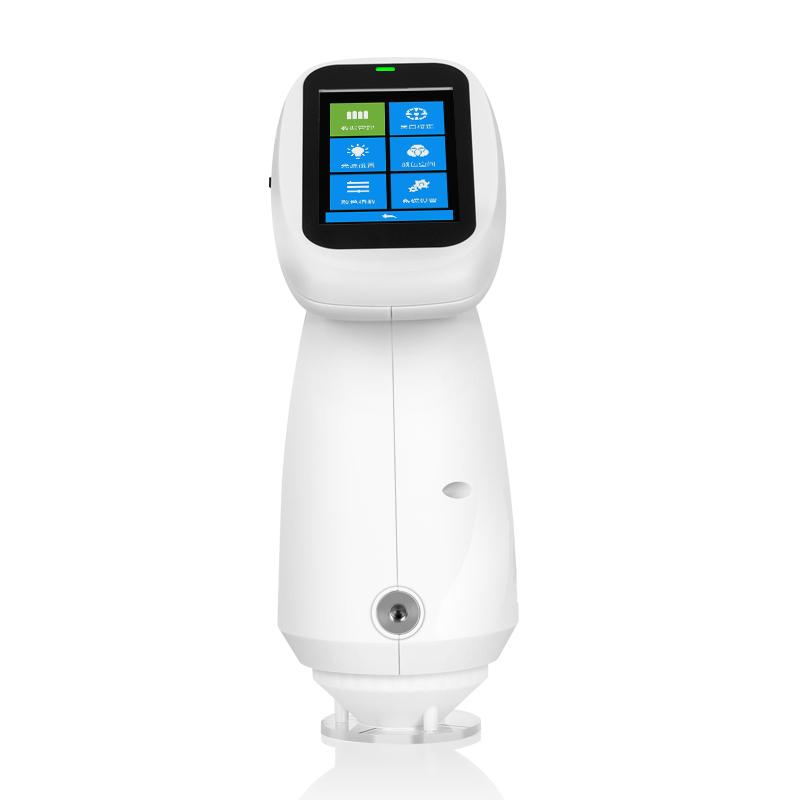

PS2020 "Chubby Girl" color difference meter is a product developed by 3nh using CMOS dual-channel spectroscopic Sensor. It is both a color difference meter and a Colorimeter. It has excellent Repeatability and inter-table difference, and the measurement data is continuous, stable, accurate and reliable. Equipped with φ 4mm platform measurement caliber, it is suitable for color difference quality control in plastic electronics, paints inks, Spinning & weaving clothing printing, printing, Pottery and porcelain industries, with quality management software to support Android, IOS, Windows, Hongmeng system, WeChat Mini Program, color scheme cloud, etc.
Features
1. Adopt the internationally accepted D/8 SCI/SCE synthesis technology
2. Adopt full-band Balanced LED light source
3. CMOS Dual Spectroscopic Sensor
4. Automatic whiteboard verification
5. Color measurement space and observation light source
6. Ergonomic design and easy-to-measure devices
7. Measurement verification report
8. Color management software
Principle
The PS2020 spectroscopic color difference meter adopts D/8 lighting observation conditions, SCI/SCE synthesis technology, processes color data through CMOS dual-channel spectroscopic Sensor, uses full-band Balanced LED light source illumination, and performs measurement in the wavelength range of 400~ 700nm to ensure accurate and reliable data.
Applications
Plastic electronics, paints inks, Spinning & weaving garment printing, printing, Pottery and porcelain
Standards
CIE No.15、GB/T 3978、GB 2893、GB/T 18833、ISO7724-1、ASTM E1164、DIN5033 Teil7
Steps
1. Preheating calibration instrument

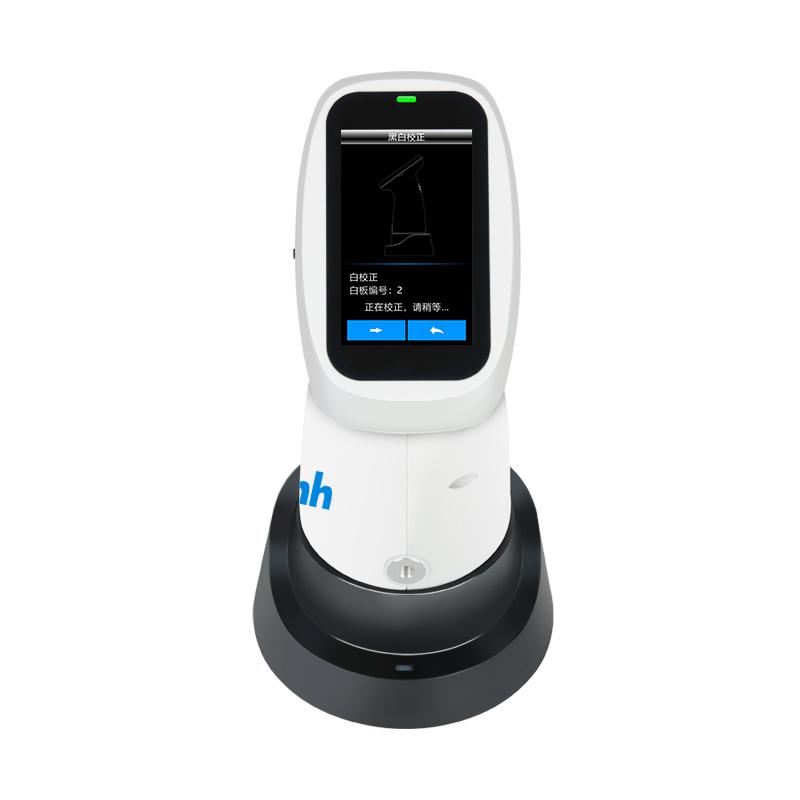

2. Perform contact automatic whiteboard verification
3. Measurement mode and parameter selection

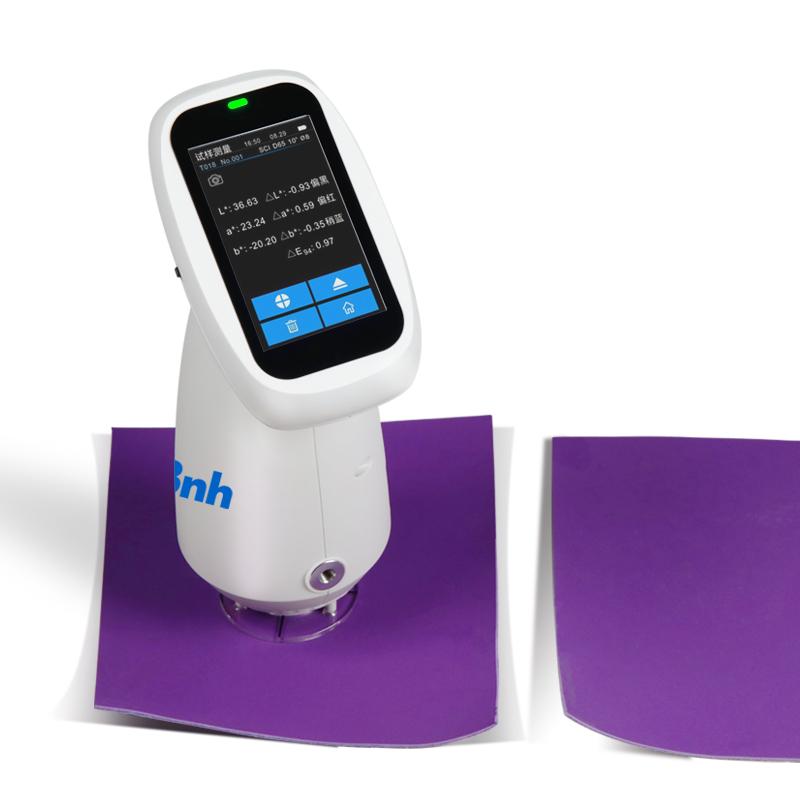

4. Use the stabilizer to position the measurement sample
5. Single or average measurement (2 to 99 times)
6. View and store data
Notice
• Operating environment temperature 0~ 40 ℃, humidity 0~ 85% RH (no condensation)
Storage environment temperature -20~ 50 ℃, humidity 0~ 85% RH (no condensation)
• Use at altitudes below 2000m
Avoid operating and storing in extreme environments
Perform regular whiteboard checks to ensure accuracy
