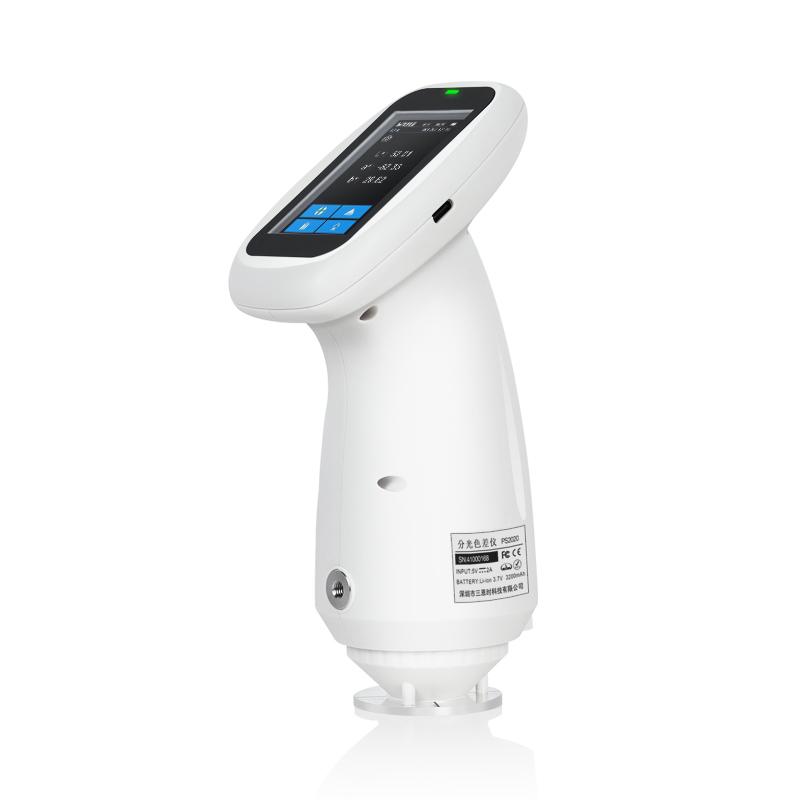

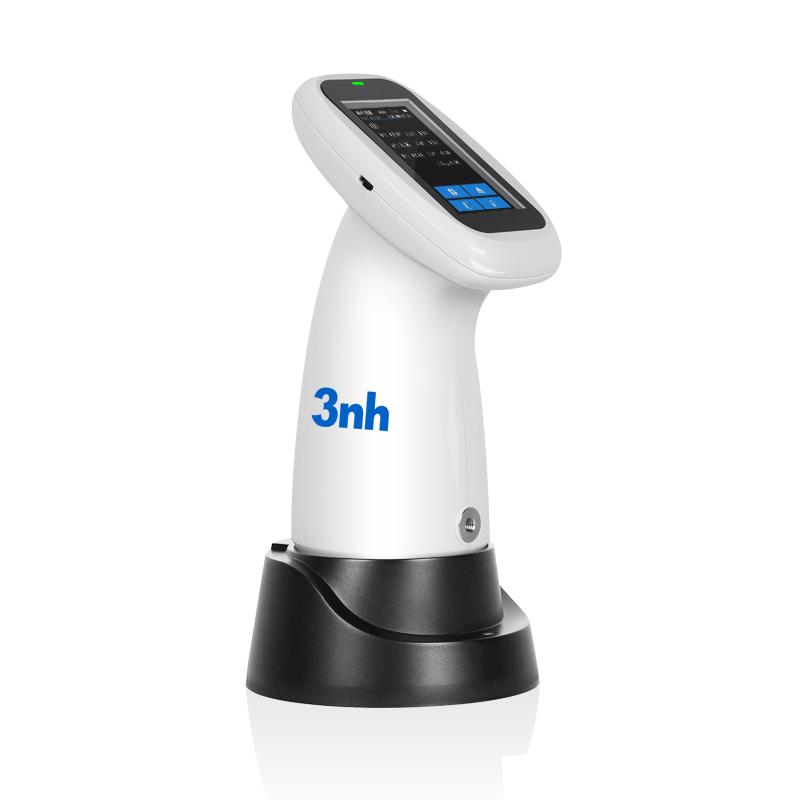

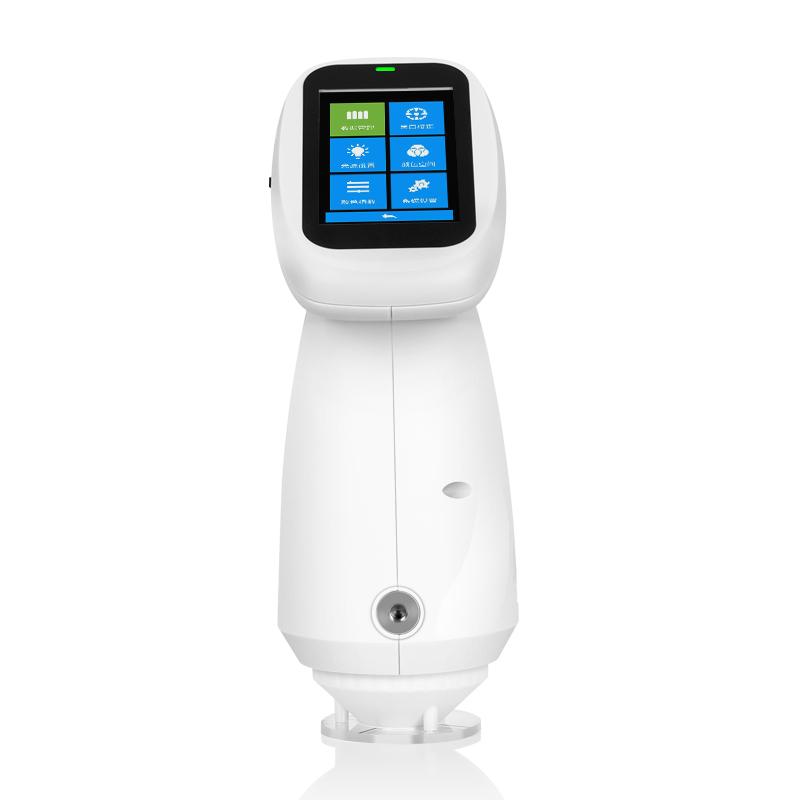

Overview
PS2030 "chubby girl" color difference meter is developed by 3nh using CMOS dual-channel spectroscopic Sensor. It is not only a spectroscopic color difference meter, but also a Colorimeter. It has excellent Repeatability and inter-table difference, and the measurement data is continuously stable, accurate and reliable. Equipped with MAV: φ 8mm/φ 10mm platform + pointed nozzle measurement diameter, it is used for color difference quality control in various industries such as plastic electronics, paints inks, Spinning & weaving clothing printing and dyeing, printing, Pottery and porcelain.
Features
1. Adopt the internationally accepted D/8 SCI/SCE synthesis technology
2. Adopt full-band Balanced LED light source
3. CMOS Dual Spectroscopic Sensor
4. Automatic whiteboard verification
5. Color measurement space, a variety of observation light sources
6. Ergonomic design and easy-to-measure devices
7. Measurement verification report
8. Color management software
Principle
Using D/8 lighting observation conditions, SCI/SCE synthesis technology, using 400~ 700nm full-band equalized LED as lighting source, color data collection and processing are carried out through CMOS dual-channel spectroscopic Sensor.
Applications
Plastic electronics, paints inks, Spinning & weaving garment printing, printing, Pottery and porcelain
Standards
CIE No.15、GB/T 3978、GB 2893、GB/T 18833、ISO7724-1、ASTM E1164、DIN5033 Teil7
Steps

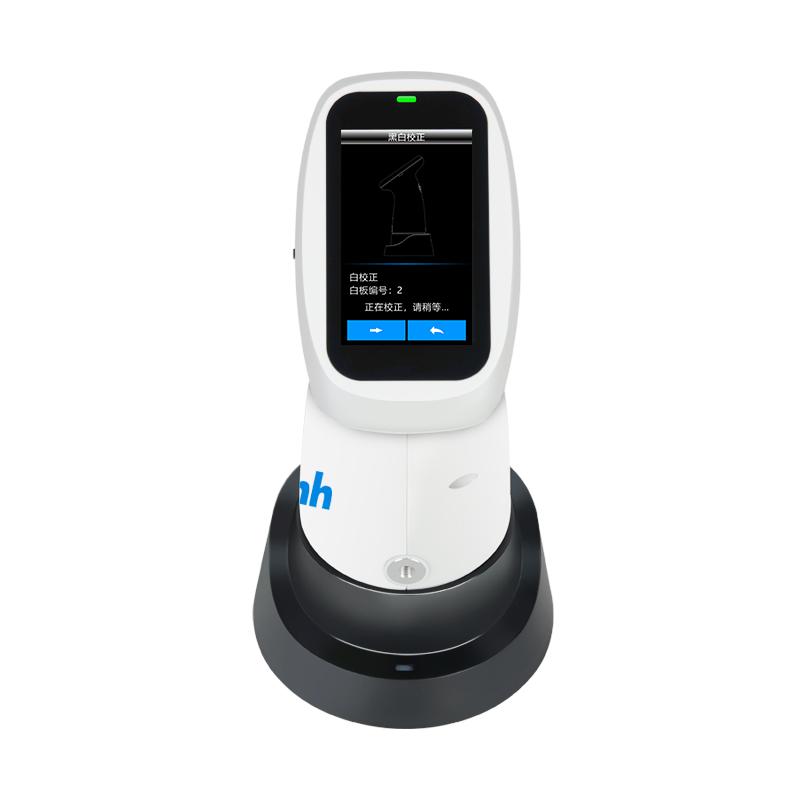

1. Use smart calibrating base for contact automatic whiteboard calibration
2. Select measurement caliber and Measurement mode

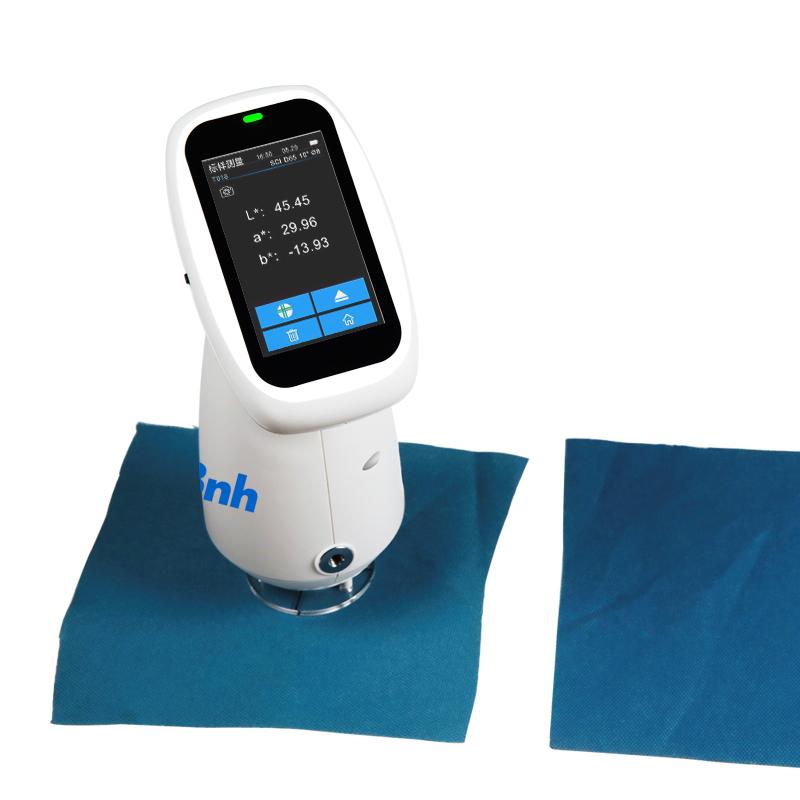

3. Position the sample for measurement
4. View the measurement results through the display screen
5. Use quality management software for data management and analysis
Notice
• Operating environment temperature is 0~ 40 ℃, relative humidity 0~ 85% RH (no condensation)
• The altitude is less than 2000m
Storage environment temperature -20~ 50 ℃, relative humidity 0~ 85% RH (no condensation)
• Regular whiteboard calibration to ensure measurement accuracy
• Automatic calibration with matching calibration base
