Overview

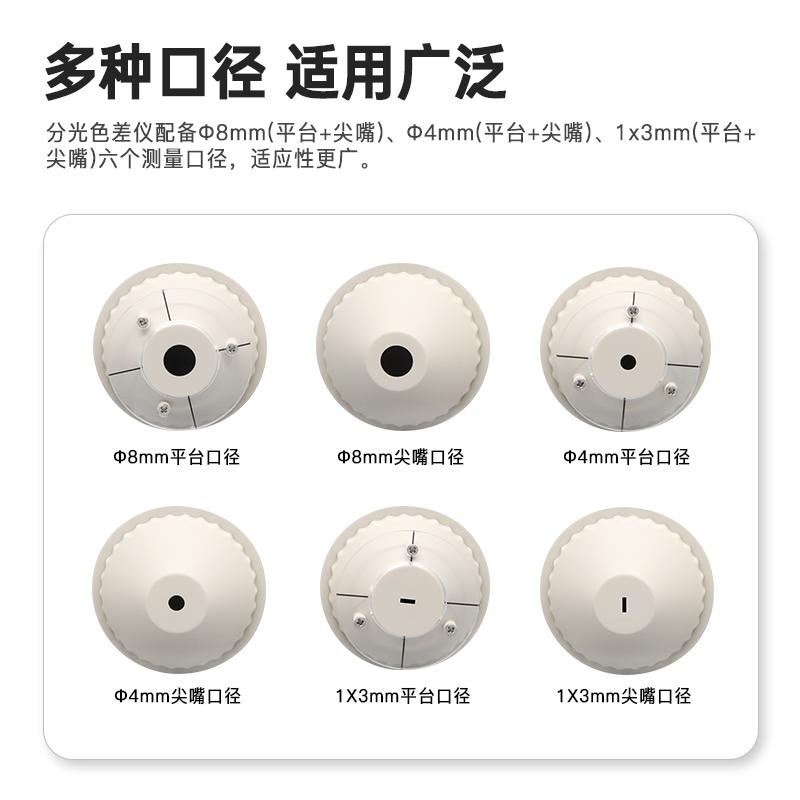

PS2050 "Chubby Girl" color difference meter is a 3nh China spectroscopic color difference meter developed with CMOS dual-channel spectroscopic Sensor. It has excellent Repeatability and inter-table difference, and the measurement data is continuously stable, accurate and reliable. Equipped with MAV: φ 8mm/φ 10mm, SAV: φ 4mm/φ 5mm platform measurement caliber, wider adaptability, used for plastic electronics, paints inks, Spinning & weaving clothing printing and dyeing, printing, Pottery and porcelain and other industries for color difference quality control, including UV can be used for measurement of fluorescent samples.
Features
1. Adopt the internationally accepted D/8 SCI/SCE synthesis technology
2. Adopt full-band Balanced LED light source
3. CMOS Dual Spectroscopic Sensor
4. Automatic whiteboard verification
5. Color measurement space, a variety of observation light sources
6. Ergonomic design and easy-to-measure devices

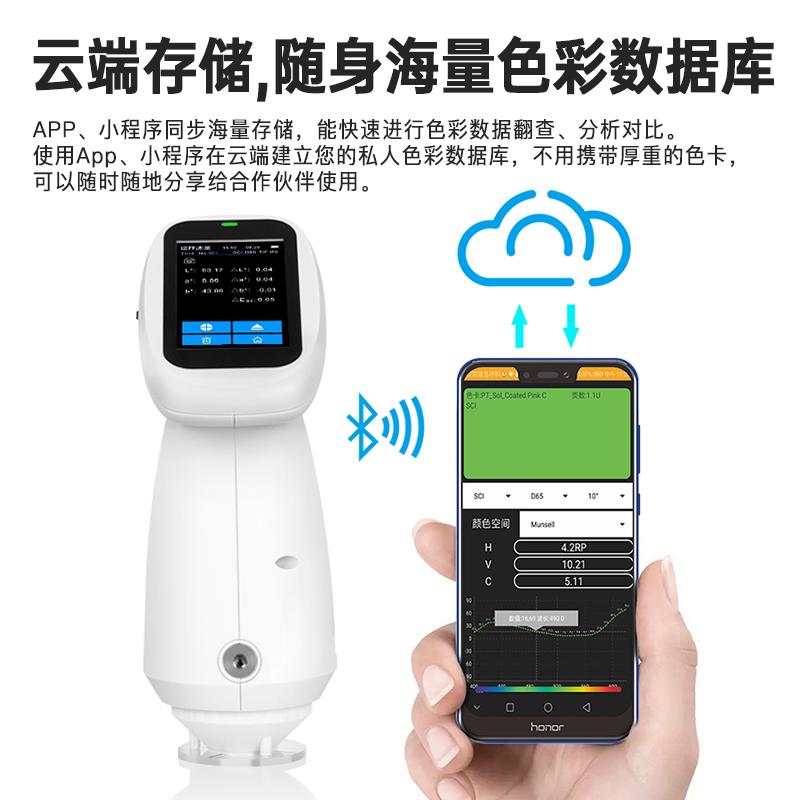

7. Cloud storage, portable massive color database
8. Measurement verification report
9, camera view positioning, can clearly observe the measurement area

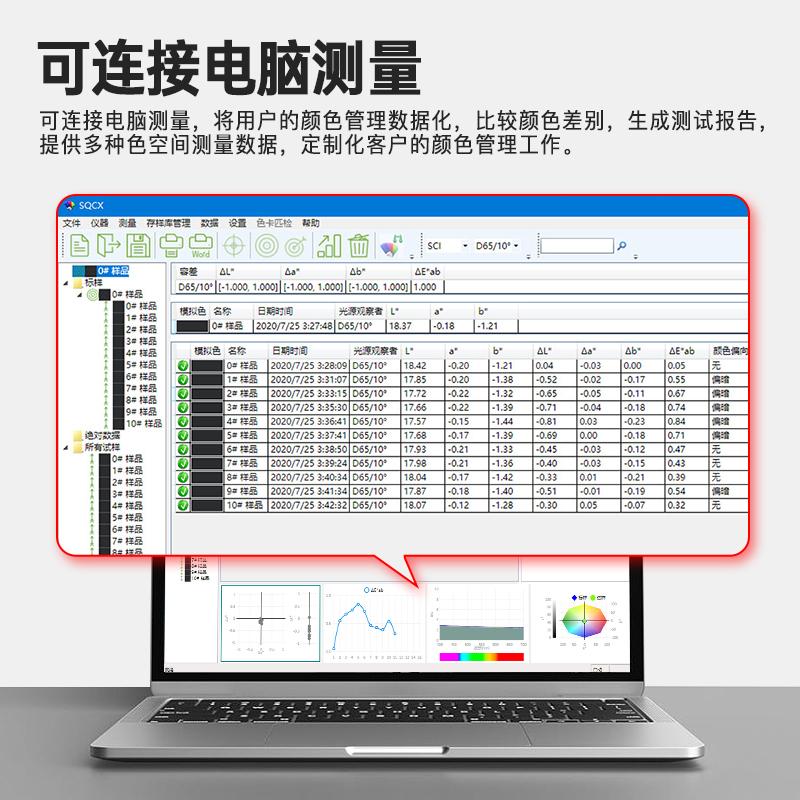

10. Color management software
Principle
The PS2050 spectroscopic color difference meter adopts D/8 illumination observation conditions, SCI/SCE synthesis technology, processes color data through CMOS dual-channel spectroscopic Sensor, uses 400~ 700nm full-band Balanced LED as the illumination light source, and has sufficient Light spectrum distribution in the visible range to ensure the accuracy of the instrument measurement results.
Applications
Plastic electronics, paints inks, Spinning & weaving garment printing, printing, Pottery and porcelain
Standards
CIE No.15、GB/T 3978、GB 2893、GB/T 18833、ISO7724-1、ASTM E1164、DIN5033 Teil7
Steps
1. Single measurement
Average measurement (2 to 99 times)
Notice
• Operating environment: 0~ 40 ℃, 0~ 85% RH (no condensation), altitude below 2000m
Storage environment: -20~ 50 ℃, 0~ 85% RH (no condensation)
