Overview

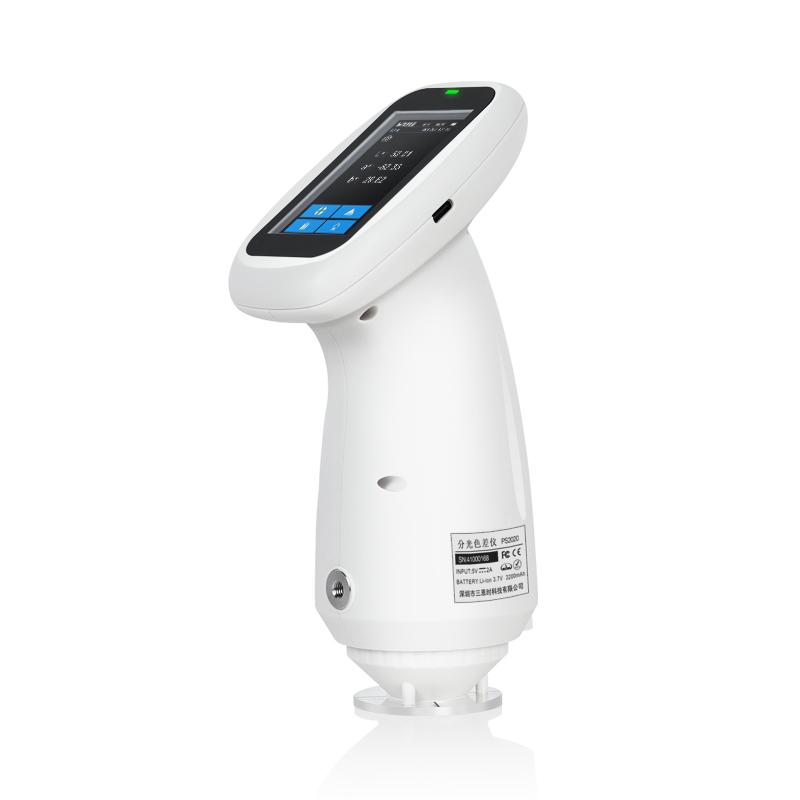

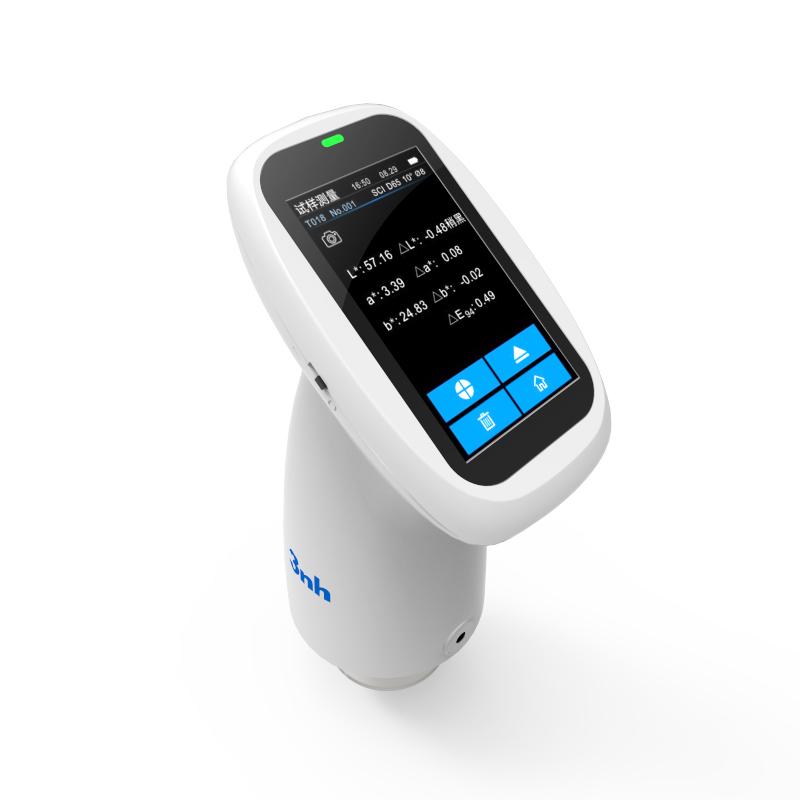

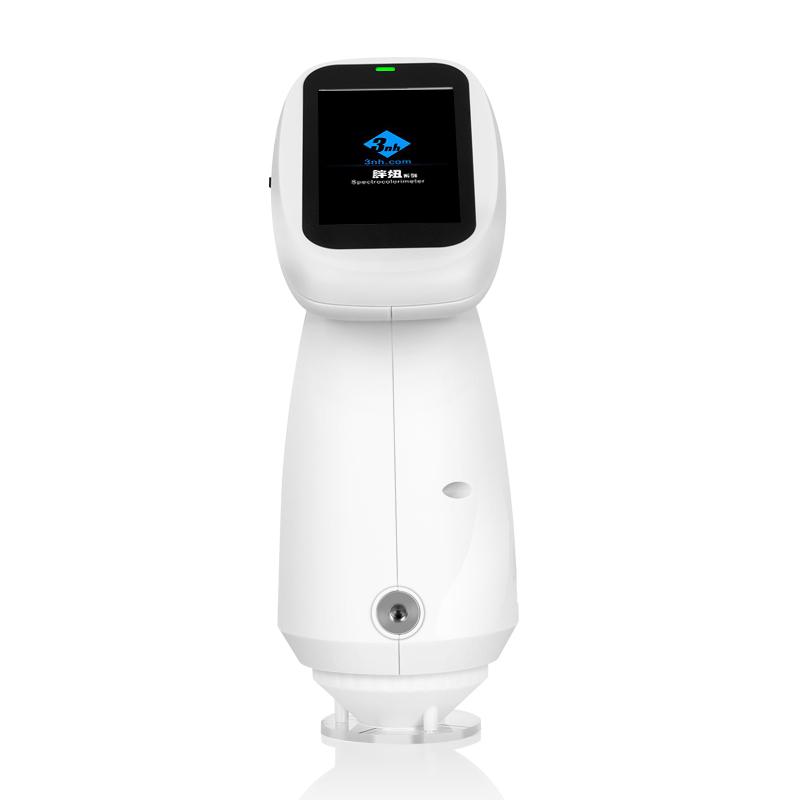

The PS2060 "fat girl" color difference meter is developed by 3nh using CMOS dual-channel spectroscopic sensor. It is both a color difference meter and a Colorimeter. It has excellent Repeatability and inter-table difference, and the measurement data is continuous, stable, accurate and reliable. Equipped with three measurement calibers to adapt to different scenarios, it supports color difference quality control in plastic electronics, paints, Spinning & weaving garment printing, printing, Pottery and porcelain industries, including UV, which can be used for fluorescence sample measurement.
Features
1. Adopt the internationally accepted D/8 SCI/SCE synthesis technology
2. Adopt full-band Balanced LED light source + UV light source
3. CMOS Dual Spectroscopic Sensor
4. Automatic whiteboard verification
5. Color measurement space, a variety of observation light sources
6. Ergonomic design and easy-to-measure devices
7. Cloud storage, portable massive color database
8. Measurement verification report
9, camera view positioning, can clearly observe the measurement area
10. Color management software
Principle
Using D/8 illumination observation conditions and SCI/SCE synthesis technology, the sample is irradiated by full-band Balanced LED light source and UV light source, and the CMOS dual-channel spectroscopic Sensor receives the reflected light signal, performs Light spectrum analysis and converts it into Color data. Built-in camera assists positioning to ensure accurate measurement area.
Applications
Plastic electronics, paints inks, Spinning & weaving garment printing, printing, Pottery and porcelain
Standards
CIE No.15、GB/T 3978、GB 2893、GB/T 18833、ISO7724-1、ASTM E1164、DIN5033 Teil7
Steps
1. Boot warm-up

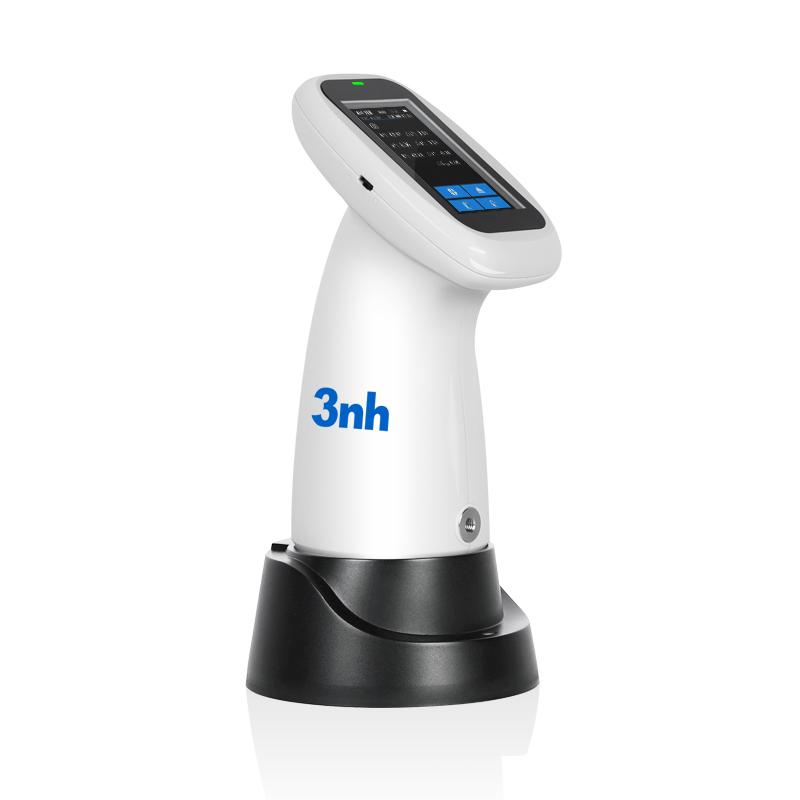

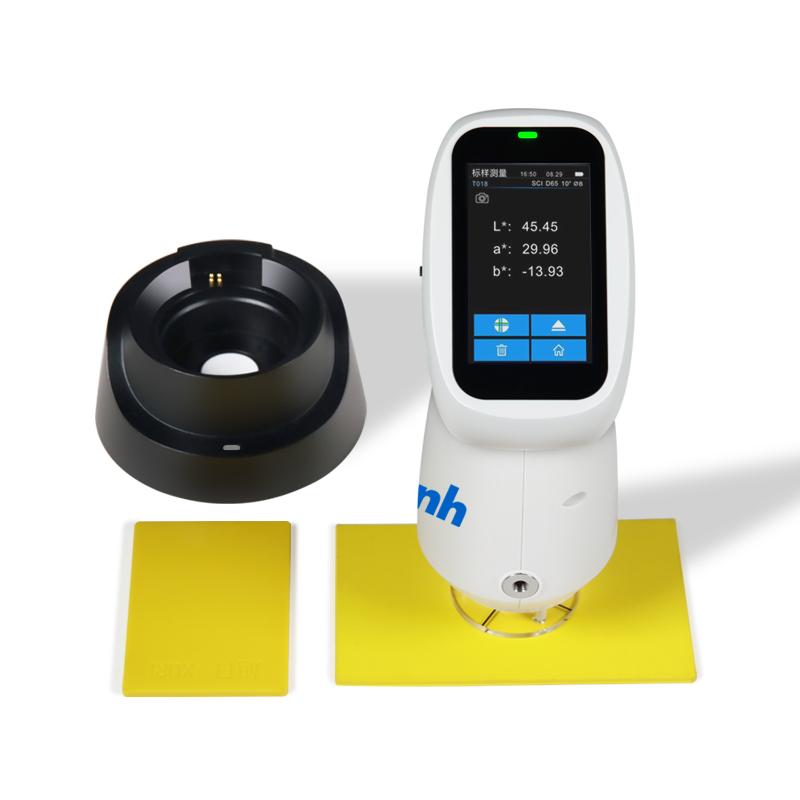

2. Use smart calibrating base for contact automatic whiteboard calibration
3. Select measurement caliber and mode
4. Locate the tested area through camera viewing
5. Perform a single or average measurement
6. View and store data

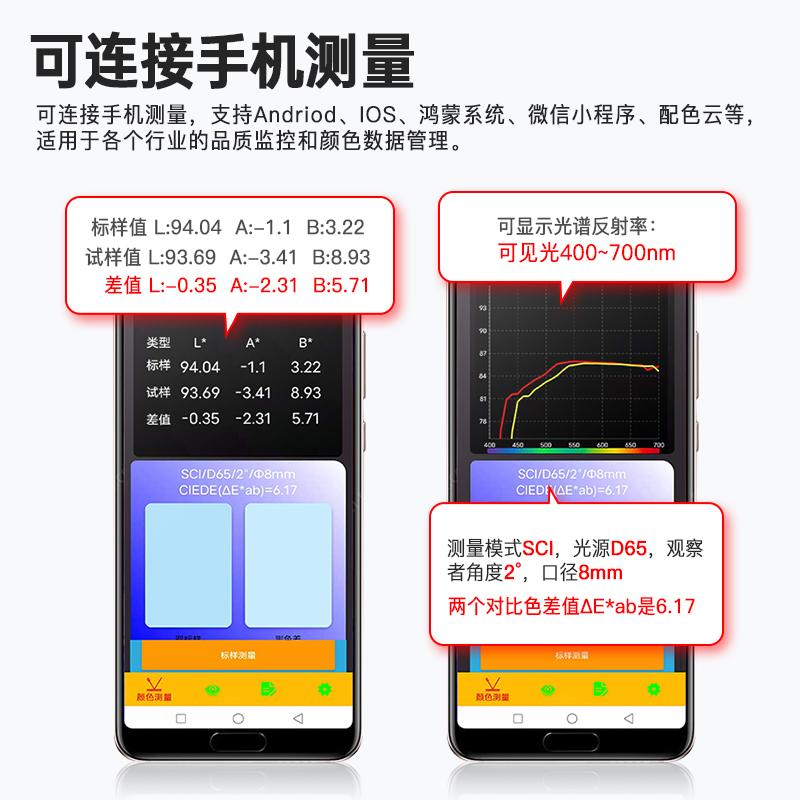

7. Perform data analytics through APP or software
Notice
• Operating environment temperature 0~ 40 ℃, humidity 0~ 85% RH no condensation
Storage environment temperature -20~ 50 ℃, humidity 0~ 85% RH no condensation
• Use at altitudes below 2000m
• Regularly perform whiteboard checks to ensure accuracy
• Avoid strong vibrations and impact on instruments
• Clean measurement caliber after use and store it properly
