Overview

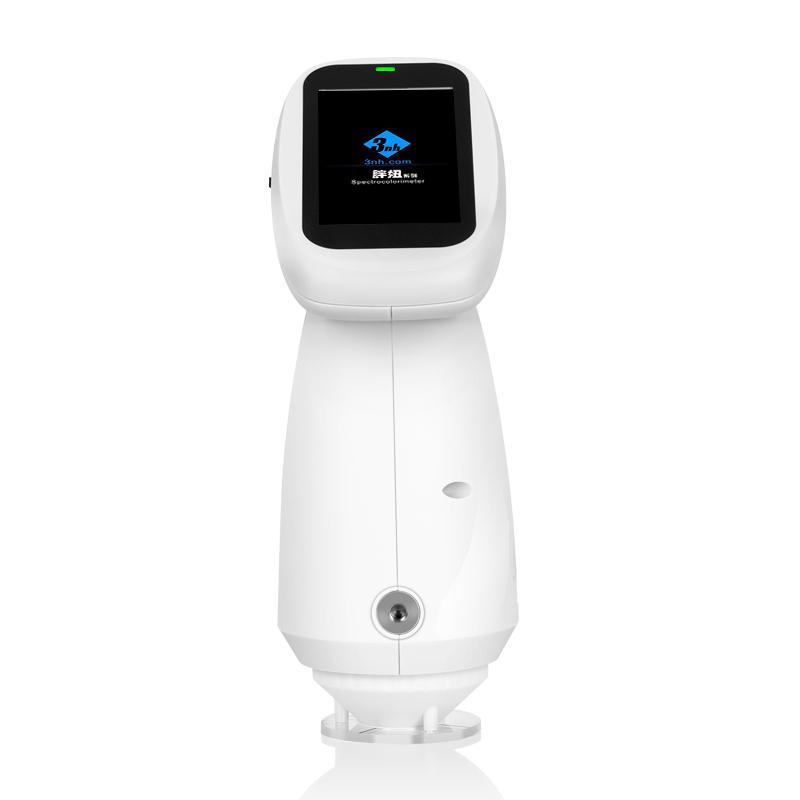

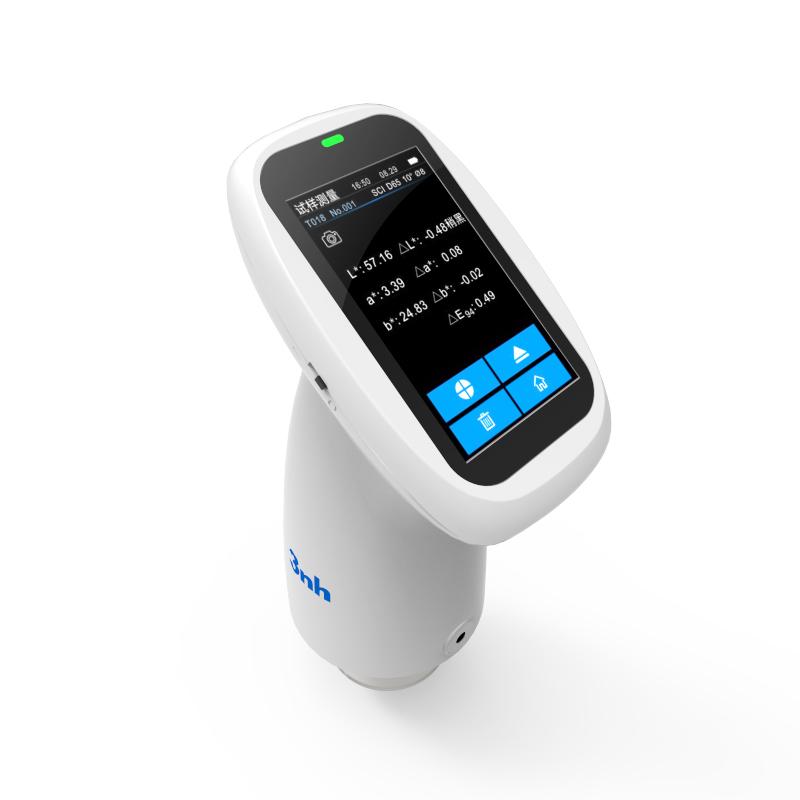

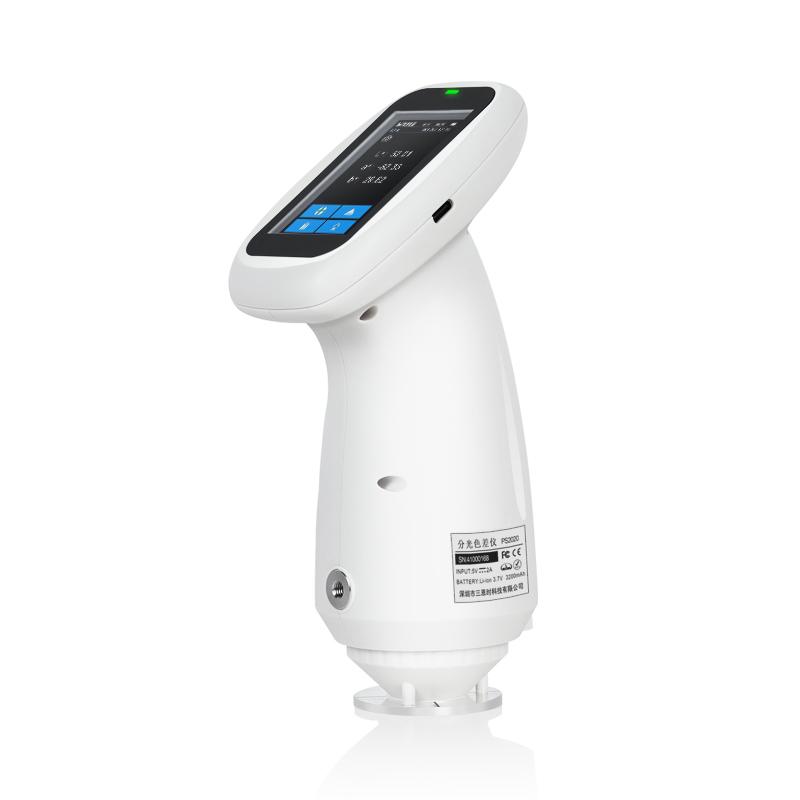

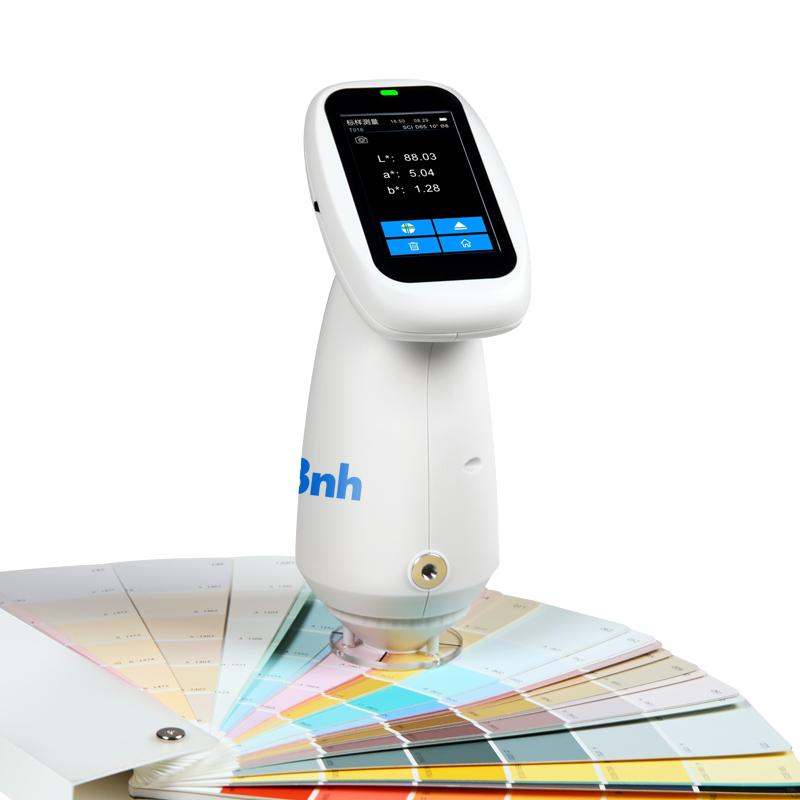

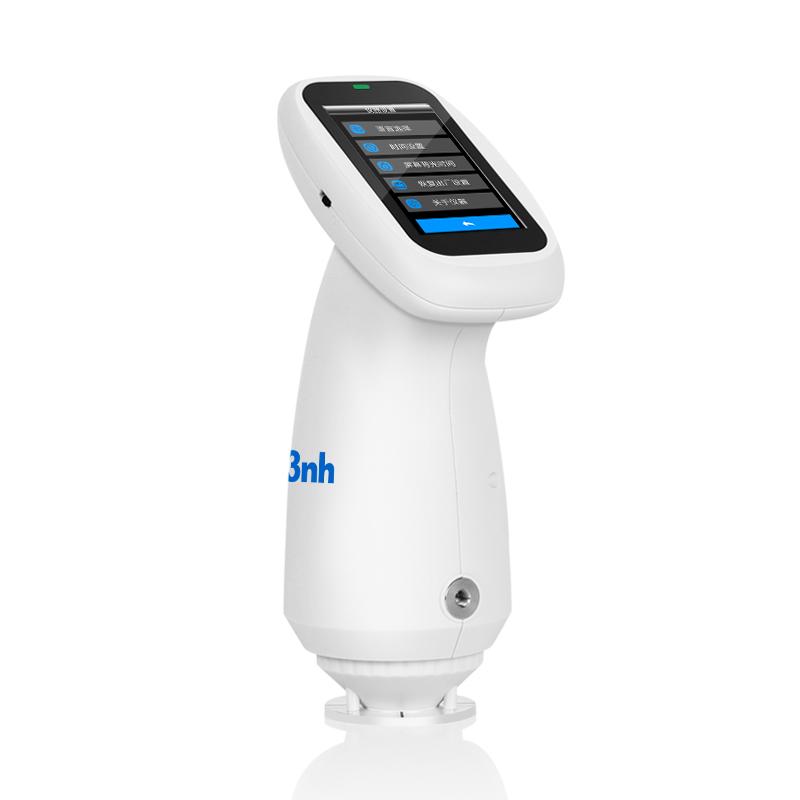

"Chubby Girl" is the nickname of the 3nh brand PS2080 spectroscopic color difference meter, with high user satisfaction. The instrument is developed with CMOS dual-channel spectroscopic Sensor, which is both a spectroscopic color difference meter and a Colorimeter. It has excellent Repeatability and inter-table difference, and the measurement data is continuously stable, accurate and reliable. Equipped with comfortable and round Appearance shape, it supports quality management software such as Android, iOS, Windows, Hongmeng System, WeChat Mini Program, color scheme cloud, etc., which is convenient for quality monitoring and data management. Equipped with φ 8mm (platform + tip), φ 4mm (platform + tip), 1x3mm (platform + tip) six measurement caliber, wide adaptability, for plastic electronics, paints inks, Spinning & weaving garment printing and dyeing, printing, Pottery and porcelain and other industries color difference quality control, including UV can be used for fluorescence sample measurement.
Features
1. Adopt international general D/8 SCI/SCE synthesis technology
2. Adopt full-band Balanced LED light source + UV light source
3. CMOS Dual Spectroscopic Sensor

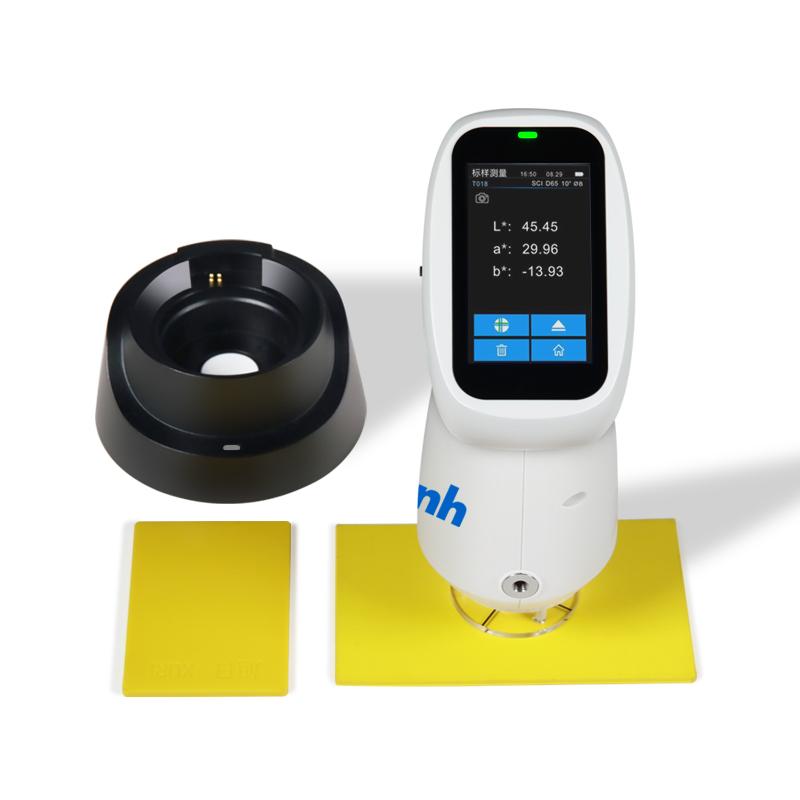

4. Non-contact automatic whiteboard calibration
5. Color measurement space and observation light source
6. Ergonomic design and easy-to-measure devices
7. Cloud storage, portable massive color database
8. Measurement verification report
9. Camera viewfinder positioning
10. Color management software supports multiple platforms
Principle
PS2080 spectroscopic color difference meter adopts D/8 illumination observation conditions and SCI/SCE synthesis technology, uses 400~ 700nm full-band Balanced LED light source and UV light source as illumination light source, and performs color data collection and processing through CMOS dual-channel spectroscopic Sensor. Built-in camera realizes viewfinder positioning, and non-contact automatic whiteboard calibration ensures measurement accuracy.
Applications
Plastic electronics, paints inks, Spinning & weaving garment printing, printing, Pottery and porcelain
Standards
CIE No.15、GB/T 3978、GB 2893、GB/T 18833、ISO7724-1、ASTM E1164、DIN5033 Teil7
Steps
1. Boot warm-up
2. Perform non-contact automatic whiteboard verification
3. Select measurement caliber and mode
4. Locate the tested area through camera viewing
5. Take single or average measurements
6. View measurement results and data
7. Data management and analysis through software
Notice
• Operating environment temperature 0~ 40 ℃, humidity 0~ 85% RH (no condensation)
• Storage environment temperature -20~ 50 ℃, humidity 0~ 85% RH (no condensation)
• Altitude usage below 2000m
• Whiteboard verification is required before measurement
• Regularly check the battery level
• Avoid violent vibration of the instrument
Keep the measurement caliber clean
• Use supporting software for data management
