Overview

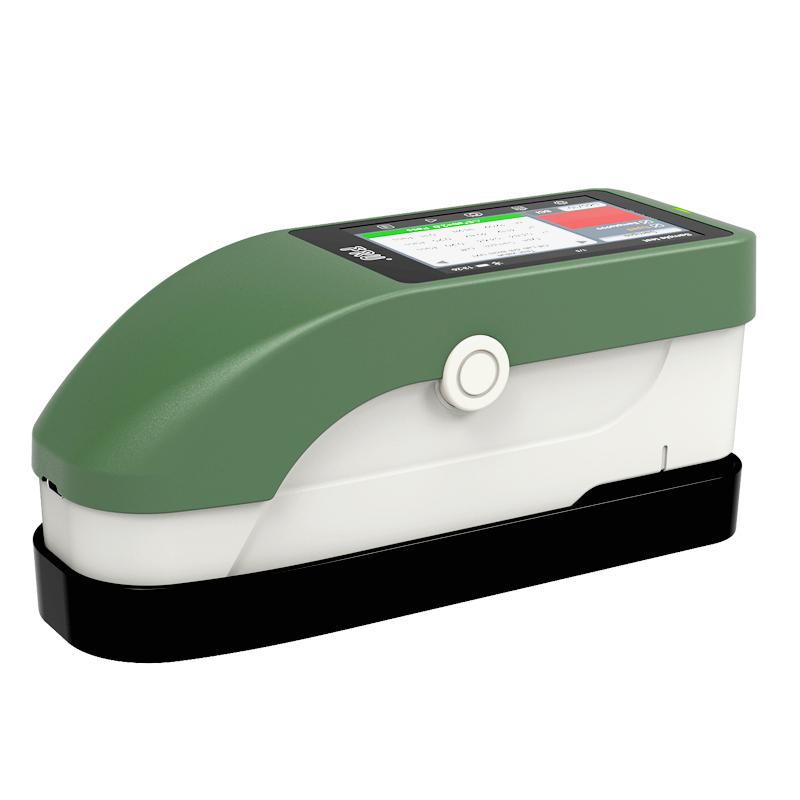

SA23 is a new Colorimeter launched by IWAVE Optoelectronics, which has the characteristics of fast measurement, accurate data and fashionable Appearance. Using a combination LED light source with high life and low power consumption, it supports precise positioning measurement on the sample surface. It can be widely used in paints, plastics, Resin, Spinning & weaving, leather and other fields to help complete professional color control.
Features
1. Light spectrum combined LED light source, sample surface free positioning measurement
2. High Accuracy Spectroscopic Structure, Accurate measurement of LAB value
3.φ 8/4mm diameter is available to adapt to more tested samples
4. Unique body design, lightweight and convenient to carry
5. Super stain-resistant and stable standard whiteboard, escorting every measurement
Principle
SA23 Colorimeter uses full Light spectrum LED light source and d/8 diameter 40mm integrating sphere geometry condition, receives reflected light through CMOS sensor, performs spectroscopic measurement in the range of 400-700nm at 10nm wavelength interval, Automatic calibration and calculation of various Color space and Color difference formula, realize fast and accurate color analysis.
Applications
Paints, Plastics, Resins, Spinning & weaving, Leather
Steps
1. Automatic calibration instrument
2. Visually position the measurement point on the sample surface
3. Select measurement diameter (φ 8mm or φ 4mm) and Measurement mode
4. Use capacitive touchscreen to set parameters and start measurement
5. View the measurement results on the display and save the data
Notice
• Make sure the instrument is calibrated before measurement to ensure data accuracy
• Select the appropriate caliber to accommodate different sample sizes
Avoid measurements in bright light or extreme environments to prevent interference with results
• Maintain Stability by Regularly Cleaning Standard Whiteboards
• When using Type C interface or Bluetooth connection, ensure device compatibility
• After the battery is fully charged, it can be measured about 10,000 times. Pay attention to charging in time
