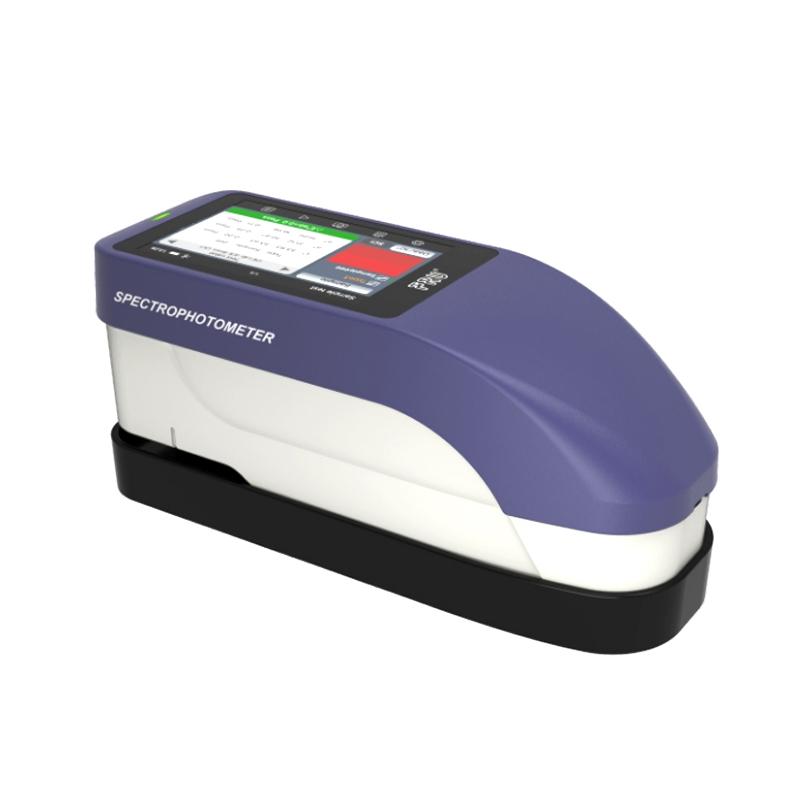

IWAVE SY3020 ColoriMeter, Full Light spectrum LED light source

Name: IWAVE SY3020 ColoriMeter, Full Light spectrum LED light source
Brand: IWAVE
SKU: NB041909

Please contact customer service

Equipped with Φ 8mm measurement diaMeter and full Light spectrum LED light source, repeability accuracy ≤ E * ab ≤ 0.07, support SCI/SCE simultaneous measurement, 3.5 inch touch screen operation, can store 8000 measurement data.

Model

SY3020(Φ8mm)

Get Quote

Category : Color Spectrophotometer

Brand : IWAVE

SKU : NB041909

Service :The delivery and service By NBCLab.Com

Overview

SY3020 Colorimeter uses new high-profile electronic components, equipped with two caliber controllable options, suitable for a variety of sample measurements, ensuring accurate and stable data for each measurement.

Features

1. Light spectrum combination LED light source, free positioning measurement 2. High Accuracy Spectroscopic Structure, LAB Numerical Accurate Acquisition 3. Two calibers to choose from to adapt to more tested samples 4. High-quality electronic hardware, quality assurance accurate measurement 5. Equipped with stable dirt-resistant whiteboard, escort instrument calibrated 6. Measurement modes to meet various measurement needs 7. PC software assistance, expand more measurement functions

Principle

Color data were obtained by high Accuracy spectroscopic structure analysis, using a full Light spectrum LED light source to illuminate the sample.

Applications

Color measurement, quality control, Product Research & Development, Laboratory Analysis, Industrial Production

Standards

metrology standard

Steps

1. Instrument calibrating 2. Select measurement caliber 3. Positioning measurement sample 4. Initiate measurement 5. View and save data

Notice

• Instrument calibrated before measurement • Select the appropriate measurement caliber according to the sample characteristics Ensure stable measurement environment rays of light • Regularly clean instruments and whiteboards • Maintain according to the instructions

Measurement caliber
Single diameter Φ 8mm
Light-containing method
SCI (including specular reflection)
Measurement light source
Light spectrum LED
positioning method
visual
Sexual repeability accuracy
Delta E * ab ≤ 0.07 (after calibrating, take the average value of the whiteboard measurement 30 times at 5s intervals)
Color space
CIE-Lab, CIE-LCh, Luv, Hunter-Lab, XYZ, Yxy, sRGB, DIN LAB99, CMYK (A/T/E/M/I) field density, Munsell, reflectance (bright vision), blackness, YI yellowness, homochromatic (jumping lights), hiding power
Color difference formula
ΔE*ab、ΔE*ch、ΔE*uv、ΔE*HunterLab、ΔE*CMC(l:c)、ΔE*94、ΔE*00、ΔE*sRGB、ΔE*BFD、ΔE*FCMII、ΔE*DIN99
Standard light source
A、C、D50、D55、D65、D75、F1、F2、F3、F4、F5、F6、F7、F8、F9、F10、F11、F12、CWF、U30、U35、DLF、NBF、TL83、TL84
observer
10°（CIE1964）/2°（CIE1931）
wavelength interval
10Nm (Range 400-700nm)
reflectance
Range: 0-200% resolution: 0.01%
Sensor
CMOS sensor
geometric conditions
D/8 diameter 40mm integrating sphere
calibrate
automatic
accuracy
Measurement
Display accuracy
0.01
stand-alone difference
Delta E * ab ≤ 0.4 (the average measurement value of < 12 color blocks)
Measurement speed
1.0s 2.0s (SCI/SCE simultaneous measurement)
mode of operation
Capacitive touch screen
screen
3.5-Inch full-color LCD screen
Battery capacity
Polymer battery, fully charged for 10,000 consecutive measurements
interface
Type C/Bluetooth
language
Simplified Chinese, Traditional Chinese, English
APP platform
Android/IOS/Windows
storage
The fuselage stores 8000 pieces, and supports App mass storage.
Volume
181X67x67mm (without base)
weight
330G (without base)
Color Space 2
Tinctorial Strength/Strength/dyestuff Strength, colour fastness, Taube whiteness, Berger whiteness, Tappi whiteness, Cros whiteness, Stephansen whiteness, Ganz whiteness, Hunter whiteness, whiteness (ASTM), whiteness (CIE), AATCC whiteness, R457/ISO2470 whiteness, GB/T17644 whiteness

[Q] Is the price listed on the website the final cost for overseas purchases?

[A] No, it isn't. This is the ex-factory price of the product in the Chinese Mainland. In addition to this price, buyers from different countries need to account for additional costs such as shipping fees, tariffs, and others. For specific regional quotes, please consult our customer service or fill out a quotation form.

[Q] What is the specific process for purchasing the product?

[A] First, please click on the quotation form on the website and fill in detailed information. Our customer service personnel will then send you a quotation based on your specific country and region, confirming payment and delivery methods. Following this, we proceed with contract signing, payment, and shipment. You can then await delivery.

[Q] What should I do if the instrument I purchase needs repair?

[A] After-sales repair for overseas instruments is an unavoidable issue. Our repair terms stipulate that the sender is responsible for the shipping and insurance costs incurred for the repair. Repairs within the warranty period are free, while repair costs beyond the warranty period are determined based on the actual situation.
