Overview

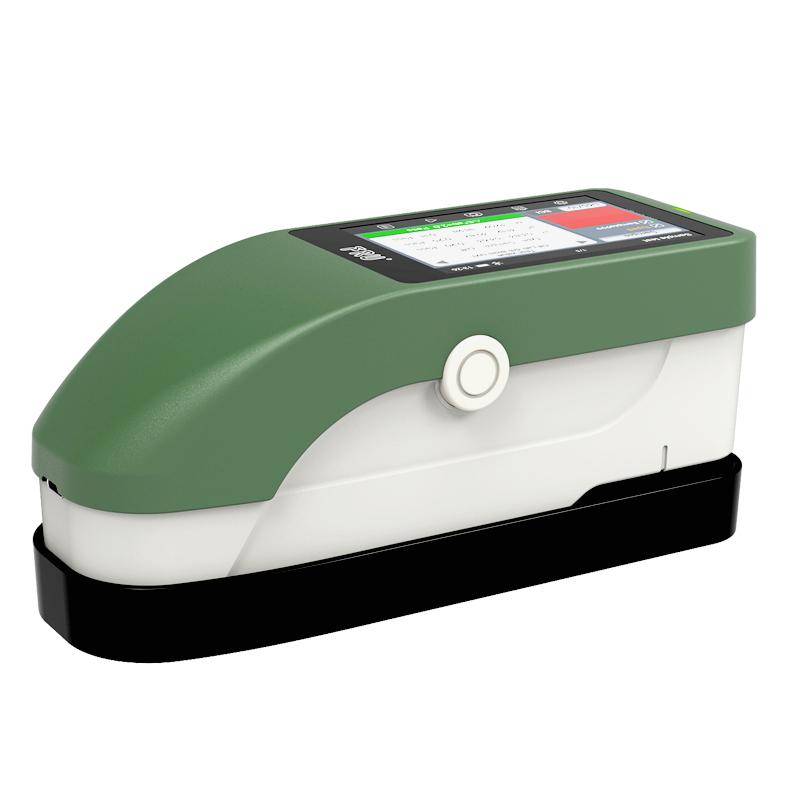

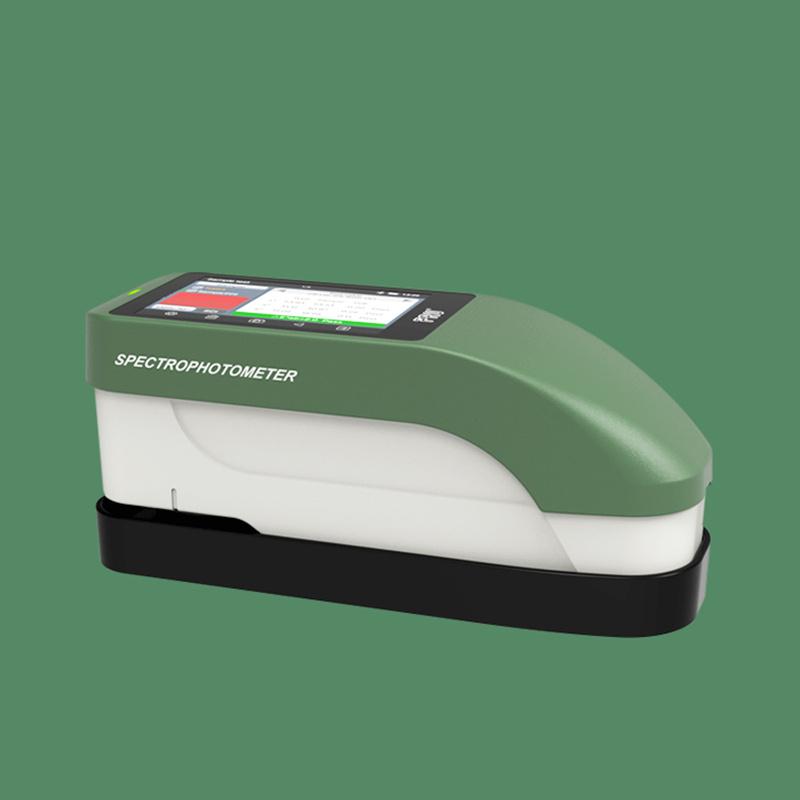

SA23 is a new Colorimeter launched by IWAVE Optoelectronics. It adopts a combination LED light source with high life and low power consumption. The measurement is fast, the data is accurate, and the appearance is fashionable. It can be accurately positioned and measured on the sample surface. It can be widely used in paints, plastics, Resin, Spinning & weaving, leather and other fields to help complete professional color control.
Features
1. Light spectrum combined LED light source, sample surface free positioning measurement
2. High Accuracy Spectroscopic Structure, Accurate measurement of LAB value

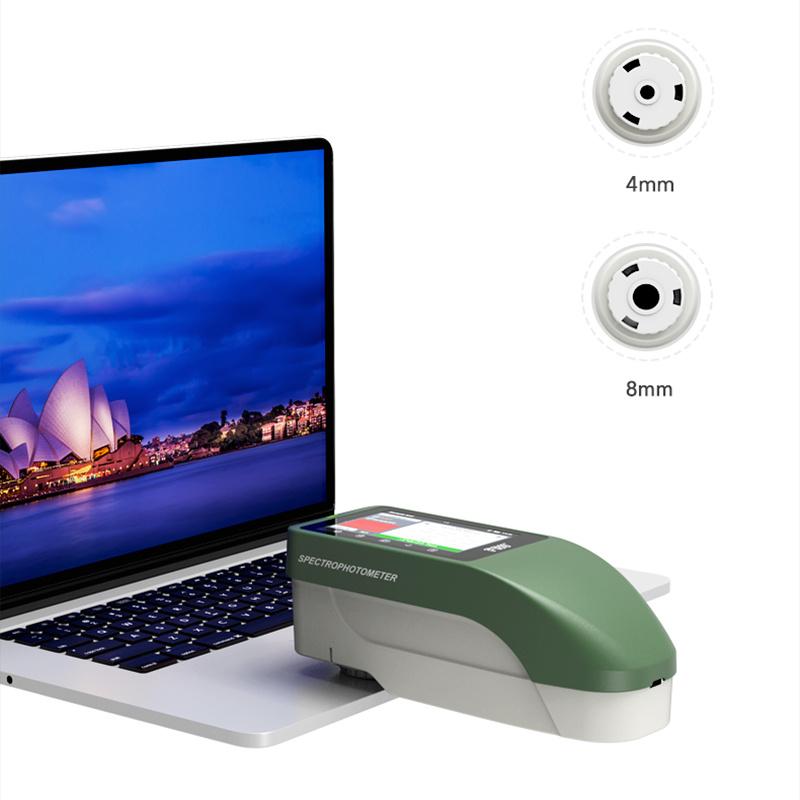

3.φ 8/4mm diameter is available to adapt to more tested samples
4. Unique body design, lightweight and convenient to carry
5. Super stain-resistant and stable standard whiteboard, escorting every measurement
Principle

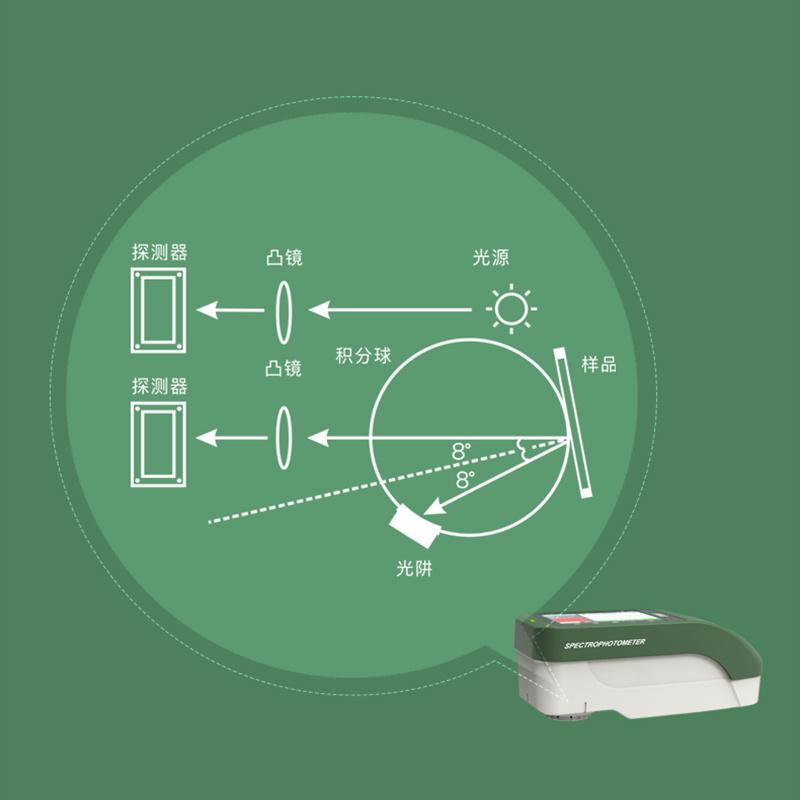

SA23 Colorimeter uses High Accuracy Spectroscopic Structure and Full Light spectrum LED light source, receives the reflected light of the sample through CMOS sensor, performs measurement under the geometric conditions of d/8 diameter 40mm integrating sphere, Automatic calibration and calculation of various Color space and Color difference formula, realize fast and accurate color analysis.
Applications
Paints, Plastics, Resins, Spinning & weaving, Leather
Steps
1. Visually locate the sample surface
2. Automatic calibration instrument
3. Perform measurement (Measurement speed 1.0s-2.0s)
4. View the results through the 3.5-inch capacitive touch screen
5. Data is automatically stored or transferred through the app
Notice
• Make sure the instrument is calibrated before measurement
Keep standard whiteboards clean to ensure measurement accuracy
• Avoid use in a strong light environment
• Regular charging to ensure battery performance
• Use the appropriate measurement caliber to adapt to different samples
