$ 11993.00Ex works
Using servo motor drive and High Accuracy ball screw, the maximum load is 20T, the accuracy reaches 0.5 level, supports constant speed loading and displacement control, automatically calculates stress, elongation and other paraMeters, and integrates a variety of Measurement modes.
Category : Tensile Testing Machine
Brand : FaRui
SKU : NB041940
Service :The delivery and service By NBCLab.Com

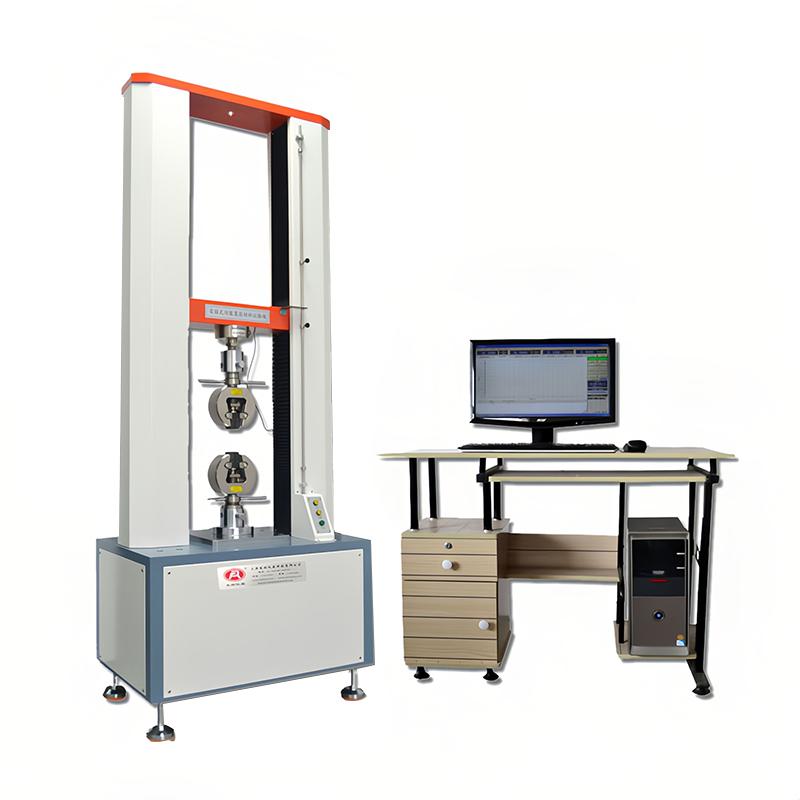

FR-100C Computerized Servo Universal Testing Machine is a new type of material testing machine combining electronic technology and mechanical transmission. It has a wide and accurate loading speed and force measurement range. It has High Accuracy and Sensitivity for the measurement and control of load and displacement. It can carry out automatic control tests of constant speed loading and constant speed displacement. Simple and convenient operation, suitable for quality control testing of production lines, mainly suitable for non-metallic and metal material tests with test loads below 20T.
1. The controller adopts embedded single-chip microcomputer structure, built-in powerful measurement and control software, and integrates measurement, control, calculation and storage functions. 2. Automatic calculation of stress, elongation, tensile strength, resilience modulus and other functions, automatic statistical results and record key point data. 3. Using computer dynamic display test process and Linear dispersion, Linear dispersion analysis can be enlarged and edited after data processing, and reports can be printed. 4. The software supports test standard modularization, sample data management, dual report editing, unit dynamic interchange, graphic Linear dispersion automatic optimization and multi-Linear dispersion comparison. 5. Test results can be output in EXCEL format, automatically or manually archived, and backup data can be saved on any hard disk partition. 6. Provide historical test data demonstration function, random gift of standard tensile fixture and special test software.
High Accuracy ball screws are driven by servo motors to achieve precise loading and displacement control. Embedded controllers perform measurement, calculation and storage functions, and software dynamically displays test Linear dispersion and processes data. Multiple test modes and standards are supported.
Metal and Non-metallic material testing, rubber, plastic, Wire and cable, fiber optic cable, seat belt, safety belt, leather belt composite, plastic profile, waterproof membrane, steel pipe, copper, profile, spring steel, bearing steel, stainless steel, casting, steel plate, steel belt, non-ferrous metal wire tensile, compression, bending, shearing, disbonding, tearing, two-point extension and other tests
"GB/T16491-1996 Electronic Multifunctional Testing Machine"
1. Set test standards and sample data. 2. Install the specimen and fix it with a fixture. 3. Select the test speed range (0.001 to 250mm/min) and start the test. 4. Computer dynamic display of the test process and Linear dispersion. 5. Return to the initial position automatically or manually after the test. 6. Linear dispersion data processing, analysis and printing reports.
• Power supply voltage is 220V, 50HZ, and the power is configured according to the force value requirements (1.5KW or 2KW). • Test bench safety device includes electronic limit protection, automatic machine protection when overload exceeds 10% of maximum load. • The deformation measurement system can be equipped with large deformation or small deformation according to the needs to ensure that the accuracy is within +/- 0.5% of the indication. • Test data can be backed up on any hard disk partition to avoid data loss. • Random accessories include one-year warranty, Chinese operation instructions and standard tension fixtures, please keep them properly.
[A] No, it isn't. This is the ex-factory price of the product in the Chinese Mainland. In addition to this price, buyers from different countries need to account for additional costs such as shipping fees, tariffs, and others. For specific regional quotes, please consult our customer service or fill out a quotation form.
[A] First, please click on the quotation form on the website and fill in detailed information. Our customer service personnel will then send you a quotation based on your specific country and region, confirming payment and delivery methods. Following this, we proceed with contract signing, payment, and shipment. You can then await delivery.
[A] After-sales repair for overseas instruments is an unavoidable issue. Our repair terms stipulate that the sender is responsible for the shipping and insurance costs incurred for the repair. Repairs within the warranty period are free, while repair costs beyond the warranty period are determined based on the actual situation.
