Overview

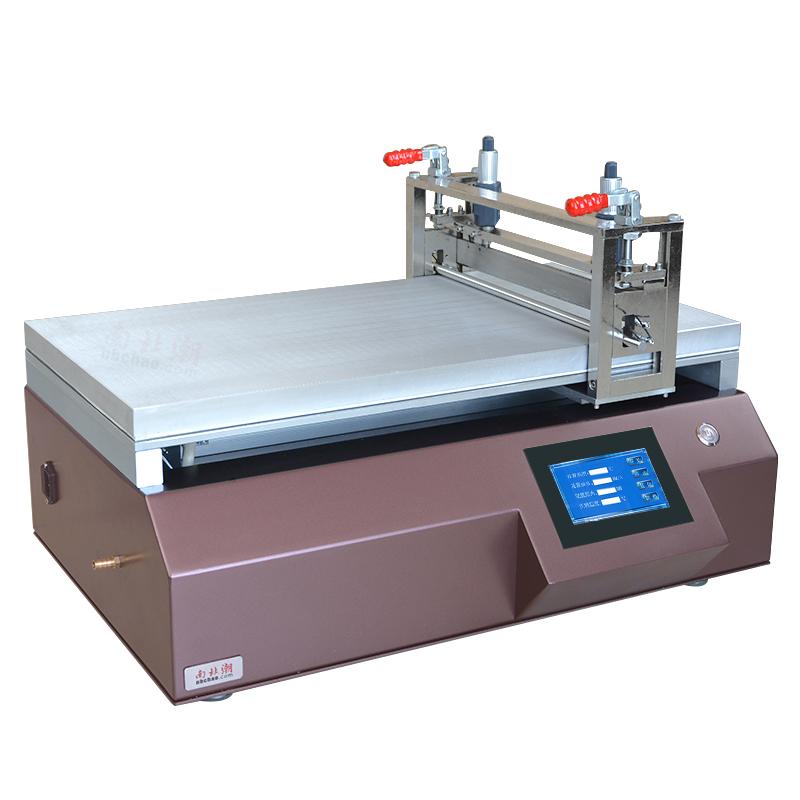

TBJ-X5-DJ3 Automatic Film Applicator is a China High Accuracy Spreader device, using servo motor drive and stepless speed control, with vacuum adsorption and heating functions, suitable for uniform Spreader of various substrates.
Features
1. Spreader accuracy, up to +/- 0.003mm
2. Spreader Film thickness range, 0~ 10mm scraper can lift
3. Spreader rate adjustable, range 2~ 300mm/s
4. Large Spreader Area, 600 * 300mm
5. Vacuum adsorption function, size 600 * 300mm, can be customized
6. Temperature range RT +~ 180 ℃, temperature accuracy +/- 3 ℃
7. The drive adopts servo motor, and the speed is infinitely variable
8. Spreader is made of aluminum alloy with strong durability
9. Optional a variety of accessories and customized functions, such as leakage tank, jet system, etc
Principle
Automatic Film Applicator uses a servo motor to drive the scraper for stepless variable speed movement, combined with a vacuum adsorption system to fix the substrate, to achieve accurate Spreader under heating conditions. Spreader Film thickness is controlled by the lift of the scraper to ensure uniformity.
Applications
Spreader process, material testing, laboratory research, industrial production
