TQC sheen VF2228 Zahn Cup 3.8mm filter

Name: TQC sheen VF2228 Zahn Cup 3.8mm filter
Brand: TQC sheen
SKU: NB004204
Price: 472.0 USD
Availability: InStock

$ 472.00Ex works

Using stainless steel material, filter diaMeter 3.8mm, viscosity measurement range 100-800cst, outflow time 20-80 seconds, suitable for medium viscosity fluid rapid test.

Model

Get Quote

Category : Viscosity Cup

Brand : TQC sheen

SKU : NB004204

Service :The delivery and service By NBCLab.Com

Overview

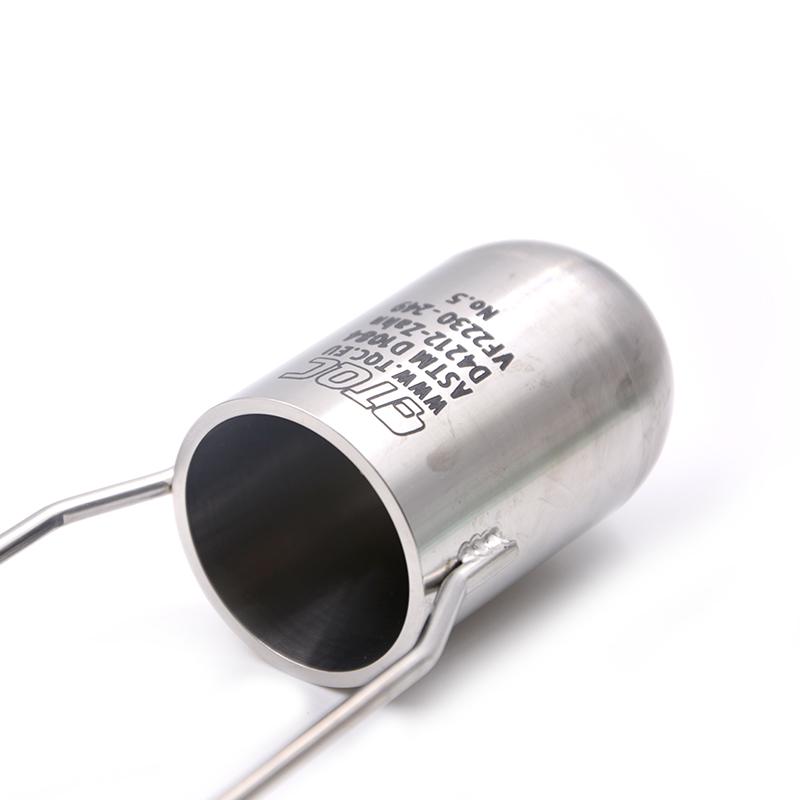

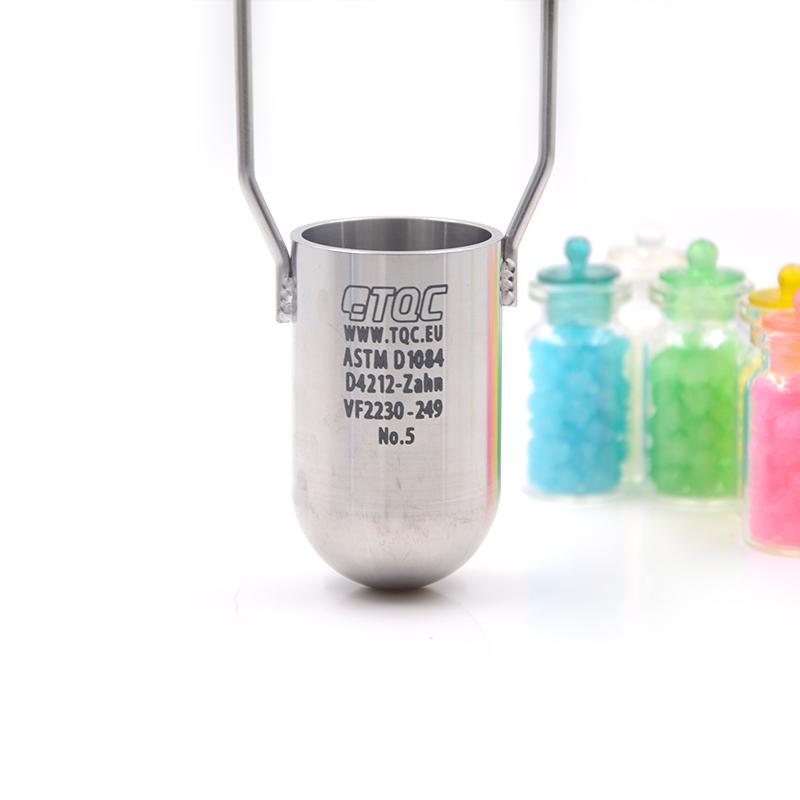

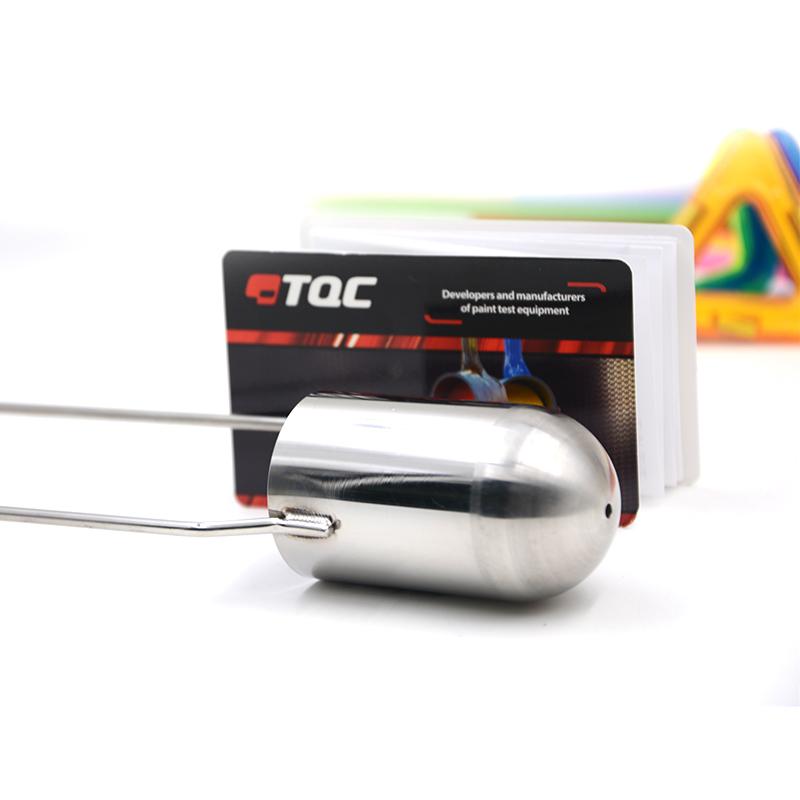

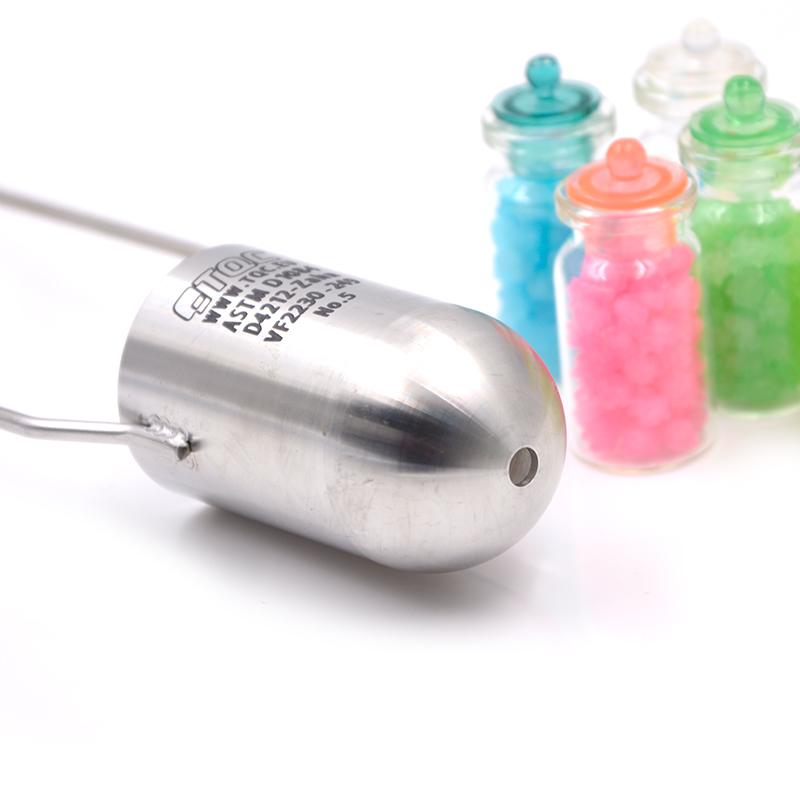

The TQC Zahn Cup VF2228 is a stainless steel Handheld viscosity test cup designed for medium to high viscosity liquids. With a diameter of 3.8mm, this model is suitable for liquid testing in the viscosity range of 100-800cst. The outflow time is 20-80 seconds. It is designed and manufactured according to international standards and meets the relevant application standards.

Features

1. Made of stainless steel, strong durability 2. Cover medium and high viscosity test range (100-800cst) 3. Design in accordance with international standards 4. Accuracy and repeatability 5. Handheld and immersive operation is convenient 6. Comes with a hard plastic protective case

Principle

Based on the Stokes viscosity measurement principle, the Zahn Cup calculates kinematic viscosity by measuring the time it takes for a specific volume of liquid to flow out of a standard pore size. Originally designed for rapid viscosity assessment of products that comply with Newtonian mechanical properties, modern viscosity cups are manufactured to international standards to ensure dimensional tolerance accuracy and data recording standardization.

Applications

Medium Viscosity Oils, Mixed Coatings, Ceramics

Standards

ASTM D1084、ASTM D4212

Steps

1. Adjust the temperature of the liquid to be tested to 25 +/- 0.2 degrees Celsius 2. Select the Zahn Cup with the appropriate pore size according to the estimated viscosity 3. Fully immerse the Zahn Cup in the liquid to be tested 4. Measurement and recording of liquid temperature in the cup 5. Lift the Zahn Cup vertically and start timing when the cup leaves the liquid surface 6. Stop timing when the beam stops flowing for the first time

Notice

• Temperature fluctuations during testing must not exceed +/- 0.2 degrees Celsius • The height of the cup should not be higher than 15 cm above the liquid level • Use soft cloth to clean and avoid abrasion tools • Clean the outflow hole in time after each use • Safety precautions need to be established before testing • Avoid scratching the inner surface of the outflow hole

Viscosity Range
100~800 cSt
outflow time
20~80 s
flow hole diameter
3.8mm
capacity
44 ml
cup height
62.5mm
cup width
36mm
Maximum width
50mm
Total height
330mm
Cup body material
stainless steel
Nozzle material
stainless steel
Handle material
stainless steel
Applicable standard
ASTM D 1084、ASTM D 4212
certificate
without
weight
135~137 g
Sample material under test
Medium Viscosity Oils, Mixed Coatings, Ceramics
