Overview

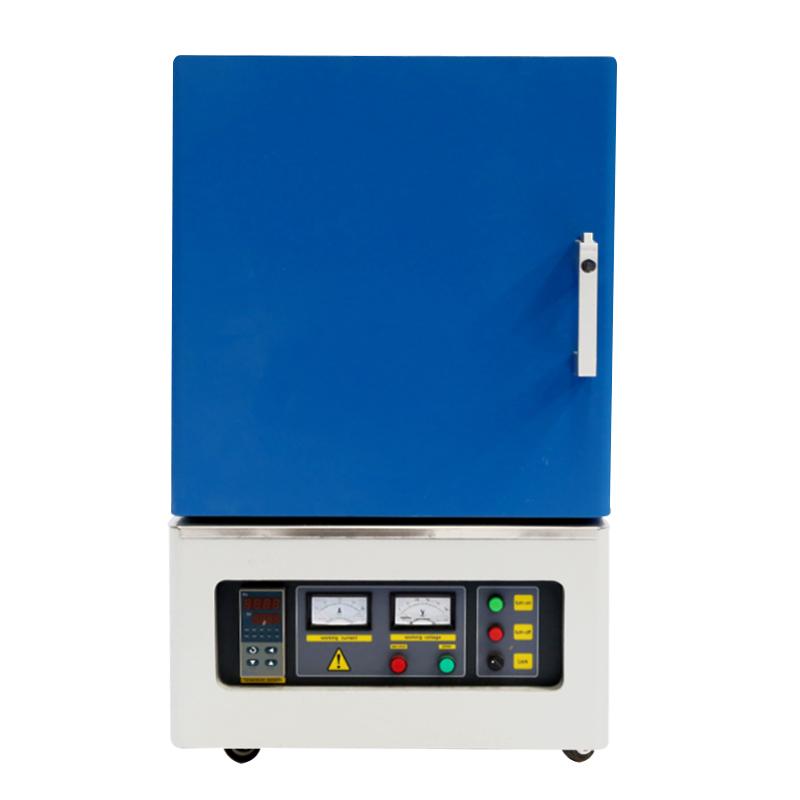

SX2-9-18T high temperature box type resistance furnace uses silicon molybdenum rod as heating element, adopts double-decked shell structure and intelligent temperature control system, thyristor control, phase shift trigger, furnace adopts 1800 type aluminum oxide polycrystalline fiber material, double-decked furnace shell is equipped with air cooling system, can quickly rise and lower temperature, adopts soft start constant current control to prolong the life of heating element. The furnace has the advantages of high temperature control accuracy, Balanced temperature field, simple operation, fast temperature rate and low energy consumption.
Features
1. Adopt three-sided heating design to ensure uniform temperature in the furnace.
2. Pottery and porcelain fibers are used in the furnace, which greatly saves energy compared with traditional muffle furnaces.
3. The furnace body is beautiful in appearance and adopts an internal and external double-decked air-cooled structure to maintain a low temperature on the surface of the furnace shell during high temperature operation to avoid damage to the operator.
4. It can quickly raise and cool down, the furnace temperature field is Balanced, the temperature control is stable, the operation is simple, and the energy consumption is low.
5. Equipped with 30 intelligent program control instruments, thermostatic accuracy of +/- 1 ℃.
6. Provide overcurrent protection and break prompt function to enhance safety.
7. Optional accessories include stove rack, control software, support remote monitoring and modification of heater status program Linear dispersion.
Principle
The resistance furnace uses silicon molybdenum rods as heating elements, which are controlled by thyristor to realize phase shift triggering, and an intelligent temperature control system to precisely adjust the temperature. The furnace uses high-purity aluminum oxide polycrystalline fiber curing material, combined with double-decked shell structure and air cooling system to achieve rapid temperature rise and cooling. Soft start constant current control technology helps to prolong the life of the heating element, ensure that the insulation field is Balanced and the temperature control is stable.
Applications
Universities, research institutes, industrial and mining enterprises do powder sintering, Pottery and porcelain sintering, high temperature experiments, mass testing
Steps
1. Connect the power supply (AC380V 50/60HZ).
2. Use 30-segment intelligent program to control the meter to set the temperature Linear dispersion.
3. Start the device and heat up through soft-start constant current control.
4. Monitor temperature to ensure thermostatic accuracy.
5. After completing the experiment or sintering, use the air cooling system to quickly cool down.
6. Turn off the power and use accessories such as asbestos gloves and crucibletong to handle the workpiece.
Notice
• Wear asbestos gloves during operation to avoid high temperature burns.
• Power supply voltage meets AC380V 50/60HZ requirements.
• Regularly check Thermocouple and overcurrent protection to prevent malfunctions.
• The furnace door is side open, pay attention to safety during operation.
• Optional accessories such as control software need to be properly installed and used.
• The weight of the equipment is 164kg, and appropriate tools need to be used when handling.
