Overview

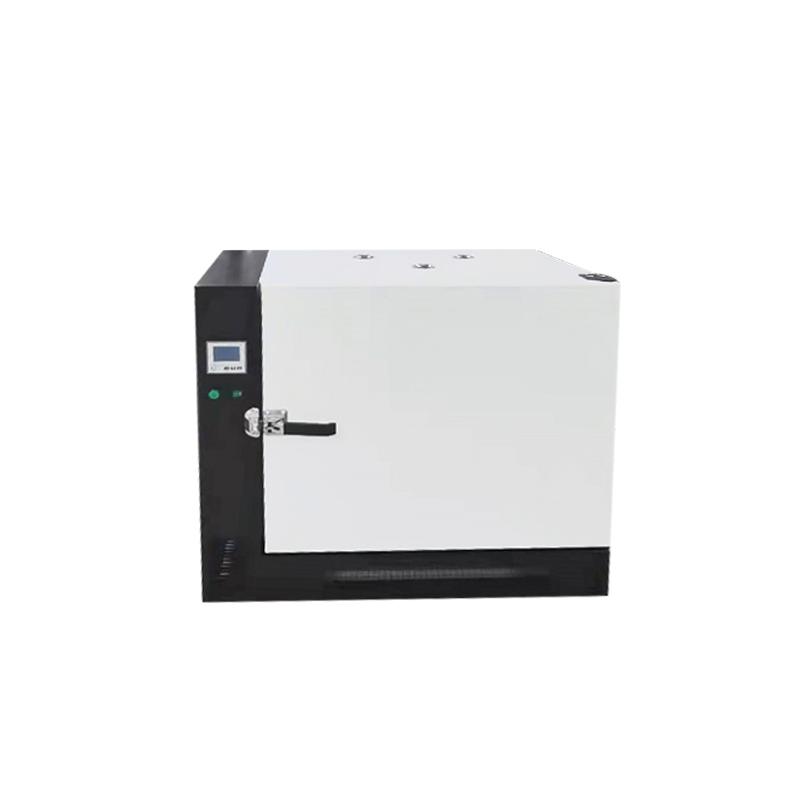

BENTING BGL-240GBT high temperature blast drying oven is a equipment specially designed for industrial and mining enterprises, laboratory outdoors, R & D institutions, etc., suitable for drying, baking, wax melting and other processes. The product adopts fan circulation thermostatic mode, Temperature range 100-500 ℃, with precise temperature control and multiple safety protection functions.
Features
1. The studio is made of good steel or stainless steel to ensure durability.
2. PID temperature control instrument with timing, power suppression and self-tuning functions, accurate and reliable temperature control.
3. Optional program temperature control function to meet complex process requirements.
4. The air circulation system is composed of low-noise fans and air ducts, effectively ensuring uniform temperature in the working room.
5. Optional overrun temperature automatic interrupt function to prevent experimental accidents.
6. Optional RS485 interface, which can be connected to a recorder and a computer to record changes in temperature parameters.
Principle
The high temperature blast drying oven generates heat through the stainless steel fin heating tube, and the hot air is evenly distributed into the working room by the fan circulation system to achieve rapid heating. The PID temperature control instrument monitors and adjusts the temperature in real time to ensure that the temperature is stable within the set range, and the optional program temperature control mode supports multi-stage temperature control.
Applications
Industrial and mining enterprises, laboratories, R & D institutions
Steps
1. Connect the power supply and ensure that the voltage is 380V 50Hz.
2. Use the touch button to set the desired temperature and Timer Range (0~ 9999min).
3. Start the equipment, the fan starts to circulate, and the heating tube works.
4. Monitor the LCD display temperature, and the device automatically runs the timing function.
5. After use, turn off the power and clean the equipment.
Notice
• Power supply voltage check before use.
• To avoid overloading, Load per shelf is 15KG.
• Pay attention to over-temperature alarm and leakage protection functions to ensure safe operation.
• Regularly maintain the air circulation system to prevent dust accumulation.
• Optional functions require additional configuration, please choose according to your needs.
