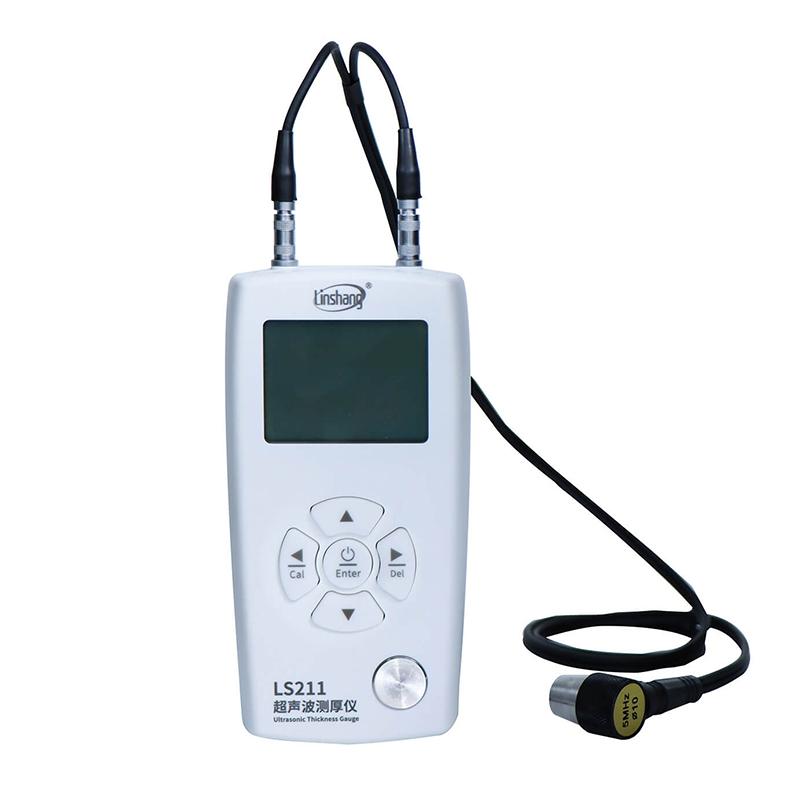

LINSHANG LS211 Ultrasonic Thickness Gauge High Accuracy 0.8-600 mm Measurement range

Name: LINSHANG LS211 Ultrasonic Thickness Gauge High Accuracy 0.8-600 mm Measurement range
Brand: LinShang
SKU: NB042133
Price: 455.0 USD
Availability: InStock

$ 455.00Ex works

Using 5MHz dual crystal probe, Measurement range 0.8-600 mm, accuracy of +/- 0.05mm, with 240 × 160 dot matrix LCD display and sound speed adjustable function, portable and lightweight only 230g, suitable for a variety of industrial environments.

Model

Get Quote

Category : Ultrasonic Thickness Gauge

Brand : LinShang

SKU : NB042133

Service :The delivery and service By NBCLab.Com

Overview

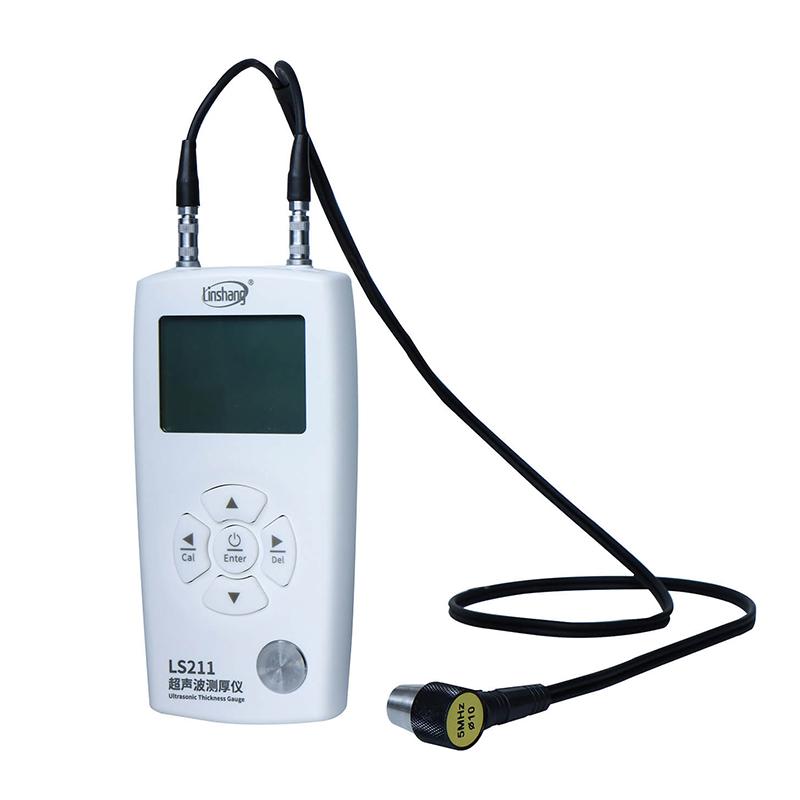

LINSHANG LS211 Ultrasonic Thickness Gauge is a portable measurement device for Film thickness measurement of metallic materials. Measurement range is wide, up to 0.8-600 mm on 45 #steel, with high resolution display and accurate Measurement accuracy, dual crystal probe design, Operating temperature range -10~ 50 ℃, suitable for industrial field use.

Features

1. Measurement range 0.8-600 mm (45 #steel) 2. High resolution display: 0.8-10 mm resolution 0.001mm, 10-100mm resolution 0.01mm, 100-600mm resolution 0.1mm 3. High Measurement accuracy: 0.8-10 mm accuracy +/- 0.05mm, 10-600mm accuracy +/- 0.5% H 4. Sound speed range 1000~ 9999m/s adjustable 5. Adopt 5MHz φ 10 dual crystal probe 6.240 × 160 dot matrix LCD display 7. Support mm/inch unit switching 8. Portable design, weight about 230g, powered by 2 AA alkaline dry batteries

Principle

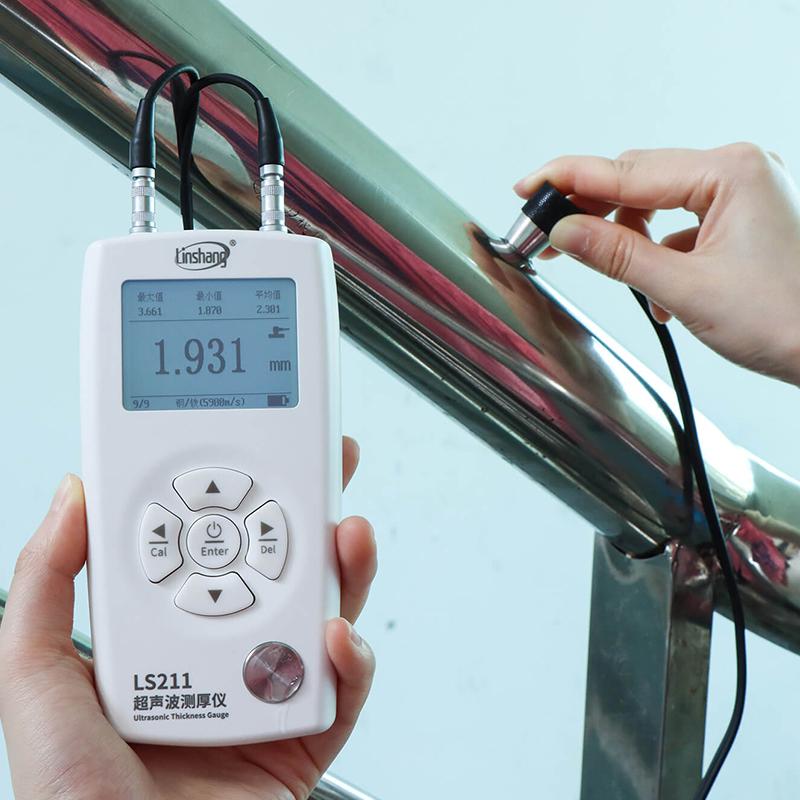

Ultrasonic Thickness Gauge works based on the principle of ultrasonic pulse reflection, the probe generates ultrasonic pulses to penetrate the material under test, and the reflection occurs when the ultrasonic wave encounters the other surface of the material.

Standards

JJF1126-2004

Notice

• Please confirm that the working environment temperature is within the range of -10~ 50 ℃ before use • Avoid use in condensation environment, relative humidity should not exceed 85% • When storing, ensure that the temperature is within the range of -10 to 60 ° C Use appropriate probes to ensure measurement accuracy • Regularly check the battery level to ensure normal measurement Measurement range limitations to avoid exceeding the instrument's capabilities

Measurement Range
0.8-600mm (45 #steel)
resolution
0.8-10mm：0.001mm；10-100mm：0.01mm；100-600mm：0.1mm
Measurement accuracy
0.8-10mm: +/- 0.05mm; 10-600mm: +/- 0.5% H, H is the standard value
Sound speed Range
1000~9999 m/s
Probe Specifications

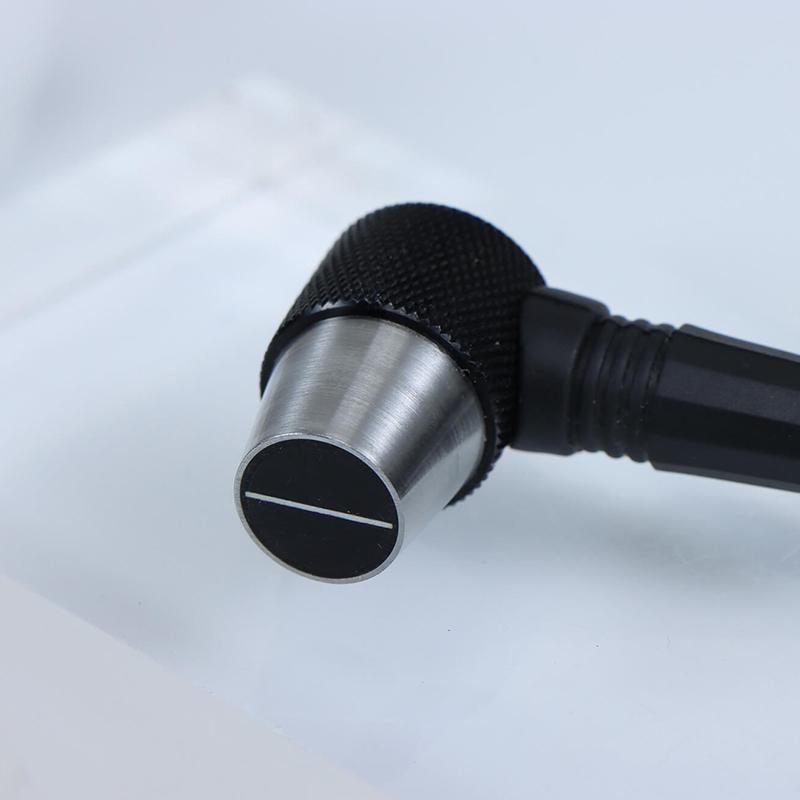

5MHz Φ 10 dual crystal probe
display screen
240 * 160 dot matrix LCD
unit
mm/inch
Power supply method
2 AA alkaline dry batteries
Host Size
142*72*28mm
weight
About 230g
Operating temperature Range
-10~ 50℃, 0~ 85% RH (no condensation)
Temperature Range
-10~ 60℃, 0~ 85% RH (no condensation)
Meet the standard
JJF1126-2004
