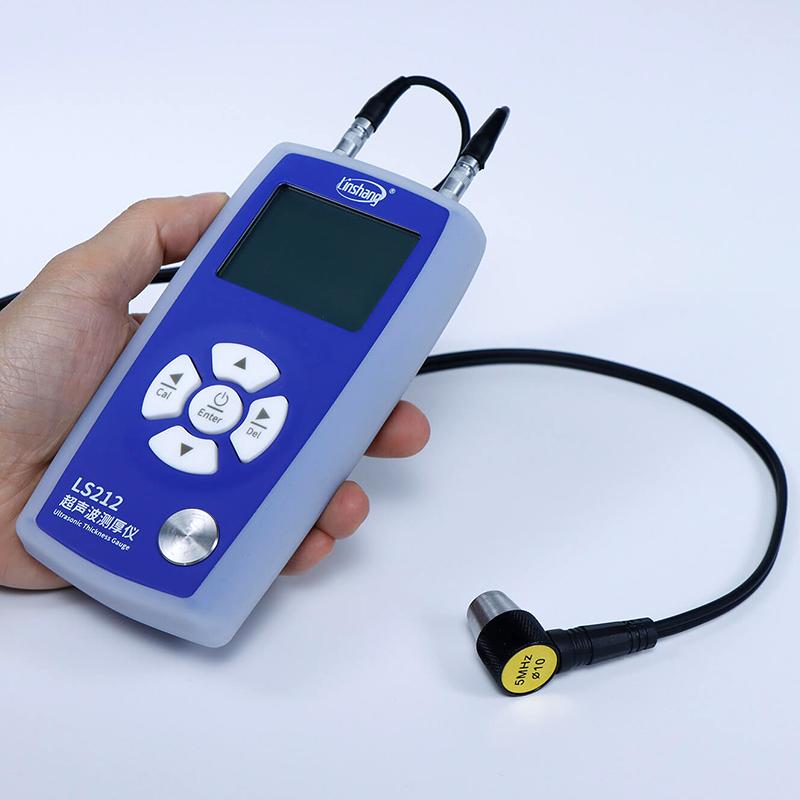

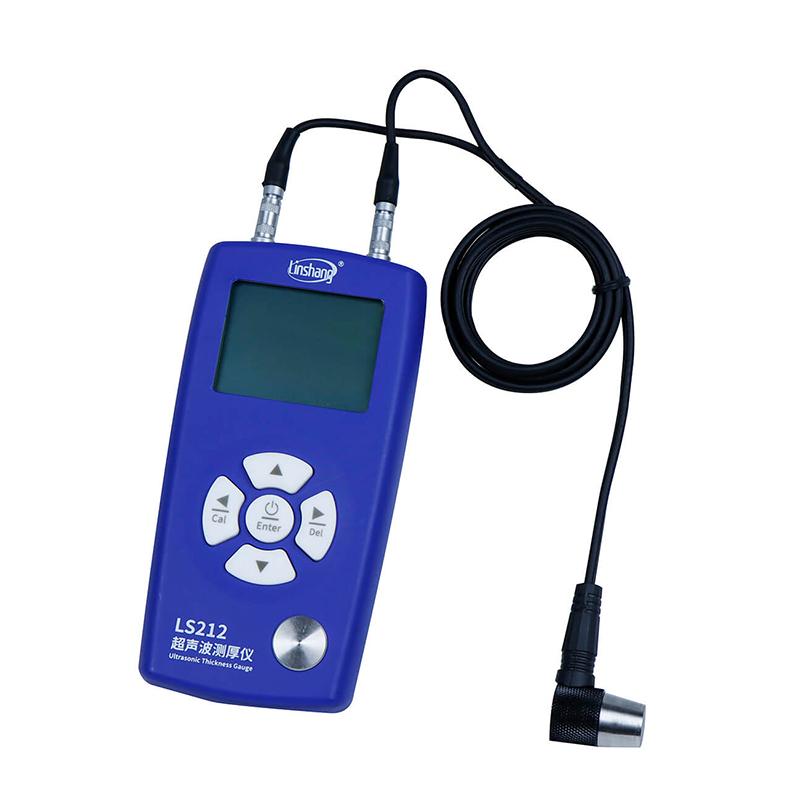

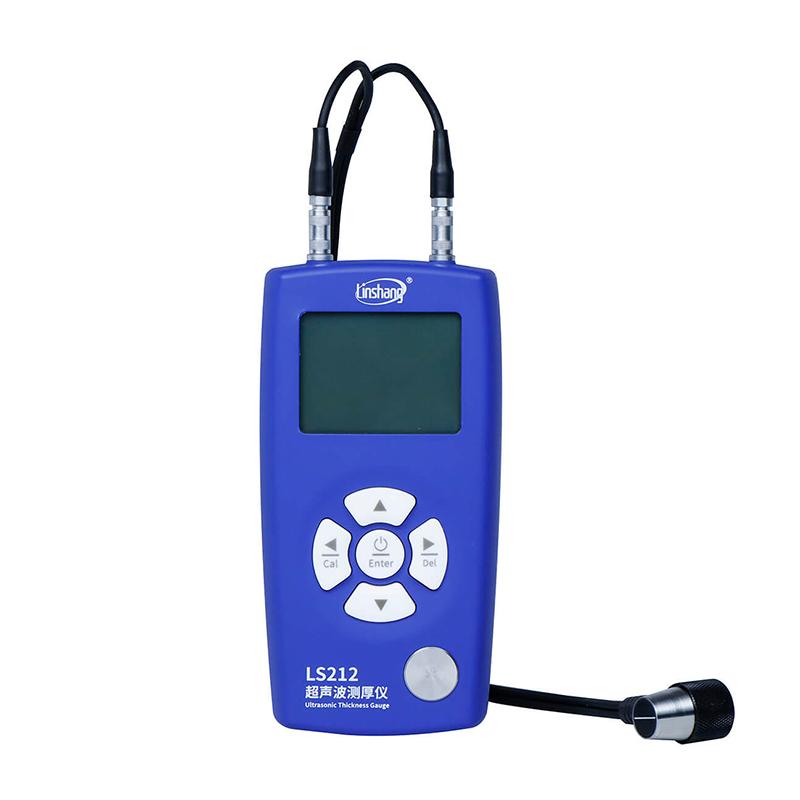

LINSHANG LS212 Ultrasonic Thickness Gauge High Accuracy Portable Metal Film thickness measurement instrument

Name: LINSHANG LS212 Ultrasonic Thickness Gauge High Accuracy Portable Metal Film thickness measurement instrument
Brand: LinShang
SKU: NB042134
Price: 280.0 USD
Availability: InStock

$ 280.00Ex works

Measurement range covers 0.8-350 mm, the highest accuracy is +/- 0.05mm, with 240 × 160 dot matrix LCD display, portable design weighs only 230g for field work.

Model

Get Quote

Category : Ultrasonic Thickness Gauge

Brand : LinShang

SKU : NB042134

Service :The delivery and service By NBCLab.Com

Overview

LINSHANG LS212 Ultrasonic Thickness Gauge is a portable measurement device for metal materials Film thickness measurement, Measurement range 0.8-350 mm (45 #steel), High Accuracy and resolution, Operating temperature -10~ 50 ℃.

Features

1. Measurement range 0.8-350 mm (45 #steel) 2. High display resolution 001/0.01/0.1mm adjustable 3. Measurement accuracy: 0.8-10 mm accuracy +/- 0.05mm, 10-350mm accuracy +/- 0.5% H 4. Wide sound speed range: 1000~ 9999m/s 5. Equipped with 5MHz φ 10 dual crystal probe 6.240 × 160 dot matrix LCD large screen display 7. Support mm/inch unit switching 8. Portable design, weight only about 230g 9. Powered by 2 AA alkaline dry batteries

Principle

Ultrasonic Thickness Gauge Based on the principle of ultrasonic pulse reflection, the probe generates ultrasonic waves to propagate in the material, encounters the reflection of the other surface of the material, and calculates the material Film thickness by measuring the ultrasonic round trip time.

Standards

JJF1126-2004

Steps

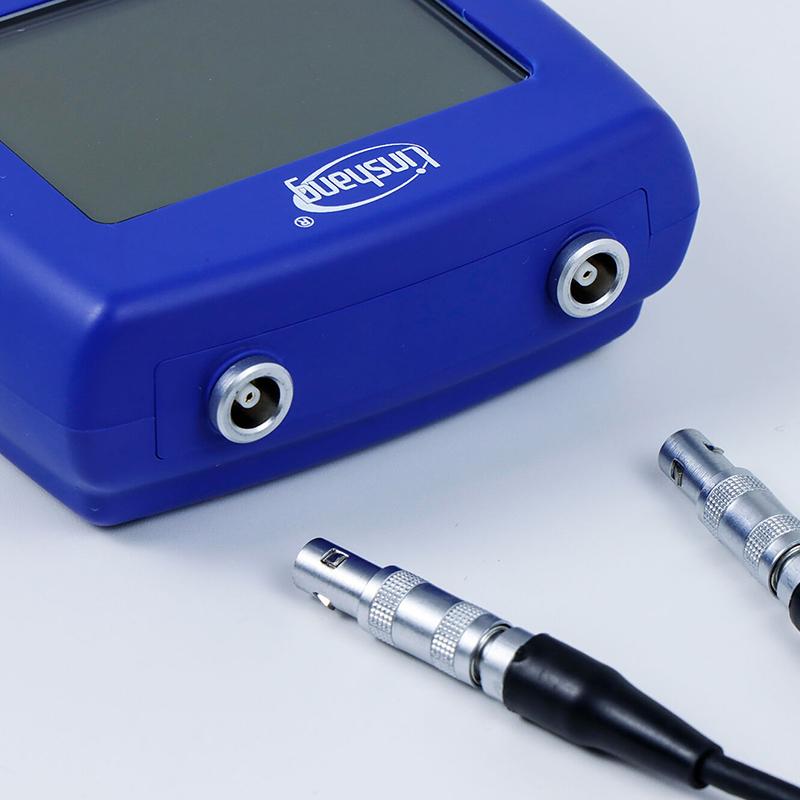

1. Install 2 AA alkaline dry batteries 2. Connect the 5MHz φ 10 dual crystal probe 3. Turn on and select Measurement unit (mm/inch) 4. Set the appropriate sound speed parameters (1000~ 9999m/s) 5. Place the probe in close contact with the surface of the tested material 6. Read Film thickness measurements on the display 7. Switch resolution mode as needed (001/0.01/0.1mm)

Notice

• Make sure the probe is in close contact with the measured surface before measurement • The working environment temperature is maintained within the range of -10~ 50 ℃ • relative humidity not more than 85% and no condensation • Use appropriate sound speed settings to ensure Measurement accuracy • Regularly check the battery level Storage temperature should be maintained at -10~ 60 ° C Avoid using and storing devices in extreme environments

Measurement Range
0.8-350mm (45 #steel)
resolution
0.8-10mm：0.001mm 10-100mm：0.01mm 100-350mm：0.1mm
Measurement accuracy
0.8-10mm: +/- 0.05mm 10-350mm: +/- 0.5% H, H is the standard value
Sound speed Range
1000~9999 m/s
Probe Specifications

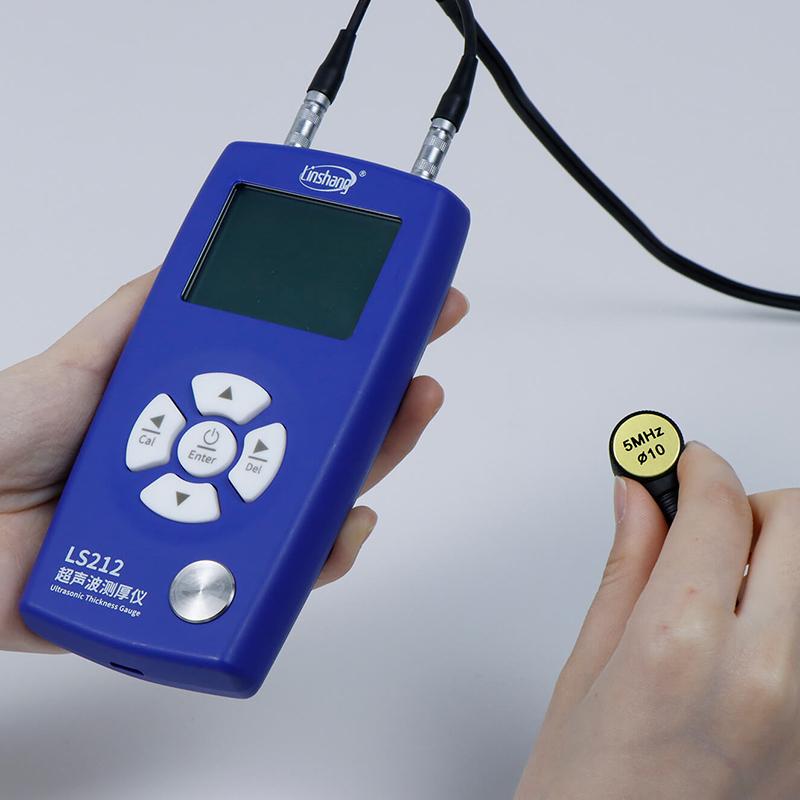

5MHz Φ 10 dual crystal probe
display screen
240 * 160 dot matrix LCD
unit
mm/inch
Power supply method

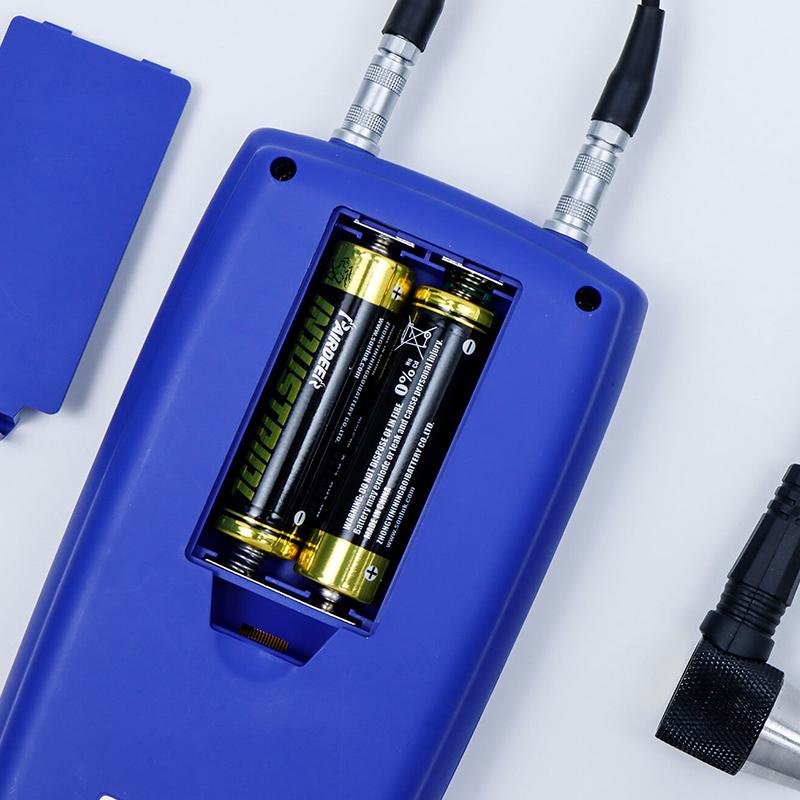

2 AA alkaline dry batteries
Host Size
142*72*28mm
weight
About 230g
Operating temperature Range
-10~ 50℃, 0~ 85% RH (no condensation)
Temperature Range
-10~ 60℃, 0~ 85% RH (no condensation)
Meet the standard
JJF1126-2004
