Overview

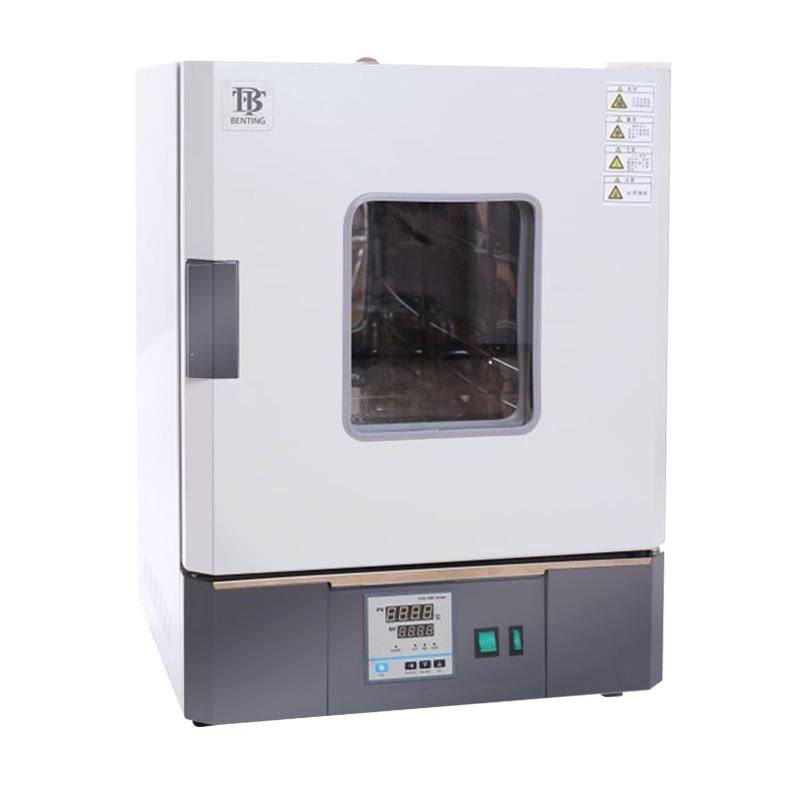

CBGL-140B electric air blowing dryer has the characteristics of excellent design, novel shape, excellent process, accurate temperature control, stable performance, easy maintenance and convenient operation. It is suitable for drying, baking, wax and heat treatment in laboratories of industrial and mining enterprises, scientific research institutes and other units.
Features
1. Novel vertical design, the box shell is made of good steel plate, the surface is treated by electrostatic spraying process, beautiful appearance, anti-corrosion and durability.
2. The four corners are in a circular arc transition, the Shelf spacing is adjustable, and the air duct side plate and the bottom heating cover have a quick-release structure, which is easy to clean.
3. Turbine centrifugal fan blade unique bottom drum and bottom heating reasonable cooperation, vertical double air duct vertical hot air circulation design, so that the indoor temperature distribution more uniform.
4. Switch-on fans can be turned on or off according to the user's different experimental requirements, ensuring the uniformity of temperature in the working room without blowing off powdery items.
5. Timing and over-temperature alarm function, with parameter memory call reply function protected by power outage and dead state data loss.
6. Optional 485 interface, which can be connected to a computer to remotely monitor the changing status of temperature parameters.
7. The box door with a new structure has good thermal insulation effect, and the middle is equipped with a double-decked tempered Glass large viewing window. It is equipped with a lock-type elastic adjustment door lock and a high-temperature silicone sealing strip to ensure good sealing and prevent heat loss.
8. Film thickness of liner stainless steel 1.2mm.
Principle
Adopting turbine centrifugal fan blade unique base drum and bottom heating reasonable coordination, vertical double air duct vertical hot air circulation design, so that the indoor temperature distribution more uniform.
Applications
Industrial and mining enterprises, scientific research institutes laboratory drying, baking, wax, heat treatment
Steps
1. Turn on or off the fan as needed.
2. Set Timer Range 1~ 9999min.
3. Temperature range RT + 10~ 300 ℃.
4. Temperature parameters can be remotely monitored by connecting to a computer through the optional 485 interface.
Notice
• You can choose to turn on or off the fan according to the experimental requirements to prevent blowing off powder foam items.
• Note that the device has a parameter memory call reply function, which can protect data loss caused by power outage and dead state.
• Power supply voltage is 220V/50HZ before use.
The working environment temperature should be in the range of RT + 5~ 40 ℃.
• Load per shelf is 15kg/pcs.
