Overview

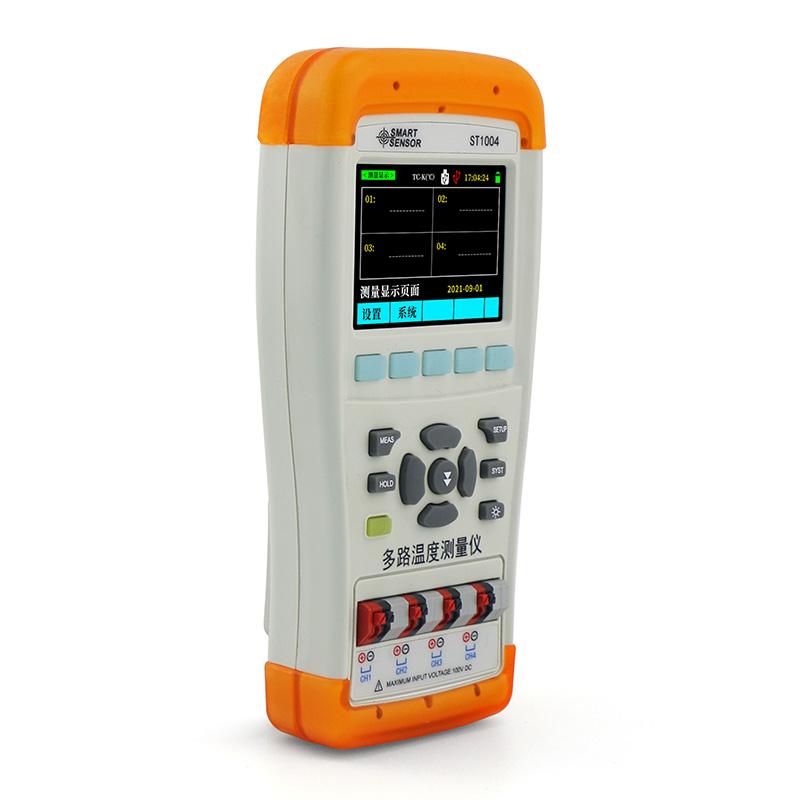

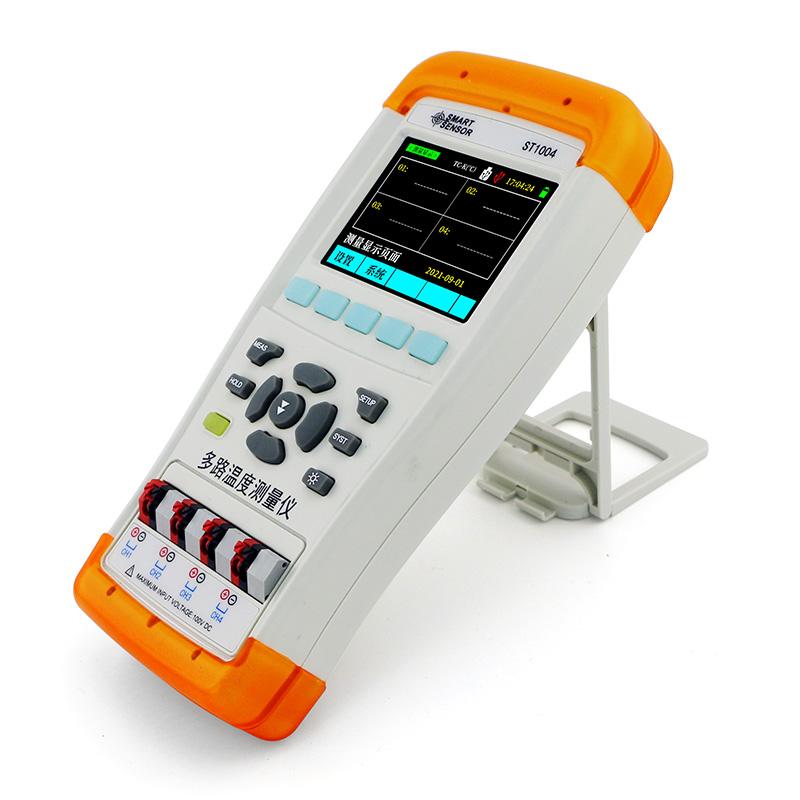

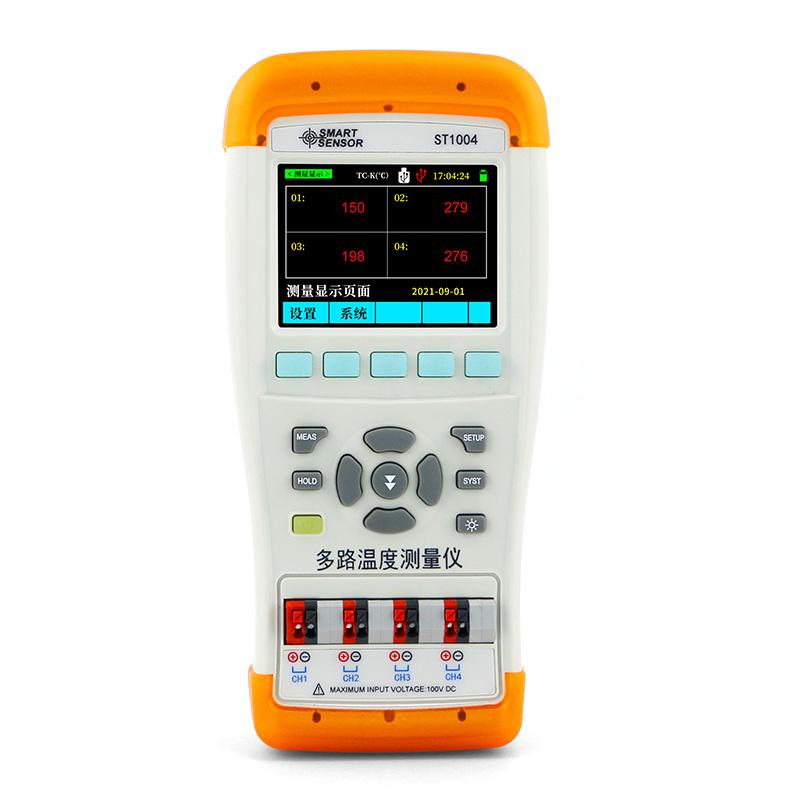

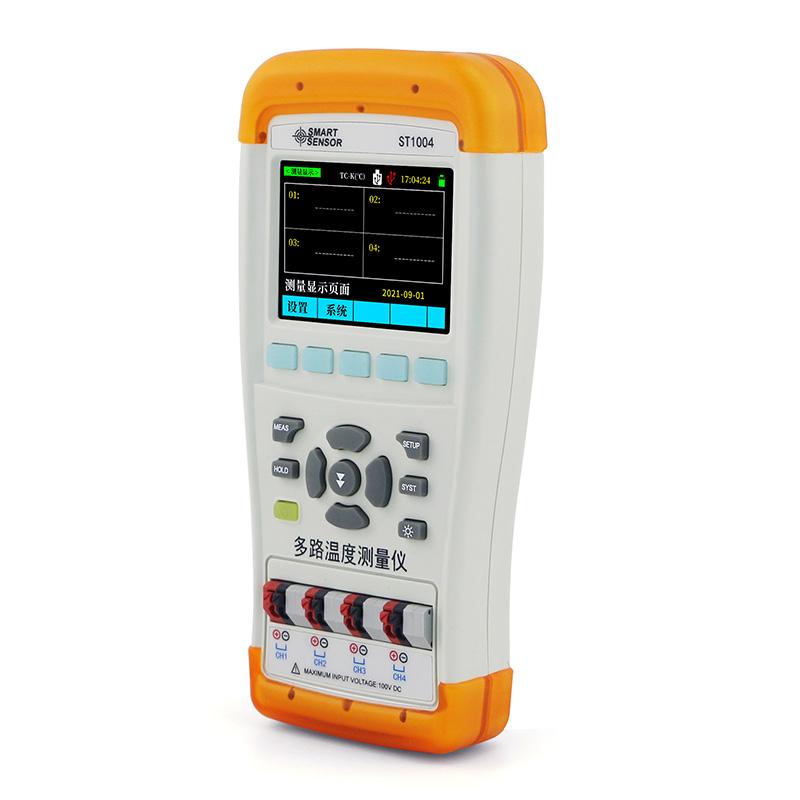

ST1004 handheld multi-channel thermometer is a high-performance temperature test instrument of SMART SENSOR brand, which can collect 4 channels of temperature data at the same time, with upper and lower limit alarm and communication transmission functions. The instrument is compatible with a variety of temperature sensors, with fast Response speed, stable data, and has the function of breaking even detection. Controlled by a high-performance 32-bit ARM microprocessor and using a true-color TFT-LCD display, it provides a full Chinese operation interface, supports keyboard and touch screen operation, bringing High Accuracy measurement and easy-to-use test experience.
Features
1.4 channels simultaneously collect temperature data
2. Compatible with multiple Thermocouple indexing numbers (J, K, T, E, S, N, B, R)
3. With upper and lower limit alarm functions, each channel can be set separately
4. Support break detection function
5. Controlled by 32-bit ARM microprocessor
6. True color TFT-LCD display, full Chinese operation interface
7. Support dual operation of keyboard and touch screen
8. Support large-capacity USB memory and MicroSD card
9. Standard USB-HID interface, supports remote control
10. Sampling rates available (slow, medium, fast)
Principle
The instrument is connected to the temperature sensor through four sets of inputs, and uses a high-performance 32-bit ARM microprocessor to process and calculate the collected temperature signal. By compatible with a variety of Thermocouple indexing numbers, the temperature signal is converted into a digital signal, and the measurement results are displayed on the true color TFT-LCD display screen. The instrument supports USB-HID interface communication protocol, and can complete data collection and control functions through computer remote control instructions.
Applications
Industrial temperature measurement, laboratory testing, environment monitoring, equipment maintenance, production process control
Standards
SCPI Directive Standard
Steps
1. Connect the temperature sensor to the corresponding input
2. Power on and select the desired language (Chinese/English)
3. Set the temperature unit (° C/° F)
4. Configure the upper and lower limit alarm values of each channel
5. Select Sampling rate (slow, medium, fast)
6. Turn on or off the quick sound function as needed
7. Adjust the backlight luminance (20%/40%/80%/100%)
8. Select the storage method (U disk/MicroSD card)
9. Initiation of measurement and data collection
10. Remote control via USB interface
Notice
• Please ensure that the temperature sensor is connected correctly and reliably
• Please confirm that the Thermocouple indexing number is set correctly before use
Avoid prolonged use in extreme environments
• Regularly check whether the instrument function is normal
• Please insert the storage device correctly as required
• Please ensure that the communication connection is stable when controlling remotely
• Operating temperature range of the instrument
• Please keep the instrument properly after use
