China TBJ-A1-DJ6 Automatic Film Applicator Wire Rod Lab Film Applicator Infinitely Variable Speed Spreader Rate 5~ 180mm/s

Name: China TBJ-A1-DJ6 Automatic Film Applicator Wire Rod Lab Film Applicator Infinitely Variable Speed Spreader Rate 5~ 180mm/s
Brand: zy
SKU: NB042293
Price: 2622.0 USD
Availability: PreOrder

$ 2622.00Ex works

Spreader speed 5~ 180mm/s stepless speed, wire Rod Spreader accuracy of +/- 0.001mm, standard High Accuracy imported wire Rod, support a variety of customized functions to meet different application needs.

Model

TBJ-A1-DJ6

Get Quote

Category : Automatic Film Applicator

Brand : zy

SKU : NB042293

Service :The delivery and service By NBCLab.Com

Overview

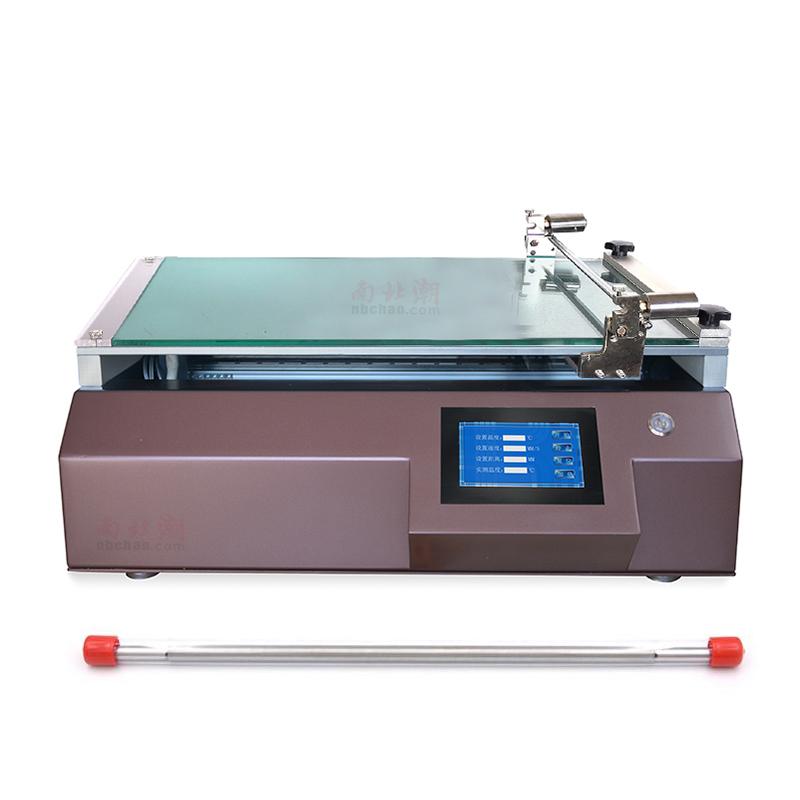

The TBJ-A1 Lab Film Applicator is a newly upgraded product for Spreader accurate wet-film on different substrates, which can repeatedly and continuously prepare smooth, flat and flawless test samples. The device comes standard with 1 China rod and 1 imported rod with an accuracy of up to 1μm.

Features

1. Spreader speed range: 5~ 180mm/s (< 5mm/s can be customized) 2. High Accuracy Spreader: Wire Spreader accuracy up to +/- 0.001mm 3. Infinitely variable speed control 4. Aluminum Alloy Spreader Material 5. Optional accessories are rich: leakage tank, substrate fixing fixture, fine-tuning horizontal height support foot device, Glass plate, silicone pad and weight, film width control baffle 6. Customizable functions: jet system device, UV solid inclusion device, automatic inking system

Principle

The device uses a wire rod Spreader mode. By controlling the Spreader rate and the wire rod specification, the wet-film with accurate Film thickness is repeatedly and continuously Spreader on different substrates.

Applications

Companies, Research Institutions, Universities & colleges

Steps

1. Spreader substrate Step 2 Choose the right cable 3. Set Spreader Rate 4. Spreader the device 5. Remove the sample after completing the Spreader

Spreader mode
Wire Spreader
Spreader rate
5~ 180mm/s (< 5mm/s can be customized)
Coating Size
400*400mm
Spreader Stick Specifications
1-571.5 μm (Spreader Film thickness determined according to rod model)
Spreader accuracy
±0.001mm
speed control
Infinitely variable speed
power supply
Voltage 220V 50HZ
Spreader material
aluminum alloy
optional accessories
Leakage tank, substrate fixture, trimming horizontal height support foot device, Glass plate, Silicone pad and weight (for applications with uneven film thickness of Spreader substrate), film width control baffle
customizable function
Jet system device, UV solid inclusion device, automatic inking system

[Q] Is the price listed on the website the final cost for overseas purchases?

[A] No, it isn't. This is the ex-factory price of the product in the Chinese Mainland. In addition to this price, buyers from different countries need to account for additional costs such as shipping fees, tariffs, and others. For specific regional quotes, please consult our customer service or fill out a quotation form.

[Q] What is the specific process for purchasing the product?

[A] First, please click on the quotation form on the website and fill in detailed information. Our customer service personnel will then send you a quotation based on your specific country and region, confirming payment and delivery methods. Following this, we proceed with contract signing, payment, and shipment. You can then await delivery.

[Q] What should I do if the instrument I purchase needs repair?

[A] After-sales repair for overseas instruments is an unavoidable issue. Our repair terms stipulate that the sender is responsible for the shipping and insurance costs incurred for the repair. Repairs within the warranty period are free, while repair costs beyond the warranty period are determined based on the actual situation.
