$ 3945.00Ex works
Multi-wing air supply cycle is used to ensure uniform temperature and humidity, support 120 sets of program control and data export functions, Temperature Fluctuation +/- 0.5 ℃, to meet a variety of industrial standard testing requirements.
Category : Temperature Humidity Chamber
Brand : Apkjgroup
SKU : NB042322
Service :The delivery and service By NBCLab.Com

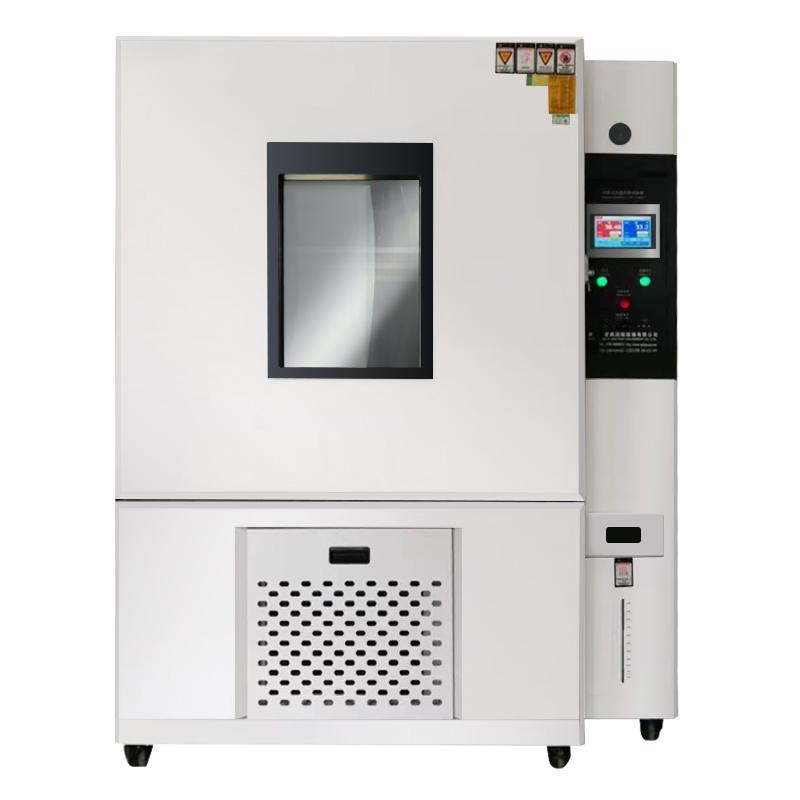

APKJ AP-HX-50A programmable humidity chamber mainly provides complex high and low temperature alternating test environment and test conditions for the testing of electronic parts, industrial materials, finished product research and development, production, and inspection. The device adopts a 7-inch large touch AP-900 intelligent programmable temperature and humidity controller, supports 120 programs, 100 segments per program, and has USB connection, data export and import and remote communication functions.
1. Adopt a multi-wing blower for strong air circulation to avoid any dead ends and ensure uniform indoor temperature and humidity distribution 2. Complete safety protection device, automatically displays the fault status and cuts off the power supply in case of abnormal conditions 3. The controller can be connected to the computer through the LAN interface for remote control 4. Adopt original imported Compressor sets, including French Taikang and Japanese Hitachi brands 5. Equipped with High Accuracy Sensor and Intelligent Control System, Temperature resolution up to 0.01 ℃ 6. The box door adopts double heat insulation and air tightness to effectively isolate external temperature leakage
The equipment is mainly composed of a combination of control panel, switchboard, thermal insulation compartment, blower, heater, humidifier and freezer. Accurate temperature and humidity control is achieved through the cooperative work of refrigeration system, heating system and air circulation system. The refrigeration system adopts primary compression or binary cascade refrigeration method. The heating system uses nickel-chromium heater. The air circulation system realizes uniform air flow through circulating air duct and long-axis motor.
Electronics Communication, Chemical, Hardware, Rubber, Toys, Scientific Research
GB/T10589-2008、GB/T10586-2006、GB/T10592-2008、GB/T2423.1-2008、GB/T2423.2-2008、GB/T2423.3-2006、MIL-STD810D、GB/T2423.4-2008、GJB150.9-1986、GB2423.34-2012
1. Confirm that the installation site meets the requirements: no strong vibration, flat ground, well ventilated, no strong electromagnetic field 2. Configure the corresponding capacity air or power switch to ensure that the power supply meets the requirements of AC220V 3. Connect the necessary ventilated pipes, power cables, gas sources and water sources and other external environment items 4. Set test programs and parameters through the controller 5. Start the device for testing 6. Monitor the test process and export test data via USB if necessary
Prohibition of testing or storage of flammable, explosive or volatile matter specimens • Prohibition of testing or storage of samples of corrosive substances • Prohibition of testing or storage of biological samples • Prohibition of testing or storage of samples of strong electromagnetic emission sources • There should be no strong vibration and strong electromagnetic field around the equipment • Ensure that the power supply conditions meet the requirements: single-phase two-wire + protective ground wire, voltage AC (220 +/- 10) V • Protective ground wire grounding resistance must be less than 4Ω The working environment temperature should be kept at 5~ 30 ℃ • Working environment humidity should be ≤ 85% • Regularly check the Compressor high voltage protection and overcurrent and overheat protection device
It is recommended to use a programmable constant temperature and humidity test chamber. It can accurately control the temperature and humidity range you need, with minimal temperature fluctuations and well-controlled humidity deviations. This equipment features a touchscreen controller, making programming convenient and enabling the simulation of complex environmental changes, making it suitable for reliability verification of electronic products.
For temperature and humidity cycling tests on materials such as rubber and chemicals, programmable constant temperature and humidity test chambers are a common choice. This is because they can automatically perform alternating cycles of high and low temperatures and humidity according to preset programs, simulating real-world environments or accelerated aging conditions. The equipment is equipped with powerful circulating fans to ensure uniform temperature and humidity distribution, avoiding testing dead spots, and making your material test results more accurate and reliable.
If there are many testing procedures, it is recommended to focus on the programming capability of the controller. It is advisable to choose equipment that supports multi-group and multi-segment program editing, such as devices capable of storing hundreds of groups of programs, with each group further divided into multiple steps. This way, you can pre-set and store different testing conditions, and simply retrieve them when needed for convenience. Additionally, it is best to select equipment with data logging and export functions to facilitate subsequent analysis and reporting.
