$ 4280.00Ex works
With 7-inch touch screen controller, supports 120 programs and 100-segment settings. Multi-wing air supply circulation ensures uniform temperature and humidity, Temperature Fluctuation +/- 0.5 ℃, Humidity deviation +/- 2% R.H.
Category : Temperature Humidity Chamber
Brand : Apkjgroup
SKU : NB042327
Service :The delivery and service By NBCLab.Com

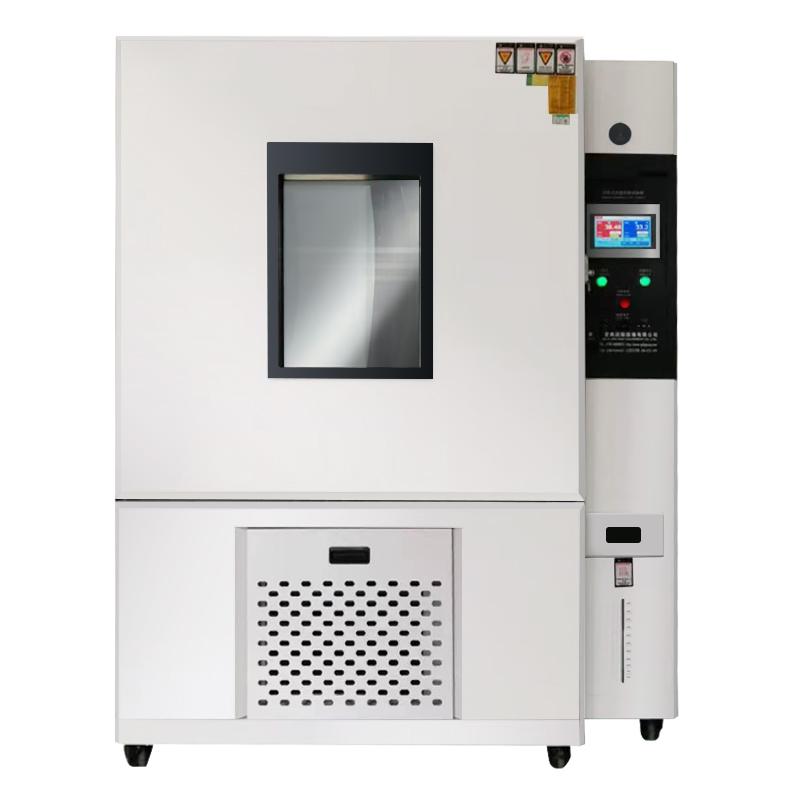

APKJ AP-HX-100A programmable humidity chamber mainly provides complex high and low temperature alternating test environment and test conditions for the testing of electronic parts, industrial materials, finished product research and development, production and inspection. The device adopts 7-inch super touch AP-900 intelligent programmable temperature and humidity controller, supports 120 programs, 100 segments per program, and has USB connection, data recording export and communication functions.
1. Adopt a multi-wing blower for strong air circulation to avoid any dead ends and ensure uniform indoor temperature and humidity distribution 2. The controller can be connected to the computer via the LAN interface to achieve programming, data collection, remote control, and other functions 3. Complete safety protection device, automatically displaying fault status and cutting off power when abnormal 4. Adopt original imported Compressors, including French Taikang and Japanese Hitachi brands, to ensure efficient cooling and stable operation 5. Equipped with high-quality components, such as American Henry Oil, Danish Danfoss Filter, American DuPont environmentally friendly refrigerant, etc
The programmable humidity chamber is mainly composed of a control panel, switchboard, thermal insulation compartment, blower, heater, humidifier, and freezer. The temperature and humidity are precisely controlled by a microcomputer program controller, and the temperature is adjusted by a refrigeration system and a heating system. Humidifier controls humidity. Multi-wing blower ensures uniform distribution of indoor temperature and humidity.
Electronics Communication, Chemical, Hardware, Rubber, Toys, Scientific Research
GB/T10589-2008、GB/T10586-2006、GB/T10592-2008、GB/T2423.1-2008、GB/TT2423.2-2008、GB/T2423.3-2006、MIL-STD810D、GB/T2423.4-2008、GJB150.9-1986、GB2423.34-2012、MIL-STD883C
1. Ensure that the equipment is installed in a well-ventilated site without strong vibration, flat ground 2. Configure the corresponding capacity air or power switch to provide AC220V power supply 3. Set test programs and parameters through the controller 4. Start the device to run the test program 5. Monitor the testing process and data logging 6. Power off the device after the test is completed
Prohibition of testing or storage of flammable, explosive or volatile matter specimens • Prohibition of testing or storage of samples of corrosive substances • Prohibition of testing or storage of biological samples • Prohibition of testing or storage of samples of strong electromagnetic emission sources • There should be no strong vibration and strong electromagnetic field around the equipment Equipment should be free from flammable, explosive, corrosive substances and dust • Appropriate use and maintenance space should be left around the equipment • power requirements Single-phase two-wire + protective ground wire, voltage range AC (220 +/- 10) V • The grounding resistance of the protective ground wire should be less than 4Ω.
Recommend a programmable temperature and humidity test chamber. It supports 120 programs, each with 100 segments, allowing flexible simulation of complex alternating high and low temperatures as well as constant humidity environments, making it suitable for electronic product development and reliability testing. The controller features a USB interface for convenient data export, comes standard with RS232 communication, and can be optionally equipped with RS485 for networking multiple devices.
It is recommended to use a constant temperature and humidity test chamber. This type of equipment can precisely control temperature and humidity, simulating the high-temperature and high-humidity environments that rubber products may encounter during actual use or storage, thereby evaluating their aging performance and lifespan. It complies with multiple national military standards and industry regulations, ensuring the authority of the test results.
The controller is key, so it’s advisable to choose one with a large touchscreen and programmability. This way, you can design complex temperature and humidity variation curves on a computer, such as cycling from high temperatures to rapid cooling, simulating the various harsh conditions the product may encounter. The data can be automatically recorded and exported, making it easier to generate analysis reports and saving a lot of effort.
