$ 4503.00Ex works
Equipped with 7-inch touch controller, supports 120 sets of programs and 100 segments of settings, uses multi-wing air supply circulation to ensure uniform temperature and humidity, Temperature Fluctuation +/- 0.5 ℃, humidity deviation +/- 2% R.H., with complete safety protection and data export function.
Category : Temperature Humidity Chamber
Brand : Apkjgroup
SKU : NB042332
Service :The delivery and service By NBCLab.Com

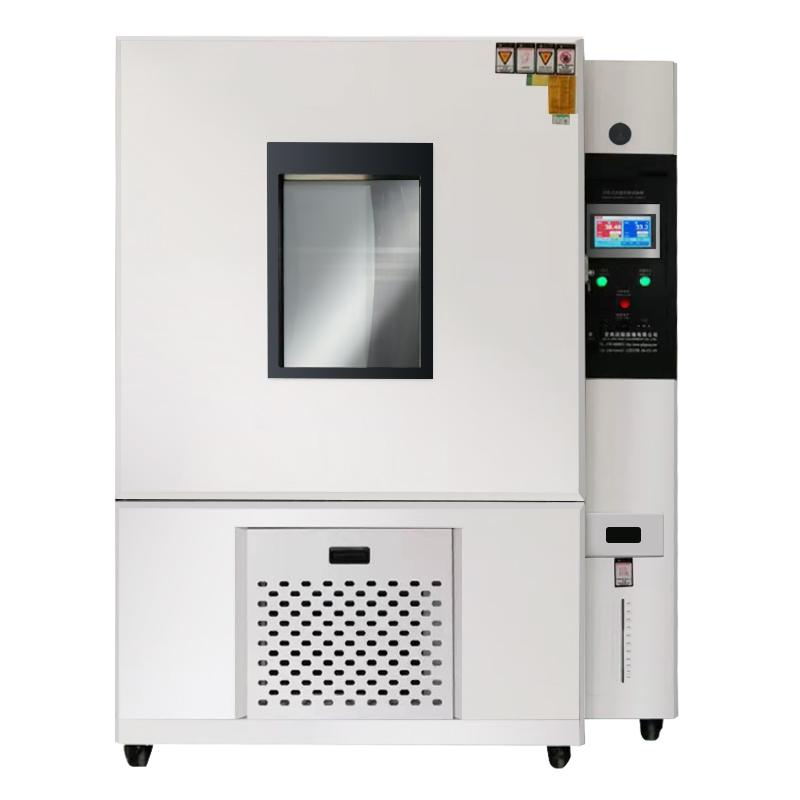

APKJ AP-HX-150A programmable humidity chamber mainly provides complex high and low temperature alternating test environment and test conditions for the testing of electronic parts, industrial materials, finished product research and development, production and inspection. The device adopts 7-inch super touch AP-900 intelligent programmable temperature and humidity controller, supports 120 programs, 100 segments per program, and has USB connection, data export and import and remote communication functions.
1. Adopt a multi-wing blower for strong air circulation to avoid any dead ends and ensure uniform indoor temperature and humidity distribution 2. Complete safety protection device, automatically displays the fault status and cuts off the power supply in case of abnormal conditions 3. The controller can be connected to the computer through the LAN interface to realize the remote control function 4. Adopt original imported Compressor sets, including French Taikang and Japanese Hitachi brands 5. Equipped with DuPont environmental protection refrigerant R-404/R23, with good thermophysical performance 6. The studio is made of SUS304 stainless steel, and the outer box is Cold rolled steel plate advanced baking paint
The equipment is mainly composed of a combination of control panel, switchboard, thermal insulation compartment, blower, heater, humidifier and freezer. Temperature control is realized through the refrigeration system, and the original imported Compressor is used to complete heat exchange with evaporators, condensers and other components. Humidity control is realized through the humidification system, and the multi-wing blower is used for strong air supply circulation to ensure uniform distribution of temperature and humidity.
Electronics Communication, Chemical, Hardware, Rubber, Toys, Scientific Research
GB/T10589-2008、GB/T10586-2006、GB/T10592-2008、GB/T2423.1-2008、GB/TT2423.2-2008、GB/T2423.3-2006、MIL-STD810D、GB/T2423.4-2008、GJB150.9-1986、GB2423.34-2012、MIL-STD883C
1. Confirm that the installation site meets the requirements: no strong vibration, flat ground, well ventilated 2. Check the power supply conditions: configure the corresponding capacity air or power switch, voltage AC220V +/- 10% 3. Connect the power supply: single-phase two-wire + protective ground wire, the ground resistance is less than 4Ω 4. Set the test program through the controller: 120 sets of programs can be set, each set of 100 segments 5. Start the device to run the test 6. Monitor the test process and export test data via USB
○ It is forbidden to test or store flammable, explosive or volatile matter It is forbidden to test or store corrosive substances Prohibition of testing or storage of biological samples It is prohibited to test or store samples of strong electromagnetic emission sources There should be no strong vibration or strong electromagnetic field around the equipment Equipment should be free from flammable, explosive, corrosive substances and dust ○ Appropriate use and maintenance space should be left around the equipment ○ Power supply voltage range must not exceed AC220V +/- 10% ○ The working environment temperature should be within the range of 5~ 30 ℃ ○ Working environment humidity should be ≤ 85%
Recommend a programmable constant temperature and humidity test chamber. It is suitable for the research and development and reliability testing of electronic products, as it can accurately simulate complex alternating environments ranging from room temperature to high temperatures (e.g., 150°C) and humidity levels from 20% to 98% RH. Its core advantage lies in the inclusion of an intelligent programmable controller, which allows for the configuration of up to 120 test programs, each with 100 steps. This enables comprehensive simulation of the harsh temperature and humidity conditions that products may encounter during actual use or storage, ensuring thoroughness and accuracy in testing.
The controller is the brain of the environmental chamber, and when selecting one, special attention should be paid to programming flexibility and data management capabilities. A good controller should function like a large-screen smartphone, with an intuitive interface that allows for easy configuration of complex temperature and humidity change curves. It should also offer an ample number of program groups and steps to accommodate various testing scenarios. Data logging is equally important—ideally, it should allow for direct export of complete test history data via a USB drive, facilitating subsequent analysis and report generation. If the laboratory requires centralized network management, it is essential to check whether the controller supports communication interfaces, enabling remote control and monitoring of multiple devices from a computer for added convenience.
