Overview

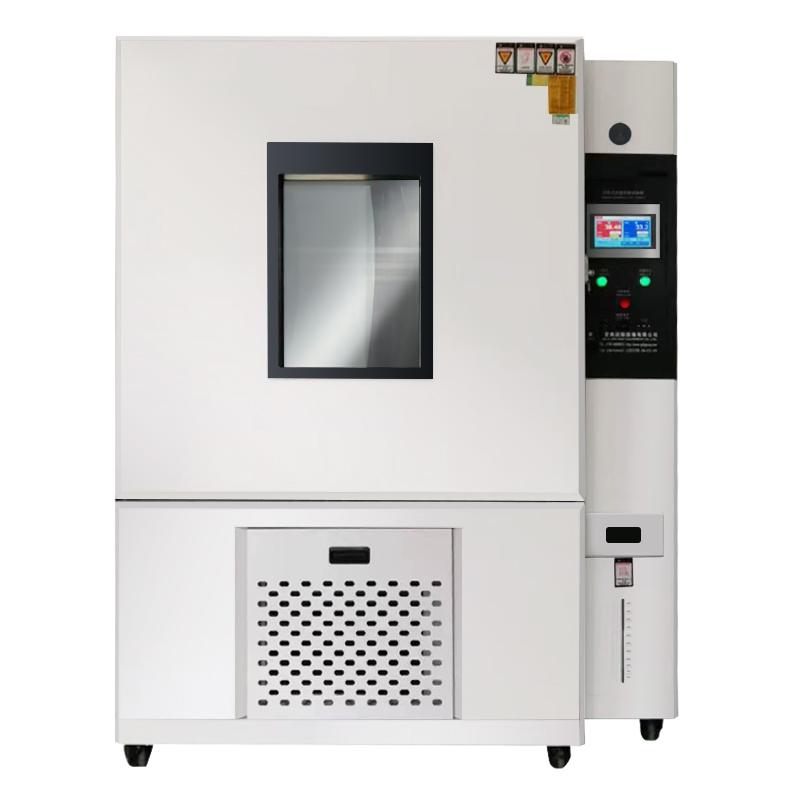

APKJ AP-HX-150B programmable humidity chamber mainly provides complex high and low temperature alternating test environment and test conditions for the testing of electronic parts, industrial materials, finished product research and development, production and inspection. The equipment adopts 7-inch large touch AP-900 intelligent programmable temperature and humidity controller, supports 120 programs, each program has 100 segments, and has program circulation, connection and data recording functions.
Features
1. Adopt 7-inch large touch AP-900 intelligent programmable temperature and humidity controller, support 120 sets of programs, each set of 100 segments
2. Remote control can be achieved by connecting to the computer via the LAN interface
3. The multi-wing blower has strong air circulation to ensure uniform distribution of temperature and humidity
4. Complete safety protection device, automatically displaying fault status and providing troubleshooting methods
5. Using original imported Compressors, including French Taikang and Japanese Hitachi brands
6. Studio volume 150L, Temperature range -20 ℃~ + 150 ℃, Moisture control range 20~ 98% R.H
Principle
The equipment is mainly composed of control panel, switchboard, thermal insulation compartment, blower, heater, humidifier and freezer. Through the strong air supply circulation of multi-wing blower, any dead angle is avoided, and the indoor temperature and humidity are evenly distributed. The refrigeration system adopts the original imported Compressor, and cooperates with evaporator, condenser and other components to realize temperature control.
Applications
Electronics Communication, Chemical, Hardware, Rubber, Toys, Scientific Research
Standards
GB/T10589-2008、GB/T10586-2006、GB/T10592-2008、GB/T2423.1-2008、GB/TT2423.2-2008、GB/T2423.3-2006、MIL-STD810D、GB/T2423.4-2008、GJB150.9-1986、GB2423.34-2012、MIL-STD883C
Steps
1. Ensure that there is no strong vibration in the installation site, and the ground is flat and ventilated
2. Configure the corresponding capacity air or power switch to provide AC220V power supply
3. Connect the controller to the computer for programming
4. Set test parameters and cycle conditions
5. Start the device for testing
6. Monitor the test process and data logging through the controller
Notice
○ Prohibition of testing or storage of flammable, explosive or volatile matter specimens
○ Prohibition of testing or storage of samples of corrosive substances
Prohibition of testing or storage of biological samples
Prohibition of testing or storage of samples of strong electromagnetic emission sources
No strong vibration and strong electromagnetic field around the equipment
○ No flammable, explosive, corrosive substances and dust around the equipment
○ The grounding resistance of the protective ground wire should be less than 4Ω.
○ Working environment temperature 5~ 30 ℃, humidity ≤ 85%
