$ 5395.00Ex works
Multi-wing air supply circulation to ensure uniform insulation field, equipped with 120 sets of program storage and USB data export function, Temperature Fluctuation +/- 0.5 ℃, support LAN remote control and fault self-diagnosis.
Category : Temperature Humidity Chamber
Brand : Apkjgroup
SKU : NB042337
Service :The delivery and service By NBCLab.Com

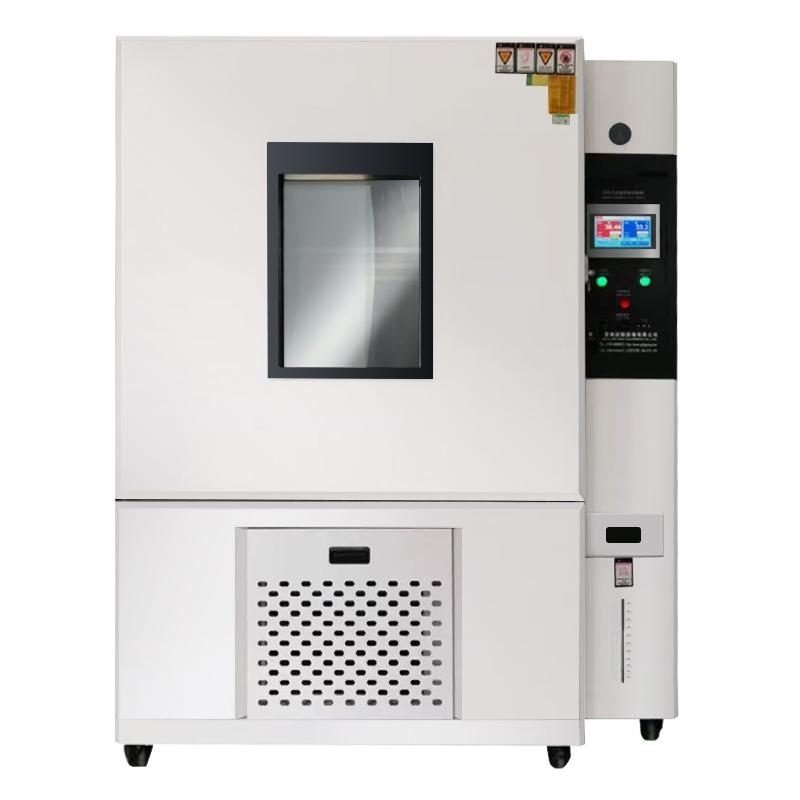

The programmable humidity chamber AP-HX-225A is an environmental test equipment produced by APKJ, which mainly provides complex high and low temperature alternating test environments and conditions for electronic parts, industrial materials, finished product research and development, production, and inspection. The equipment adopts a 7-inch large touch AP-900 intelligent programmable temperature and humidity controller, which supports 120 sets of programs, each set of 100 segments, with program circulation, connection and data recording functions.
1. Adopt 7-inch large touch AP-900 intelligent programmable temperature and humidity controller, support 120 sets of programs, each set of 100 segments, can set the program full cycle, partial cycle, program connection and final action 2. The controller can be connected to the computer via the LAN interface to realize functions such as programming, data collection, and remote control switches 3. Utilize a multi-wing blower for strong air circulation to avoid any dead ends and ensure uniform indoor temperature and humidity distribution 4. Complete safety protection device, automatically displaying fault status when abnormal, cutting off power and providing Troubleshooting method 5. Mainly composed of control panels, switchboards, thermal insulation compartments, blowers, heaters, humidifiers, and refrigerators, providing a variety of specifications, sizes, and conditions
The equipment works together through the refrigeration system, heating system and air circulation system to achieve temperature and humidity control. The refrigeration system adopts the original imported Compressor (France Taikang or Japan Hitachi) and environmentally friendly refrigerant, and heat exchange is carried out through evaporator, condenser and other components; The heating system uses nickel-chromium heater to provide heating; The air circulation system drives the air flow through the long axis motor and wind wheel to ensure the uniform distribution of temperature and humidity. The control system monitors and adjusts the environment parameters in real time through microcomputer program controller and Sensor.
Electronics Communication, Chemical, Hardware, Rubber, Toys, Scientific Research
GB/T10589-2008、GB/T10586-2006、GB/T10592-2008、GB/T2423.1-2008、GB/T2423.2-2008、GB/T2423.3-2006、MIL-STD810D、GB/T2423.4-2008、GJB150.9-1986、GB2423.34-2012、MIL-STD883C
1. Ensure that the installation site has no strong vibration, the ground is flat, well ventilated, no strong electromagnetic field, flammable and explosive corrosive substances 2. Configure independent AC220V power supply to meet single-phase two-wire + protected ground wire, voltage range AC (220 +/- 10) V, frequency (50 +/- 0.5) Hz, ground resistance less than 4Ω 3. Connect external environment items such as power supply, gas source, water source (need to be brought by the user) 4. Set the temperature and humidity parameters and cycle mode through the controller or computer design program 5. Start the device, monitor the running status and record data 6. After the test is completed, turn off the device and export the data
Prohibit the testing or storage of flammable, explosive, volatile matter, corrosive substances, biological samples, strong electromagnetic emission source samples • There should be no strong vibration or strong electromagnetic field around the equipment, and there should be appropriate maintenance space • The power supply needs to be independently configured to meet voltage, frequency and grounding requirements • When installing, ensure that ventilated pipes, power cables, gas sources, water sources and other external items are complete • Check whether the safety protection device is normal before operation to avoid abnormal operation
Recommend a programmable temperature and humidity test chamber. It fully meets the wide temperature range of 0~150°C and humidity control of 20%~98% RH, with a temperature uniformity of up to ±2.0°C, making it suitable for reliability tests such as those for electronic components, which require high uniformity in the temperature field. This device adopts a multi-wing air circulation system, which effectively ensures uniform distribution of temperature and humidity inside the chamber, guaranteeing the accuracy of test results.
For high-temperature and high-humidity storage testing of products, it is recommended to use a programmable constant temperature and humidity test chamber. The core of such testing lies in maintaining stable high-temperature and high-humidity conditions over extended periods to evaluate material aging resistance, insulation performance, or corrosion of metal components. This equipment features precise temperature and humidity control with excellent uniformity, enabling long-term, continuous, and stable testing in strict accordance with relevant national standards (such as GB/T2423.3 constant humidity test). It is a common choice for laboratory environmental simulation.
