Overview
APKJ AP-HX-225C programmable humidity chamber mainly provides complex high and low temperature alternating test environment and test conditions for the testing of electronic parts, industrial materials, finished product research and development, production and inspection. The equipment adopts 7-inch large touch AP-900 intelligent programmable temperature and humidity controller, supports 120 sets of programs, each set of 100 segments, and has program circulation, connection and data recording functions.
Features

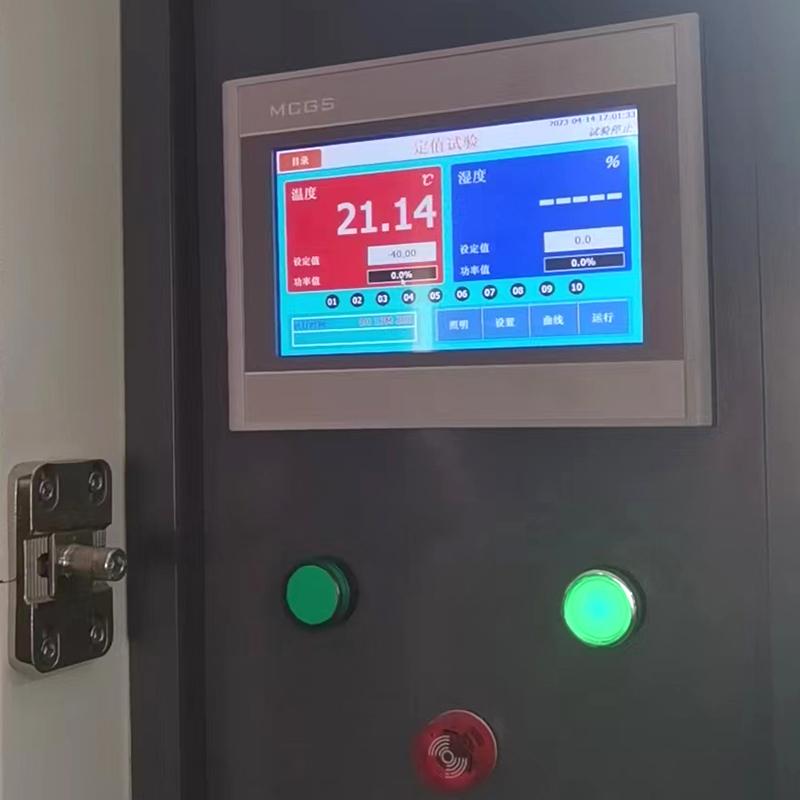

1. Adopt 7-inch large touch AP-900 intelligent programmable temperature and humidity controller, support 120 sets of programs, each set of 100 segments
2. Remote control can be achieved by connecting to the computer via the LAN interface

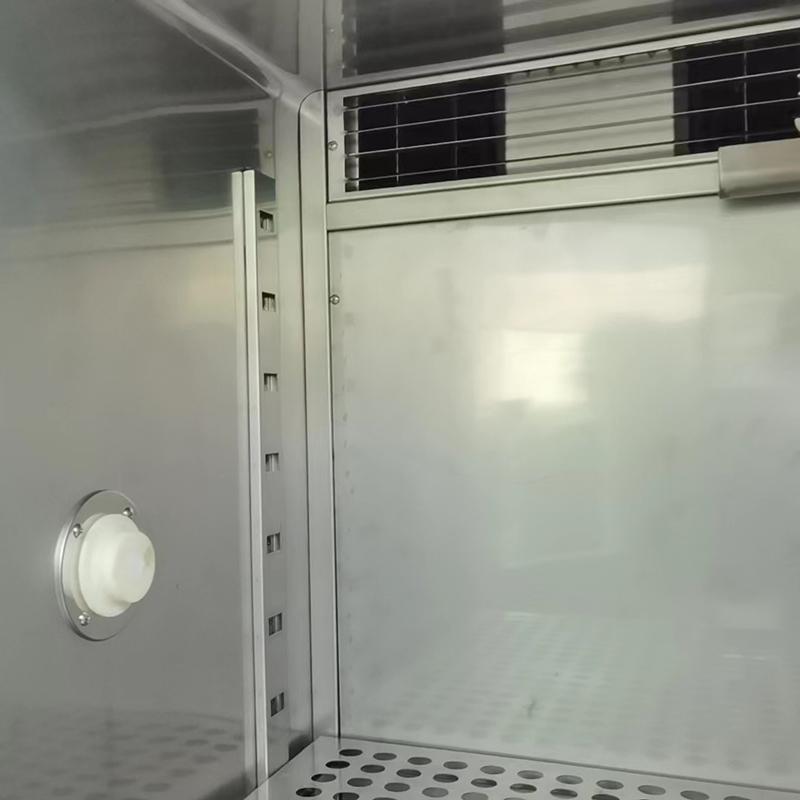

3. The multi-wing blower has strong air circulation to ensure uniform distribution of temperature and humidity
4. Complete safety protection device, automatically displaying fault status and cutting off power when abnormal
5. Original imported Compressor sets, including French Taikang and Japanese Hitachi brands
6. Adopt environmentally friendly refrigerant R-404/R23, meeting environmental requirements
Principle

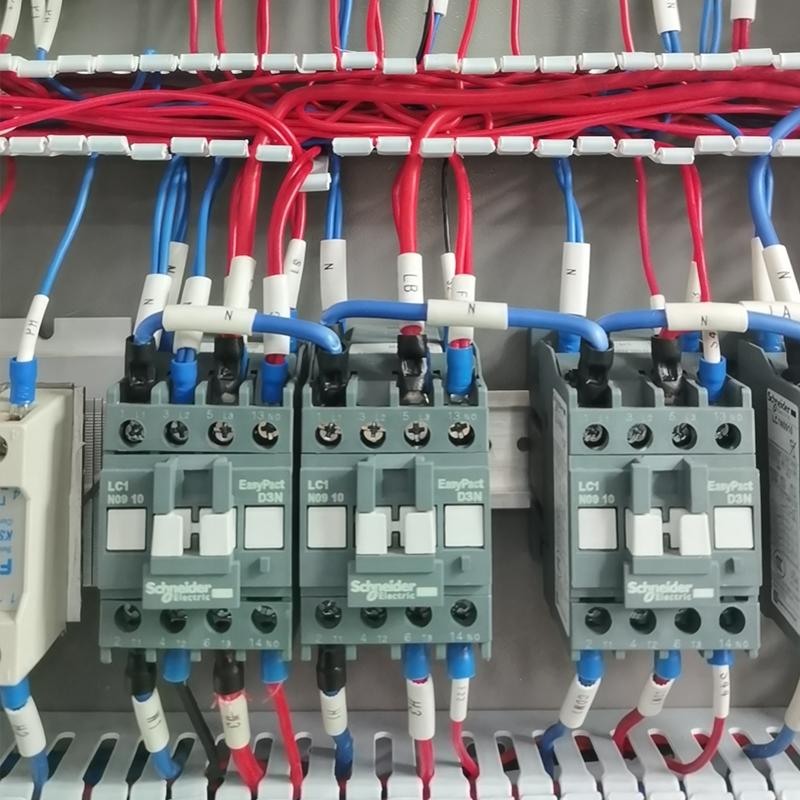

The equipment is mainly composed of a combination of control panel, switchboard, thermal insulation compartment, blower, heater, humidifier, and freezer. Strong air supply circulation is carried out through multi-wing blower to avoid any dead ends. The refrigeration system adopts original imported Compressor, with finned tube heat exchanger and expansion valve + capillary tubing throttling device to achieve accurate temperature control. The heating system adopts nickel-chromium heater, which is controlled by touchpoint switch through solid state relay.
Applications
Electronics Communication, Chemical, Hardware, Rubber, Toys, Scientific Research
Standards
GB/T10589-2008、GB/T10586-2006、GB/T10592-2008、GB/T2423.1-2008、GB/TT2423.2-2008、GB/T2423.3-2006、MIL-STD810D、GB/T2423.4-2008、GJB150.9-1986、GB2423.34-2012、MIL-STD883C
Steps
1. Configure the corresponding capacity air or power switch to ensure independent power supply
2. Connect the AC220V power supply to meet the requirements of single-phase two-wire + protective ground wire
3. Design programs through the controller or import existing programs
4. Set up program loops, connections, and end actions
5. Start the equipment operation and monitor the test process
6. Export test data via USB interface
Notice
○ Prohibition of testing or storage of flammable, explosive or volatile matter specimens
○ Prohibition of testing or storage of samples of corrosive substances
Prohibition of testing or storage of biological samples
Prohibition of testing or storage of samples of strong electromagnetic emission sources
○ There is no strong vibration around the equipment, the ground is flat and well ventilated
No strong electromagnetic field around the equipment, no flammable, explosive and corrosive substances
○ Leave appropriate use and maintenance space around the equipment
○ power requirements AC220V +/- 10%, frequency 50 +/- 0.5Hz
○ Protective ground wire grounding resistance is less than 4Ω
