$ 6080.00Ex works
Equipped with a 7-inch touch controller, support 120 program settings; multi-wing air supply circulation to ensure uniform temperature and humidity; studio volume 408L, Temperature range -20 ℃~ + 150 ℃; with complete safety protection device, fault automatic display and cut off the power supply.
Category : Temperature Humidity Chamber
Brand : Apkjgroup
SKU : NB042344
Service :The delivery and service By NBCLab.Com

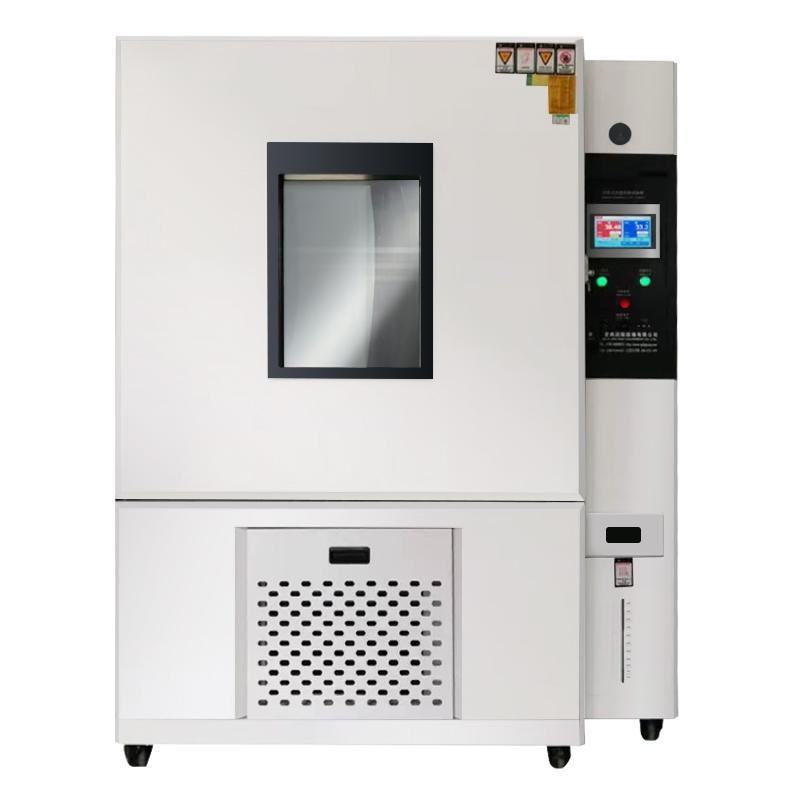

APKJ AP-HX-408B programmable humidity chamber is a kind of equipment used to provide complex high and low temperature alternating test environment. The equipment mainly provides test conditions for electronic parts, industrial materials, finished product research and development, production and inspection. It is suitable for Electronics Communication, Chemical, Hardware, Rubber, Toy, Scientific Research and other industries.
1. Adopt 7-inch large touch AP-900 intelligent programmable temperature and humidity controller, support 120 sets of programs, each set of 100 segments, can set program cycle, connection and final action 2. The controller can be connected to the computer through the LAN interface for remote control, programming, and data collection 3. The multi-wing blower has strong air circulation to ensure uniform indoor temperature and humidity distribution without dead ends 4. Complete safety protection device, automatically displaying fault status and cutting off power when abnormal, providing Troubleshooting method 5. Using imported Compressors and high-quality parts to ensure stable and reliable operation of the equipment
The equipment is mainly composed of a combination of control panel, switchboard, thermal insulation compartment, blower, heater, humidifier and freezer. The temperature and humidity are precisely controlled by a microcomputer programmatic controller, and the multi-wing blower is used for strong air circulation to ensure uniform distribution of temperature and humidity in the test chamber. The refrigeration system adopts the original imported Compressor, and the throttle and pressure reduction are carried out through the expansion valve and capillary tubing to achieve accurate temperature control.
Electronics Communication, Chemical, Hardware, Rubber, Toys, Scientific Research
GB/T10589-2008、GB/T10586-2006、GB/T10592-2008、GB/T2423.1-2008、GB/TT2423.2-2008、GB/T2423.3-2006、MIL-STD810D、GB/T2423.4-2008、GJB150.9-1986、GB2423.34-2012、MIL-STD883C
1. Ensure that the equipment is installed in a well-ventilated site without strong vibration, flat ground 2. Configure the corresponding capacity air or power switch to provide AC220V power supply 3. Set the test program and parameters through the controller 4. Start the equipment for testing 5. After the test is completed, export the data and turn off the device
Prohibit the testing or storage of flammable, explosive or volatile matter Prohibition of testing or storage of corrosive substances • Prohibition of testing or storage of biological samples Prohibition of testing or storage of samples of strong electromagnetic emission sources • There should be no strong vibration and strong electromagnetic field around the equipment Equipment should be free from flammable, explosive, corrosive substances and dust • Ensure that the supply voltage is within the AC (220 +/- 10) V range • The grounding resistance of the protective ground wire should be less than 4Ω. The working environment temperature should be kept at 5~ 30 ℃ • Working environment humidity should be ≤ 85%
The AP-HX-408B test chamber is well-suited for such applications. It features an internal volume of 408 liters and a compact design, yet it utilizes a multi-wing forced air circulation system to ensure uniform temperature and humidity distribution. The temperature uniformity can reach ±2.0°C, and the humidity uniformity is ≤±3% RH. This is crucial for aging tests on materials such as rubber, ensuring consistent testing conditions across different sample positions and delivering more accurate and reliable results. It also offers high control precision, with a temperature resolution of 0.01°C and a humidity resolution of 0.1% RH.
Of course, the AP-HX-408B is built with high-quality core components to ensure long-term stable operation. Its refrigeration system features an original, fully enclosed compressor from either France's Tecumseh or Japan's Hitachi, known for high efficiency and durability. The control system utilizes a 7-inch large touchscreen intelligent program controller, which is easy to operate and allows for effortless editing of complex temperature and humidity combination cycling programs. It also complies with multiple testing standards, including national and military standards such as GJB150.9 and MIL-STD810, meeting your stringent requirements for reliability tests like temperature and humidity combination cycling.
