$ 7196.00Ex works
Equipped with a 7-inch touch controller to support 120 program connections, multi-wing air supply circulation to ensure uniform distribution of temperature and humidity, temperature control accuracy of +/- 0.5 ° C and complete safety protection mechanism, suitable for various material Reliability testing.
Category : Temperature Humidity Chamber
Brand : Apkjgroup
SKU : NB042348
Service :The delivery and service By NBCLab.Com

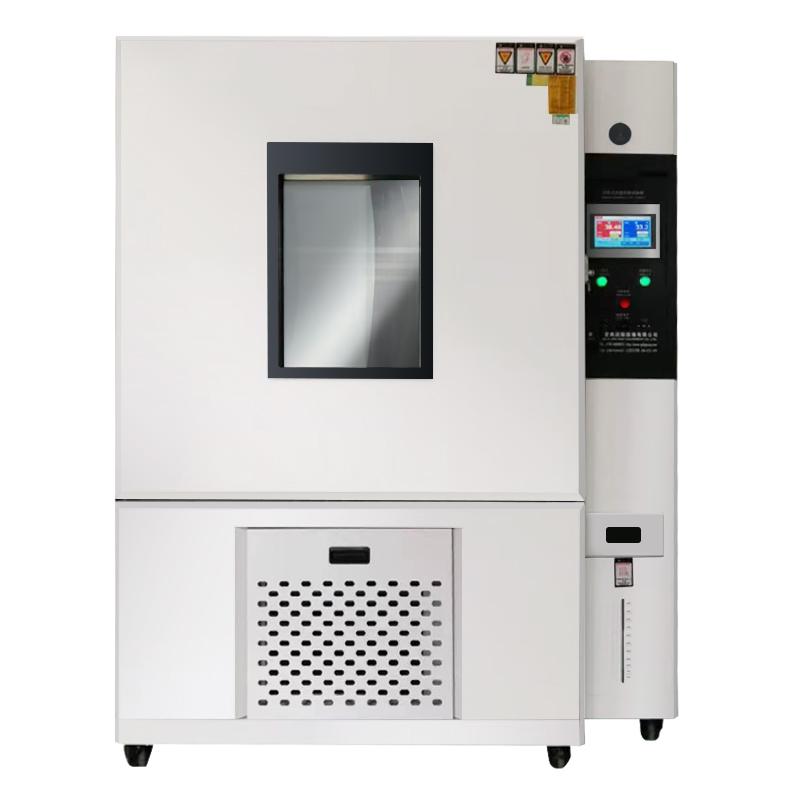

The programmable humidity chamber AP-HX-800A is produced by APKJ, which mainly provides complex high and low temperature alternating test environments and test conditions for the testing of electronic parts, industrial materials, finished product research and development, production, and inspection. The equipment adopts advanced control systems and efficient refrigeration, heating, and air circulation systems to ensure accurate and stable temperature and humidity control.
1. Equipped with a 7-inch large touch AP-900 intelligent programmable temperature and humidity controller, it supports 120 sets of programs, each set of 100 segments, and can set program loops, connections, and end actions. 2. The controller supports USB connection U disk to record and export data in real time, standard RS232 communication interface, optional RS485. 3. Adopt a multi-wing blower for strong air circulation to avoid dead ends and ensure uniform indoor temperature and humidity distribution. 4. Equipped with complete safety protection devices, it automatically displays the fault status and cuts off the power supply when abnormal, providing a Troubleshooting method. 5. It is mainly composed of a combination of control panels, switchboards, insulation compartments, blowers, heaters, humidifiers, and refrigerators, providing a variety of standard sizes and specifications.
The test chamber precisely sets the temperature and humidity parameters through a microcomputer programmed controller, and uses a refrigeration system (including imported Compressors, evaporators, condensers, etc.) and a heating system (nickel-chromium heaters) to adjust the environment in the box. The air circulation system drives the air flow through the long axis motor and wind turbine to ensure uniform distribution of temperature and humidity. The controller monitors the Sensor data in real time and ensures safe operation through safety protection devices.
Electronics Communication, Chemical, Hardware, Rubber, Toys, Scientific Research
GB/T10589-2008、GB/T10586-2006、GB/T10592-2008、GB/T2423.1-2008、GB/TT2423.2-2008、GB/T2423.3-2006、MIL-STD810D、GB/T2423.4-2008、GJB150.9-1986、GB2423.34-2012、MIL-STD883C
1. Ensure that the equipment is installed in a well-ventilated site without strong vibration, flat ground, and no strong electromagnetic fields, flammable and explosive substances around. 2. Configure an independent AC220V power supply to meet the requirements of single-phase two-wire + protective ground, voltage range AC (220 +/- 10) V, frequency (50 +/- 0.5) Hz, protective ground resistance less than 4Ω. 3. Use the controller to set programs and parameters, and support program editing, looping, and connection. 4. Start the equipment, monitor the operating status, and handle any abnormalities through safety protection devices. 5. After the test, export the data and turn off the power.
• It is forbidden to test or store flammable, explosive, volatile matter, corrosive substances, biological samples or samples of strong electromagnetic emission sources. • Installation site without strong vibration, flat ventilated, no strong electromagnetic field, flammable and explosive corrosive substances and dust. • Ensure that power supply conditions meet requirements, including independent air or power switches, voltage and Frequency ranges. • Appropriate use and maintenance space should be left around the equipment. • Regularly check the safety protection device to ensure normal operation.
Certainly. The AP-HX-800A Programmable Temperature and Humidity Test Chamber complies with multiple national standards, such as GB/T2423.3-2006 (Damp Heat, Steady State Test Ca) and GB/T10586-2006 (Technical Specifications for Damp Heat Test Chambers). These standards are commonly used for testing the damp heat resistance of materials like rubber and chemicals. The equipment features a humidity uniformity of ≤±3% RH and a deviation of ±2% RH, providing a stable and uniform damp heat environment to ensure the accuracy and repeatability of aging tests on rubber materials.
