$ 7642.00Ex works
Equipped with 7-inch touch screen controller, support 120 program settings; multi-wing air supply circulation to ensure uniform distribution of temperature and humidity; Temperature range 0~ 150 ℃, humidity control 20~ 98% RH, to meet the needs of complex environment simulation.
Category : Temperature Humidity Chamber
Brand : Apkjgroup
SKU : NB042353
Service :The delivery and service By NBCLab.Com

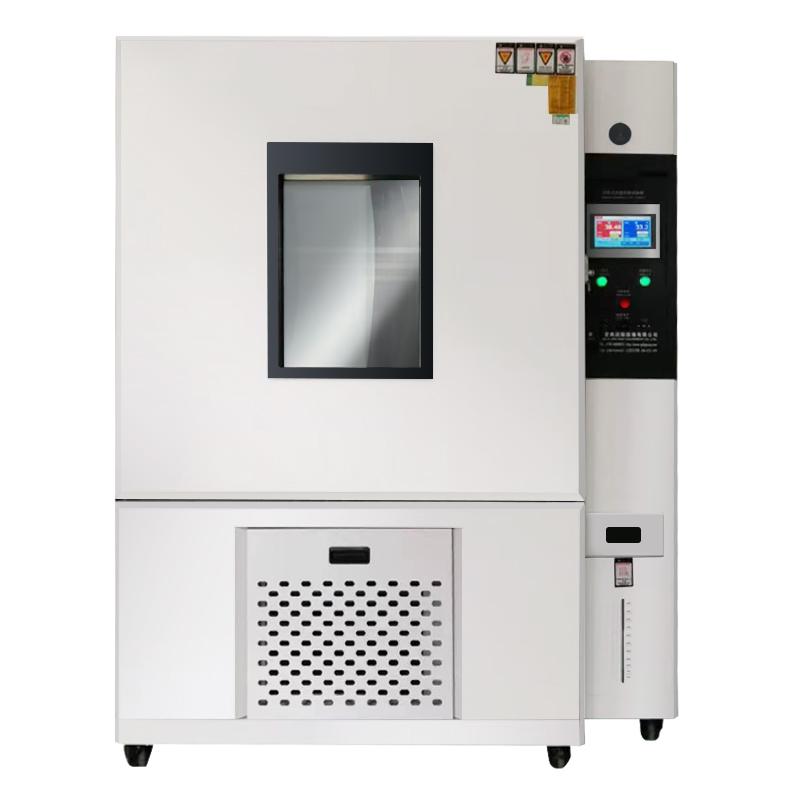

APKJ AP-HX-1000A programmable humidity chamber mainly provides complex high and low temperature alternating test environment and test conditions for the testing of electronic parts, industrial materials, finished product research and development, production and inspection. The equipment adopts 7-inch large touch AP-900 intelligent programmable temperature and humidity controller, supports 120 sets of programs, each set of 100 segments, with program circulation, connection and data recording functions.
1. Adopt 7-inch large touch AP-900 intelligent programmable temperature and humidity controller, support 120 sets of programs, each set of 100 segments 2. Remote control can be achieved by connecting to the computer via the LAN interface 3. Utilize a multi-wing blower for strong air circulation to ensure uniform distribution of temperature and humidity 4. Complete safety protection device, automatically displaying fault status and providing troubleshooting methods 5. Use original imported Compressors, such as French Taikang and Japanese Hitachi brands, to ensure efficient refrigeration 6. Equipped with a variety of international brand parts, such as American Henry Oil, Denmark Danfoss Filter, etc., to ensure stable performance
The test chamber works together through the control panel, switchboard, thermal insulation compartment, blower, heater, humidifier, freezer and other components to achieve temperature and humidity control. The multi-wing blower is used for strong air supply circulation to avoid dead ends and ensure uniform distribution of indoor temperature and humidity. The refrigeration system adopts the original imported Compressor, and cooperates with the expansion valve and capillary tubing to throttle and reduce pressure to achieve rapid cooling and accurate temperature control.
Electronics Communication, Chemical, Hardware, Rubber, Toys, Scientific Research
GB/T10589-2008、GB/T10586-2006、GB/T10592-2008、GB/T2423.1-2008、GB/TT2423.2-2008、GB/T2423.3-2006、MIL-STD810D、GB/T2423.4-2008、GJB150.9-1986、GB2423.34-2012、MIL-STD883C
1. Configure the corresponding capacity air or power switch to ensure independent power supply AC220V 2. Connect the power supply to meet the requirements of single-phase two-wire + protective ground wire, voltage range AC (220 +/- 10) V, frequency (50 +/- 0.5) Hz 3. Through the controller design program, the program loop, connection and termination can be set 4. Start the equipment, monitor temperature and humidity changes, and ensure uniform distribution 5. After use, turn off the power and perform daily maintenance
○ It is forbidden to test or store flammable, explosive, volatile matter, corrosive substances, biological samples, and strong electromagnetic emission source samples ○ The installation site needs no strong vibration, the ground is flat and well ventilated No strong electromagnetic field around the equipment, no flammable, explosive, corrosive substances and dust ○ Ensure that the grounding resistance of the protective ground wire is less than 4Ω. ○ Leave appropriate use and maintenance space around the equipment ○ The working environment temperature should be 5~ 30 ℃, humidity ≤ 85%, air pressure 86kPa~ 106kPa
We recommend the AP-HX-1000A programmable constant temperature and humidity test chamber from Aipei Technology. It is suitable for reliability testing of electronic products, as it can accurately simulate temperature conditions from room temperature up to 150°C and humidity environments ranging from 20% to 98% RH. With high temperature control precision, temperature fluctuations are only ±0.5°C, and humidity deviation is ±2% RH, ensuring stable and accurate testing conditions to meet the stringent requirements of the electronics industry for product weathering tests.
