Overview

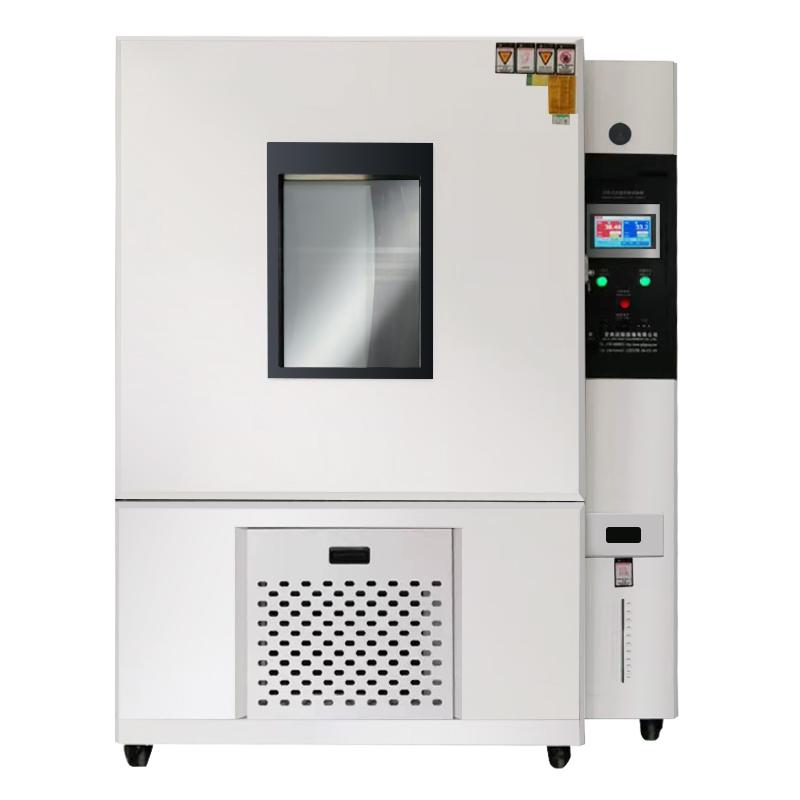

APKJ AP-HX-1000B programmable humidity chamber mainly provides complex high and low temperature alternating test environment and test conditions for the testing of electronic parts, industrial materials, finished product research and development, production and inspection. The device adopts 7-inch super touch AP-900 intelligent programmable temperature and humidity controller, supports 120 programs, 100 segments per program, and has functions such as USB connection, data export and import.
Features
1. Adopt 7-inch large touch AP-900 intelligent programmable temperature and humidity controller, support 120 sets of programs, each set of 100 segments
2. Remote control can be achieved by connecting to the computer through the LAN interface
3. The multi-wing blower has strong air circulation to ensure uniform distribution of temperature and humidity
4. Complete safety protection device, automatically displaying fault status and providing troubleshooting methods
5. Adopt high-quality parts such as original imported Compressors (France Taikang/Japan Hitachi)
6. Studio volume 1000L, Temperature range -20 ℃~ + 150 ℃, Moisture control range 20~ 98% R.H
Principle
The equipment is mainly composed of a combination of control panel, switchboard, thermal insulation compartment, blower, heater, humidifier and freezer. Through the strong air supply circulation of the multi-wing blower, any dead angles are avoided, and the indoor temperature and humidity are evenly distributed. The refrigeration system adopts the original imported Compressor, and cooperates with the finned tube heat exchanger and other components to achieve accurate temperature and humidity control.
Applications
Electronics Communication, Chemical, Hardware, Rubber, Toys, Scientific Research
Standards
GB/T10589-2008、GB/T10586-2006、GB/T10592-2008、GB/T2423.1-2008、GB/TT2423.2-2008、GB/T2423.3-2006、MIL-STD810D、GB/T2423.4-2008、GJB150.9-1986、GB2423.34-2012、MIL-STD883C
Steps
1. Ensure that the installation site meets the requirements: no strong vibration, flat ground, well ventilated
2. Configure the corresponding capacity air or power switch to provide AC220V power supply
3. Connect the computer for programming and control through the LAN interface
4. Set up test parameters and program loops
5. Start the equipment for testing
6. Export test data via USB
Notice
Prohibit the testing or storage of flammable, explosive or volatile matter
Prohibition of testing or storage of corrosive substances
• Prohibition of testing or storage of biological samples
Prohibition of testing or storage of samples of strong electromagnetic emission sources
• There should be no strong vibration and strong electromagnetic field around the equipment
• The ground should be level and well ventilated
• No flammable, explosive, corrosive substances and dust around
• The grounding resistance of the protective ground wire should be less than 4Ω.
The working environment temperature should be kept at 5~ 30 ℃
• Working environment humidity should be ≤ 85%
