$ 14845.00Ex works
The three-box structure is used to realize the test area is completely static, the temperature conversion time is ≤ 10 seconds, the Temperature range is -55 ℃~ + 150 ℃, and it has 120 sets of program capacity and real-time Linear dispersion recording function.
Category : Thermal Shock Test Chamber
Brand : Apkjgroup
SKU : NB042359
Service :The delivery and service By NBCLab.Com

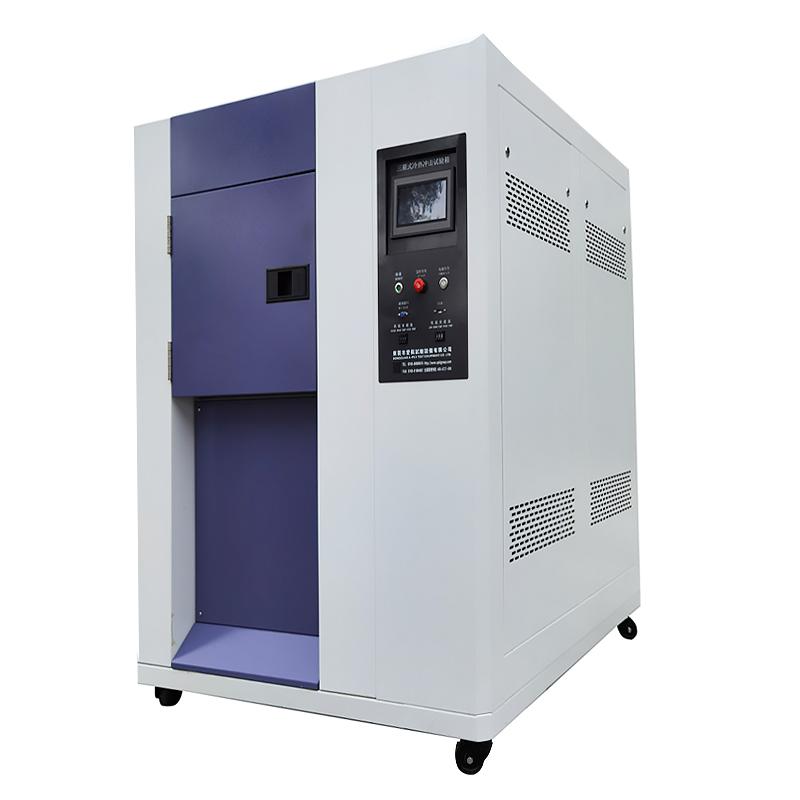

APKJ 3AP-CJ-27B Thermal Shock Test Chamber is a device used to test the tolerance of materials in extremely high temperature and extremely low temperature continuous environment. It adopts a three-box structure, which is divided into high temperature zone, low temperature zone and test zone. The test sample is completely stationary in the test zone, and the temperature Impact test is realized by switching the strong cooling hot air path. The control instrument adopts the self-developed 7-inch super-touch AP-950 programmable temperature controller, which supports touch screen input and temperature Linear dispersion display.
The three-box equipment structure includes a high-temperature zone, a low-temperature zone, and a test zone. The test sample is completely stationary. 2. Adopt heat storage, cold storage structure and strong cooling hot air circuit switching mode to achieve high-efficiency temperature Impact. 3. Can independently set three functions of high temperature, low temperature and Thermal Shock, support 2 or 3 box mode, with high and low temperature testing machine function. 4. The use of rigid polyurethane foam for thermal insulation materials offers the advantages of energy saving, shock resistance, ultra-low temperature thermal conductivity, insulation, sound insulation, and waterproofing. 5. Equipped with multiple safety protection devices, including Compressor protection, laboratory temperature protection and power supply protection. 6. The control instrument supports program memory, automatic start, Linear dispersion recording and a variety of communication interfaces.
The Thermal Shock Test Chamber adopts the structure of heat storage and cold storage, and the temperature in the high temperature or low temperature region is introduced into the test area through the switching mode of strong cooling hot air path for Impact. During the test, the sample is placed in the test area, and the system automatically switches the air path according to the setting program to realize the rapid conversion of extremely high temperature and extremely low temperature, and completes the cold and hot temperature Impact test.
Electronics components, plastics, automation parts, communication components, auto parts, metals, chemical materials, plastics, defense industry, aerospace, military industry, BGA, PCB substrate, electronic chip IC, semiconductor ceramic, polymer materials
GB/T2423.1-2008、GB/T2423.2-2008、GB/T2423.22-2012、GJB150.5-86、GJB360.7-87、GJB367.2-87、QC/T17-92、EIA364-32、IEC68-2-14
1. Configure an independent AC380V power supply, including three-phase four-wire + protective ground wire. 2. Turn on the main power switch and start the device. 3. Set the high temperature, low temperature or Thermal Shock program through the touch screen controller. 4. Place the test sample in the test area. 5. Start the program and the device automatically performs the Temperature Impact Test. 6. Monitor real-time temperature Linear dispersion and alarm information. 7. After the test, turn off the power and remove the sample.
The installation site needs to be equipped with an independent AC380V power supply, with a voltage range of AC (380 +/- 10) V and a frequency of (50 +/- 0.5) Hz. The grounding resistance of the protective wire is less than 4 ohms. ○ The equipment does not include ventilated pipes, power leakage switches, air Compressors, water sources and other external environment items. ○ environment temperature maintained at + 25~ + 30 ℃, relative humidity ≤ 85%, pressure 86kPa~ 106kPa. ○ When the equipment is not working, the environment temperature should be maintained at 0 ° C to + 45 ° C; when it is lower than 0 ° C, water should be discharged to prevent the pipeline from freezing. ○ Check the safety protection device before use, such as Compressor overpressure, laboratory temperature protection, etc. Avoid operating under unspecified conditions to prevent equipment damage or test errors.
[A] No, it isn't. This is the ex-factory price of the product in the Chinese Mainland. In addition to this price, buyers from different countries need to account for additional costs such as shipping fees, tariffs, and others. For specific regional quotes, please consult our customer service or fill out a quotation form.
[A] First, please click on the quotation form on the website and fill in detailed information. Our customer service personnel will then send you a quotation based on your specific country and region, confirming payment and delivery methods. Following this, we proceed with contract signing, payment, and shipment. You can then await delivery.
[A] After-sales repair for overseas instruments is an unavoidable issue. Our repair terms stipulate that the sender is responsible for the shipping and insurance costs incurred for the repair. Repairs within the warranty period are free, while repair costs beyond the warranty period are determined based on the actual situation.
