$ 17092.00Ex works
The three-box structure is used to realize the static test sample, the heat storage and cold storage design is matched with the forced air circuit switching, the temperature conversion only takes 10 seconds, and the temperature control accuracy reaches +/- 0.5 ℃, which meets the requirements of continuous testing in extremely high temperature and extremely low temperature environment.
Category : Thermal Shock Test Chamber
Brand : Apkjgroup
SKU : NB042360
Service :The delivery and service By NBCLab.Com

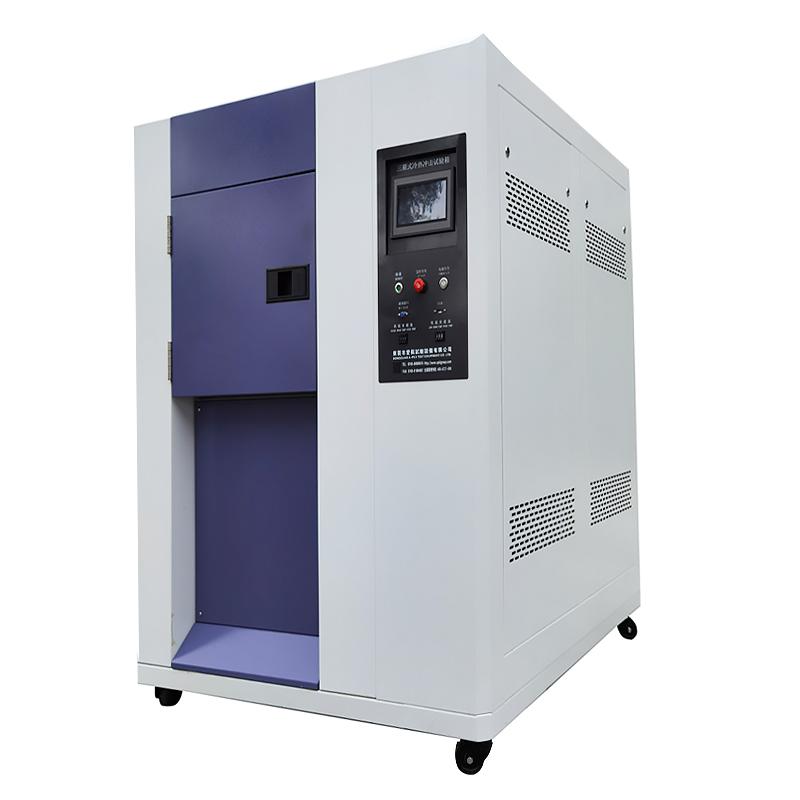

APKJ 3AP-CJ-27C Thermal Shock Test Chamber is a professional equipment used to test the performance of materials in extremely high temperature and extremely low temperature continuous environment. The equipment adopts a three-box structure design and is equipped with a self-developed 7-inch super-touch AP-950 programmable temperature controller, which can precisely control the temperature Impact process. It is widely used in mass inspection in electronics, automotive parts, metal materials and other industries.
1. Adopt a three-box structure design, divided into a high-temperature zone, a low-temperature zone, and a test zone. The test sample is completely stationary in the test zone 2. Unique heat storage and cold storage structure, strong cooling hot air circuit switching mode into the test area 3. Can independently set high temperature, low temperature and Thermal Shock three different conditions function 4. Can choose 2 or 3 boxes function, with high and low temperature testing machine function 5. Equipped with 7-inch oversized touch AP-950 programmable temperature controller, full touch screen operation 6. With temperature alarm display, real-time temperature Linear dispersion display function 7. The box is made of rigid polyurethane foam insulation material, which has excellent thermal insulation performance
The equipment adopts a heat storage and cold storage structure, and the temperature in the high temperature or low temperature area is introduced into the test area through the switching mode of strong cooling hot air circuit for Impact. When the Thermal Shock condition is executed, the system will automatically switch the air circuit according to the setting program, so that the test area experiences drastic temperature changes in a very short time, completing the cold and hot temperature Impact test process.
Electronics components, plastic industry, automation parts, communication components, auto parts, metal materials, chemical materials, plastics industry, defense industry, aerospace industry, military industry, BGA, PCB substrate, electronic chip IC, semiconductor ceramic, polymer materials
GB/T2423.1-2008、GB/T2423.2-2008、GB/T2423.22-2012、GJB150.5-86、GJB360.7-87、GJB367.2-87、QC/T17-92、EIA364-32、IEC68-2-14
1. Configure the corresponding capacity air or power switch to ensure an independent AC380V power supply 2. Connect three-phase four-wire + protective ground power supply 3. Set Required High Temperature, Low Temperature and Thermal Shock Parameters with 7-inch Touch Screen Controller 4. Place the test sample on the sample shelf in the test area 5. Start the device to execute the preset program 6. Monitor real-time temperature Linear dispersion and alarm information 7. Automatically record data after the test is completed
* Installation site requires an independent AC380V power supply, voltage range AC (380 +/- 10) V * Power supply frequency allowable fluctuation range (50 +/- 0.5) Hz The grounding resistance of the protective wire must be less than 4Ω. * The ambient environment temperature of the equipment should be maintained between + 25~ + 30 ° C * relative humidity not more than 85% * When the equipment is not working, the environment temperature should be maintained at 0 ℃~ + 45 ℃ * When the environment temperature is lower than 0 ° C, the water remaining in the equipment needs to be drained clean * This plan does not include the installation of ventilated pipes, power supplies, gas sources, water sources and other equipment environment items
[A] No, it isn't. This is the ex-factory price of the product in the Chinese Mainland. In addition to this price, buyers from different countries need to account for additional costs such as shipping fees, tariffs, and others. For specific regional quotes, please consult our customer service or fill out a quotation form.
[A] First, please click on the quotation form on the website and fill in detailed information. Our customer service personnel will then send you a quotation based on your specific country and region, confirming payment and delivery methods. Following this, we proceed with contract signing, payment, and shipment. You can then await delivery.
[A] After-sales repair for overseas instruments is an unavoidable issue. Our repair terms stipulate that the sender is responsible for the shipping and insurance costs incurred for the repair. Repairs within the warranty period are free, while repair costs beyond the warranty period are determined based on the actual situation.
