$ 14845.00Ex works
The three-box structure is used to realize the static test sample, the strong cooling hot air circuit switching technology, the temperature conversion time is less than or equal to 10 seconds, the temperature recovery time is less than or equal to 5 minutes, and the temperature control function is independent in the high temperature zone, the low temperature zone and the test zone.
Category : Thermal Shock Test Chamber
Brand : Apkjgroup
SKU : NB042361
Service :The delivery and service By NBCLab.Com

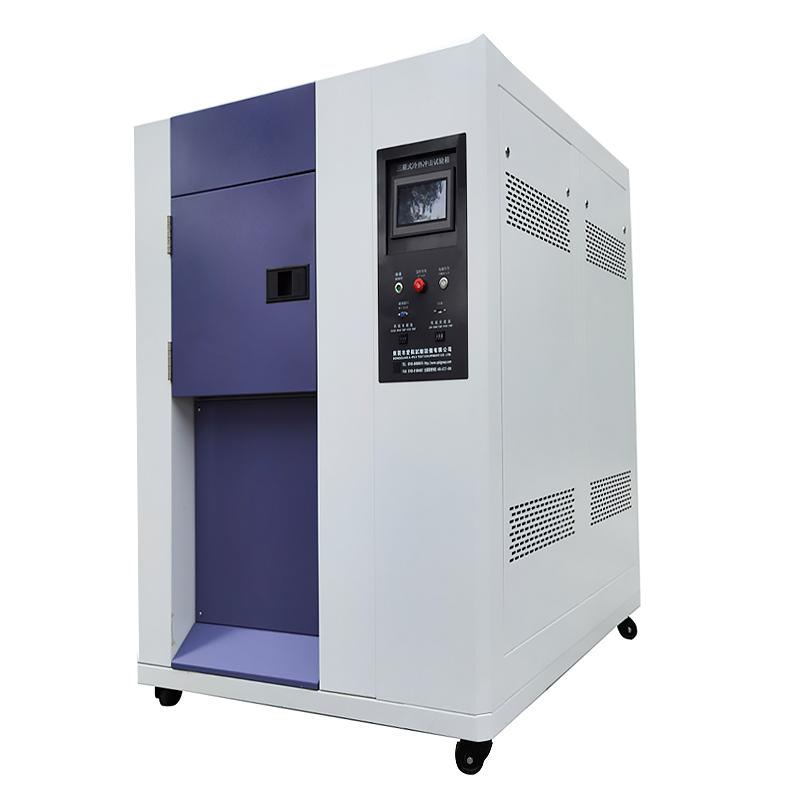

The APKJ 3AP-CJ-50A Thermal Shock Test Chamber is a device used to test the tolerance of materials in a continuous environment of extremely high temperature and extremely low temperature. It adopts a three-box structure, which is divided into a high temperature zone, a low temperature zone and a test zone. The test sample is completely stationary in the test zone, and the temperature Impact test is realized through a unique heat storage and cold storage structure and strong cooling hot air circuit switching. The equipment is equipped with a self-developed 7-inch super-touch AP-950 programmable temperature controller, which supports touch screen input and real-time temperature Linear dispersion display.
1. Three-box equipment structure, high temperature zone, low temperature zone, and test zone are separated, and the test sample is completely static. 2. Unique heat storage and cold storage structure, strong cooling hot air circuit switching into the test area. 3. Three functions of high temperature, low temperature and Thermal Shock can be set independently, and 2 or 3 boxes mode is supported. 4. With high and low temperature testing machine function, room temperature Impact can be selected. 5. The box insulation material is made of rigid polyurethane foam, which is energy-saving, shockproof, weather-resistant, insulating and waterproof. 6. Equipped with multiple safety protection devices, including Compressor, laboratory and Miscellaneous system protection. 7. The control instrument supports auxiliary functions such as program memory, automatic start, and Linear dispersion recording.
The equipment adopts a heat storage and cold storage structure and a strong cooling hot air circuit switching mode. When the impact is made, the temperature in the high temperature area or the low temperature area is rushed into the test area for Impact, and the hot and cold temperature Impact test is completed. The test sample is completely stationary in the test area, and the operating conditions of the refrigerator are automatically adjusted by PLC to achieve rapid temperature conversion and recovery.
Electronics components, plastics, automation parts, communication components, auto parts, metals, chemical materials, plastics, defense industry, aerospace, military industry, BGA, PCB substrate, electronic chip IC, semiconductor ceramic, polymer materials
GB/T2423.1-2008、GB/T2423.2-2008、GB/T2423.22-2012、GJB150.5-86、GJB360.7-87、GJB367.2-87、QC/T17-92、EIA364-32、IEC68-2-14
1. Configure an independent AC380V power supply to ensure that the voltage, frequency, and grounding meet the requirements. 2. Turn on the main power switch and start the operation board controller. 3. Set high temperature, low temperature or Thermal Shock program parameters through the touch screen. 4. Place the sample on the shelf in the test area and close the test chamber door. 5. Start the program and the device automatically performs the Temperature Impact Test. 6. Monitor real-time temperature Linear dispersion and fault indicators. 7. After the test, the device automatically stops or shuts down manually.
• Installation site requires an independent AC380V power supply, voltage range AC (380 +/- 10) V, frequency (50 +/- 0.5) Hz. • The grounding resistance of the protective wire is less than 4Ω. • environment temperature is maintained at + 25~ + 30 ℃, relative humidity ≤ 85%. When the equipment is not working, the environment temperature should be maintained at 0 ° C to + 45 ° C, and water should be discharged when it is lower than 0 ° C. • External environment items such as ventilated pipelines, power supplies, gas sources, and water sources need to be configured by users. • Pay attention to the state of the safety protection device during operation to avoid abnormal overheating and lack of equality. • The maximum load-bearing capacity of the sample shelf is 25KG, and the overweight should be indicated in advance.
[A] No, it isn't. This is the ex-factory price of the product in the Chinese Mainland. In addition to this price, buyers from different countries need to account for additional costs such as shipping fees, tariffs, and others. For specific regional quotes, please consult our customer service or fill out a quotation form.
[A] First, please click on the quotation form on the website and fill in detailed information. Our customer service personnel will then send you a quotation based on your specific country and region, confirming payment and delivery methods. Following this, we proceed with contract signing, payment, and shipment. You can then await delivery.
[A] After-sales repair for overseas instruments is an unavoidable issue. Our repair terms stipulate that the sender is responsible for the shipping and insurance costs incurred for the repair. Repairs within the warranty period are free, while repair costs beyond the warranty period are determined based on the actual situation.
