$ 17539.00Ex works
The three-box heat storage structure is used to realize forced air circuit switching, the temperature recovery time is less than or equal to 5 minutes, and the conversion only takes 10 seconds. With independent temperature control in high temperature zone, low temperature zone and test zone, it can perform 2-box or 3-box Impact mode to meet different test needs.
Category : Thermal Shock Test Chamber
Brand : Apkjgroup
SKU : NB042362
Service :The delivery and service By NBCLab.Com

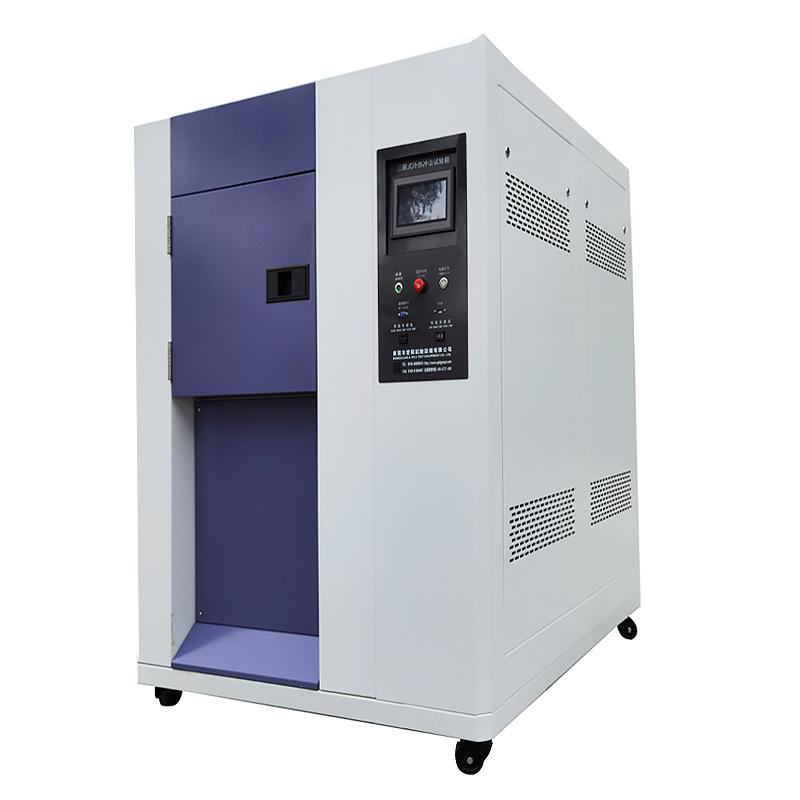

The APKJ 3AP-CJ-50B Thermal Shock Test Chamber adopts a three-box structure design, which is divided into a high temperature zone, a low temperature zone and a test zone. The test sample is completely still in the test zone. Equipped with a self-developed 7-inch super-touch AP-950 programmable temperature controller, it supports touch screen input, and can arbitrarily set different high and low temperature Impact temperature points according to customer requirements to meet diverse test needs. It has the function of temperature alarm display and real-time temperature Linear dispersion display.
1. The three-box equipment is divided into three parts: high temperature area, low temperature area and test area. It adopts a unique heat storage and cold storage structure, and the strong cooling hot air circuit switching method is introduced into the test area to complete the hot and cold temperature Impact test 2. It can independently set the functions of high temperature, low temperature and Thermal Shock three different conditions. When executing Thermal Shock, you can choose 2 or 3 boxes of functions, and it has the function of high and low temperature testing machine. Compared with 2 boxes of Impact, you can also choose to do normal temperature Impact. 3. The box insulation material adopts rigid polyurethane foam, which has the advantages of effective energy saving, shock resistance and compression resistance, ultra-low temperature thermal conductivity, effective insulation and sound insulation, and good waterproof performance 4. Equipped with complete safety protection devices, including refrigeration system protection, laboratory protection, and Miscellaneous multiple protection functions 5. Control mode adopts anti-integral saturation PID, fuzzy algorithm, BTC equilibrate temperature control mode, with auxiliary functions such as power-off program memory and automatic start after power-back
Using heat storage and cold storage structure, the temperature in the high temperature zone or low temperature zone is introduced into the test zone through the switching mode of strong cooling hot air circuit for Impact. During Impact, the temperature in the high temperature zone or low temperature zone is rushed into the test zone to complete the hot and cold temperature Impact test. The temperature recovery time is ≤ 5min, the conversion temperature only needs ≤ 10s, and the damper opening time is within 3 seconds.
Electronics components, plastics and other industries, automation parts, communication components, auto parts, metals, chemical materials, plastics and other industries, national defense industry, aerospace, military industry, BGA, PCB base wrench, electronic chip IC, semiconductor ceramic and polymer materials Physical change test
GB/T2423.1-2008、GB/T2423.2-2008、GB/T2423.22-2012、GJB150.5-86、GJB360.7-87、GJB367.2-87、QC/T17-92、EIA364-32、IEC68-2-14
1. Configure the air or power switch of the corresponding capacity to ensure that the AC380V power supply is used independently for this equipment 2. Check power requirements: three-phase four-wire + protective ground wire, voltage range AC (380 +/- 10) V, frequency allowable fluctuation range (50 +/- 0.5) Hz, protective wire grounding resistance is less than 4Ω 3. Set Required High Temperature, Low Temperature and Thermal Shock Conditions with 7-inch Touch Screen Controller 4. Select 2 or 3 boxes to perform Thermal Shock Test 5. Monitor real-time temperature Linear dispersion and alarm display to ensure normal testing
The user is required to configure an air or power switch of corresponding capacity at the installation site, and this switch needs to be used independently for this equipment ○ power requirements: three-phase four-wire + protective ground wire, voltage range AC (380 +/- 10) V, frequency allowable fluctuation range (50 +/- 0.5) Hz, protective wire grounding resistance less than 4Ω ○ This plan does not include ventilated pipes, power supply (leakage switch), air source (Air Compressor), water source (bottled water or water pipe) and other equipment environment items installation ○ Test environmental conditions: the environment temperature around the machine is maintained between + 25~ + 30 ℃, relative humidity ≤ 85%, air pressure 86kPa~ 106kPa normal atmospheric pressure ○ When the equipment is not working, the temperature of the environment should be kept within 0 ° C~ + 45 ° C; when the environment temperature is lower than 0 ° C, the water remaining in the equipment should be drained clean to avoid freezing water in the pipeline
[A] No, it isn't. This is the ex-factory price of the product in the Chinese Mainland. In addition to this price, buyers from different countries need to account for additional costs such as shipping fees, tariffs, and others. For specific regional quotes, please consult our customer service or fill out a quotation form.
[A] First, please click on the quotation form on the website and fill in detailed information. Our customer service personnel will then send you a quotation based on your specific country and region, confirming payment and delivery methods. Following this, we proceed with contract signing, payment, and shipment. You can then await delivery.
[A] After-sales repair for overseas instruments is an unavoidable issue. Our repair terms stipulate that the sender is responsible for the shipping and insurance costs incurred for the repair. Repairs within the warranty period are free, while repair costs beyond the warranty period are determined based on the actual situation.
