$ 17092.00Ex works
The three-box heat storage and cold storage structure is adopted to achieve rapid temperature conversion of ≤ 10s, and the temperature recovery time is ≤ 5 minutes. It supports Impact testing at 150 ° C in high temperature zone and -40 ° C in low temperature zone, and has program memory and Linear dispersion recording functions.
Category : Thermal Shock Test Chamber
Brand : Apkjgroup
SKU : NB042364
Service :The delivery and service By NBCLab.Com

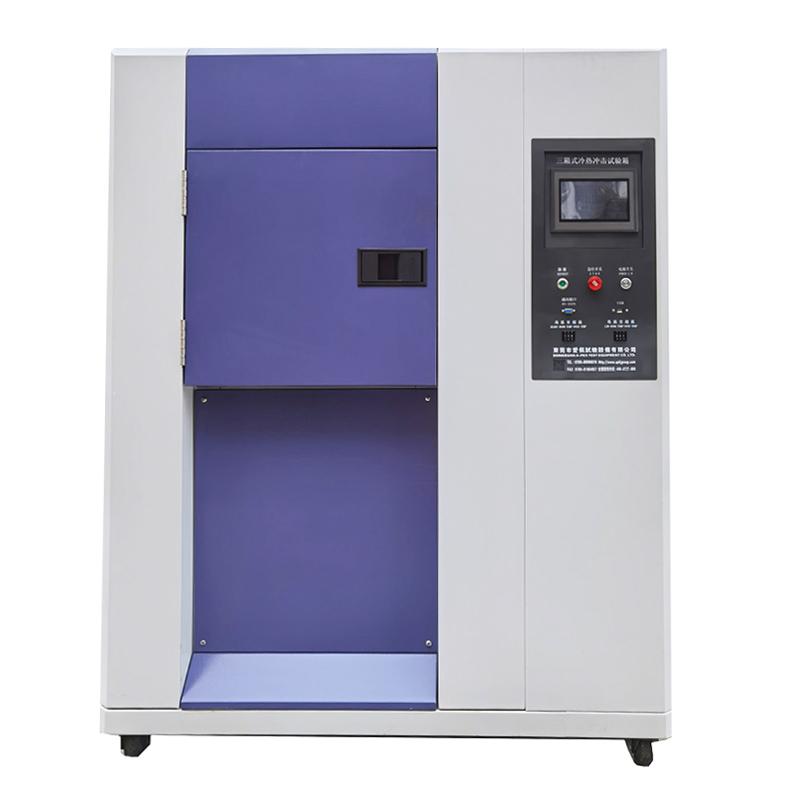

APKJ 3AP-CJ-80A Thermal Shock Test Chamber is a device used to test the tolerance of materials in extremely high temperature and extremely low temperature continuous environments. It adopts a three-box structure, which is divided into high temperature zone, low temperature zone and test zone. The test sample is completely stationary in the test zone, and the temperature Impact test is realized by switching the strong cooling hot air path. It is widely used in Electronics, Auto Parts, Metal Chemical Materials and other industries.
1. Three-box equipment structure, the test sample is completely static in the test area, using a unique heat storage, cold storage structure and strong cooling hot air circuit switching mode. 2. Three functions of high temperature, low temperature and Thermal Shock can be set independently. When executing Thermal Shock, you can choose 2 or 3 boxes mode, and it has the function of high and low temperature testing machine. 3. The box insulation material adopts rigid polyurethane foam, which has energy saving, shock and compression resistance, ultra-low temperature thermal conductivity, insulation and sound insulation and waterproof performance. 4. Equipped with self-developed 7-inch super touch AP-950 programmable temperature controller, it supports touch screen input, temperature alarm display and real-time temperature Linear dispersion display. 5. Built-in multiple safety protection devices, including Compressor overpressure, overheating, overcurrent protection, laboratory temperature protection, and total power supply phase sequence and phase loss protection.
The structure of heat storage and cold storage is adopted, and the switching mode of strong cooling hot air circuit is introduced into the test area. Impact, the temperature of the high temperature or low temperature area is rushed into the test area for Impact, and the hot and cold temperature Impact test is completed. The test sample is completely stationary in the test area, and the chemical or physical changes caused by thermal expansion and contraction are tested by rapid temperature conversion.
Electronics Components Plastics, Automation Components, Communication Components, Auto Parts, Metals, Chemical Materials, Plastics, Defense Industry, Aerospace, Military Industry, BGA, PCB Substrate, Electronic Chip IC, Semiconductor Ceramics, Polymer Materials
GB/T2423.1-2008、GB/T2423.2-2008、GB/T2423.22-2012、GJB150.5-86、GJB360.7-87、GJB367.2-87、QC/T17-92、EIA364-32、IEC68-2-14
1. Configure the corresponding capacity air or power switch to ensure an independent AC380V power supply. 2. Turn on the main power switch and set the high temperature, low temperature or Thermal Shock conditions through the operation board controller. 3. Select the 2-box or 3-box function mode to set the Impact temperature point and exposure time. 4. Start the equipment, and the strong cooling hot air circuit is switched and introduced into the test area for Impact test. 5. Monitor real-time temperature Linear dispersion and alarm display, automatically stop and record data after the test is completed.
The installation site needs to be equipped with an independent AC380V power supply to meet the requirements of three-phase four-wire + protective ground wire, voltage range AC (380 +/- 10) V, frequency (50 +/- 0.5) Hz, and the grounding resistance of the protective wire is less than 4Ω. ○ The equipment does not include ventilated pipes, power leakage switches, air Compressors, water sources and other external environment items. ○ When the equipment is not working, the environment temperature should be maintained at 0 ° C to + 45 ° C. When it is lower than 0 ° C, water should be discharged to prevent the pipeline from freezing and damage. ○ Test environmental conditions should be maintained at temperature + 25~ + 30 ℃, relative humidity ≤ 85%, pressure 86kPa~ 106kPa. Check the safety protection device before use, including the refrigeration system, laboratory temperature protection, and power supply protection functions.
