$ 18208.00Ex works
The three-box heat storage and cold storage structure is adopted, the temperature conversion time is ≤ 10 seconds, and the temperature recovery time is ≤ 5 minutes, which can realize the rapid Impact test of high temperature 150 ℃ to low temperature -55 ℃, and meet the environmental adaptability verification of the extreme temperature of the material.
Category : Thermal Shock Test Chamber
Brand : Apkjgroup
SKU : NB042365
Service :The delivery and service By NBCLab.Com

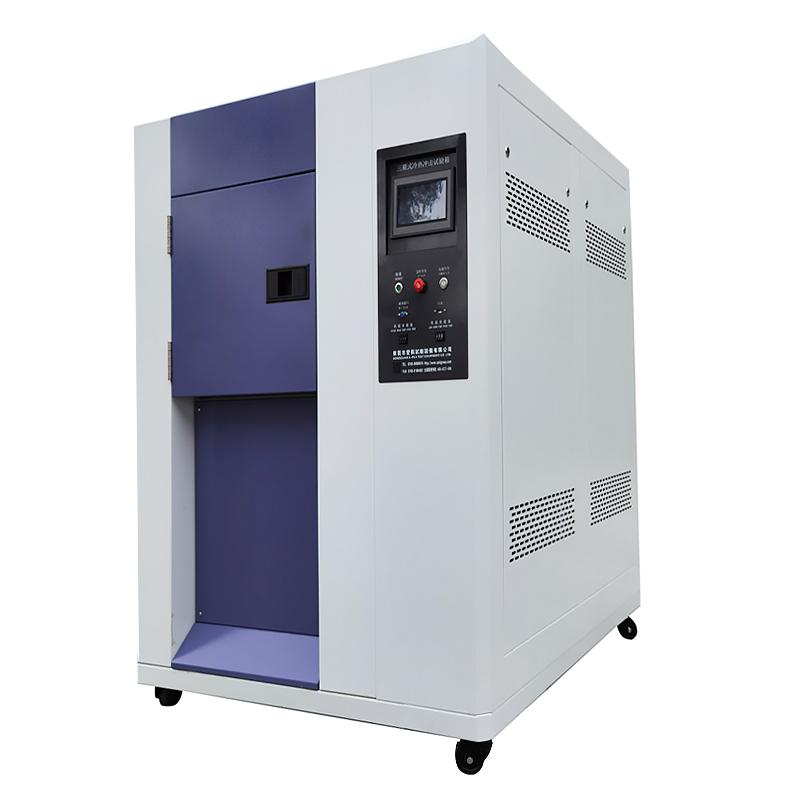

APKJ 3AP-CJ-80B Thermal Shock Test Chamber is a special equipment for testing the performance of materials in extremely high temperature and extremely low temperature continuous environment. It adopts a three-box structure divided into high temperature zone, low temperature zone and test zone. The test sample is completely stationary in the test zone, and is introduced into the test zone by strong cooling hot air circuit switching to complete the cold and hot temperature Impact test. It is widely used in Electronics, Auto Parts, Metal Chemical Materials and other industries.
1. The structure of the three-box equipment is divided into a high-temperature zone, a low-temperature zone, and a test zone, and the test samples are completely static 2. Using unique heat storage and cold storage structure, strong cooling hot air circuit switching mode is introduced into the test area 3. Can independently set high temperature, low temperature and Thermal Shock three different conditions function 4. When performing Thermal Shock, you can choose 2 or 3 boxes function, with high and low temperature testing machine function 5. Equipped with 7-inch oversized touch AP-950 programmable temperature controller, touch screen input 6. The box is made of rigid polyurethane foam insulation material, which has the advantages of energy saving, shock resistance, and ultra-low temperature thermal conductivity 7. Multiple safety protection devices include Compressor protection, laboratory temperature protection, power supply protection, etc
It adopts a unique heat storage and cold storage structure, and the switching mode of strong cooling hot air circuit is introduced into the test area. Impact the temperature in the high temperature or low temperature area into the test area to complete the hot and cold temperature Impact test. The equipment automatically adjusts the operating conditions of the refrigerator according to the test conditions through the PLC of the control system to achieve accurate temperature control.
Electronics components, plastics, automation parts, communication components, auto parts, metals, chemical materials, plastics, defense industry, aerospace, military industry, BGA, PCB substrate, electronic chip IC, semiconductor ceramic, polymer materials
GB/T2423.1-2008、GB/T2423.2-2008、GB/T2423.22-2012、GJB150.5-86、GJB360.7-87、GJB367.2-87、QC/T17-92、EIA364-32、IEC68-2-14
1. Configure the air or power switch of the corresponding capacity to ensure that the AC380V power supply is used independently for this equipment 2. Connect the power cord to ensure the voltage range AC (380 +/- 10) V, frequency (50 +/- 0.5) Hz 3. Set High Temperature, Low Temperature and Thermal Shock Conditions with 7-inch Touch Screen Controller 4. Place the specimen in the test area and start the equipment for Impact testing 5. Monitor real-time temperature Linear dispersion and alarm display 6. Automatically record data after the test is completed
The user is required to configure an air or power switch of corresponding capacity at the installation site, and this switch needs to be used independently for this equipment ○ power requirements: three-phase four-wire + protective ground wire, voltage range AC (380 +/- 10) V, frequency allowable fluctuation range (50 +/- 0.5) Hz The grounding resistance of the protective wire is less than 4Ω. ○ The surrounding environment temperature of the machine is maintained between + 25~ + 30 ° C, and the relative humidity is ≤ 85% ○ When the equipment is not working, the environment temperature should be kept within 0 ℃~ + 45 ℃ ○ When the environment temperature is lower than 0 ℃, the water remaining in the equipment should be drained clean ○ This plan does not include the installation of ventilated pipes, power supplies (leakage switches), air sources (Air Compressors), water sources and other equipment environment items
[A] No, it isn't. This is the ex-factory price of the product in the Chinese Mainland. In addition to this price, buyers from different countries need to account for additional costs such as shipping fees, tariffs, and others. For specific regional quotes, please consult our customer service or fill out a quotation form.
[A] First, please click on the quotation form on the website and fill in detailed information. Our customer service personnel will then send you a quotation based on your specific country and region, confirming payment and delivery methods. Following this, we proceed with contract signing, payment, and shipment. You can then await delivery.
[A] After-sales repair for overseas instruments is an unavoidable issue. Our repair terms stipulate that the sender is responsible for the shipping and insurance costs incurred for the repair. Repairs within the warranty period are free, while repair costs beyond the warranty period are determined based on the actual situation.
