$ 20009.00Ex works
Adopt three-box heat storage and cold storage structure, temperature conversion time ≤ 10 seconds, Temperature range -65 ℃~ + 150 ℃, with independent temperature control functions in high temperature zone, low temperature zone and test zone, and can perform 2-box or 3-box Impact mode.
Category : Thermal Shock Test Chamber
Brand : Apkjgroup
SKU : NB042366
Service :The delivery and service By NBCLab.Com

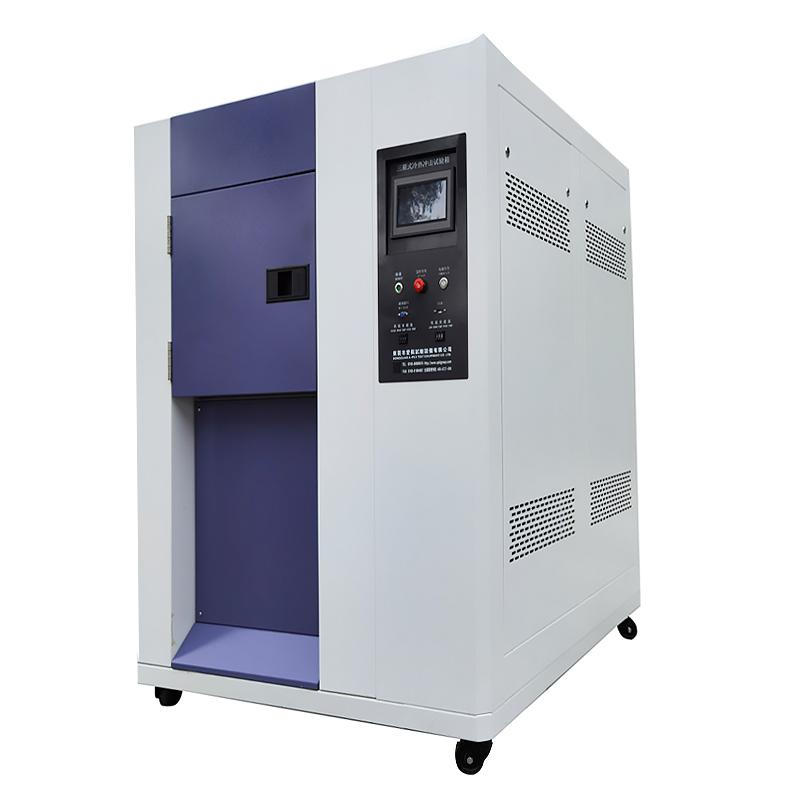

APKJ 3AP-CJ-80C Thermal Shock Test Chamber is a device used to test the tolerance of materials in extremely high temperature and extremely low temperature continuous environments. It adopts a three-box structure, which is divided into a high temperature zone, a low temperature zone and a test zone. The test sample is completely stationary in the test zone, and is introduced into the test zone for Impact through strong cooling hot air circuit switching to complete the hot and cold temperature Impact test.
1. The three-box equipment is divided into three parts: high temperature area, low temperature area and test area. The test sample is completely still in the test area. It adopts a unique heat storage and cold storage structure, and the strong cooling hot air circuit switching method is introduced into the test area. 2. Can independently set the functions of high temperature, low temperature and Thermal Shock three different conditions. When performing Thermal Shock conditions, you can choose the function of 2 or 3 boxes and have the function of a high and low temperature tester. Compared with 2 boxes of Impact, it can also choose to do normal temperature Impact. 3. The box insulation material adopts rigid polyurethane foam, which has the advantages of effective energy saving, shock resistance and compression resistance, ultra-low temperature thermal conductivity, effective insulation and sound insulation, and good waterproof performance. 4. Equipped with self-developed 7-inch super-large touch AP-950 programmable temperature controller, full touch screen input, can arbitrarily set different high and low temperature Impact temperature points, with temperature alarm display, real-time temperature Linear dispersion display.
The structure of heat storage and cold storage is adopted, and the switching mode of strong cooling hot air circuit is introduced into the test area. When the impact is made, the temperature of the high temperature area or the low temperature area is rushed into the test area for Impact, and the hot and cold temperature Impact test is completed. The test method is that the test sample is completely still in the test area, and the operating conditions of the refrigerator are automatically adjusted by the PLC of the control system to achieve rapid temperature conversion and recovery.
Electronics components plastic and other industries, automation parts, communication components, auto parts, metals, chemical materials, plastics and other industries, national defense industry, aerospace, military industry, BGA, PCB base wrench, electronic chip IC, semiconductor ceramic and polymer materials
GB/T2423.1-2008、GB/T2423.2-2008、GB/T2423.22-2012、GJB150.5-86、GJB360.7-87、GJB367.2-87、QC/T17-92、EIA364-32、IEC68-2-14
1. Equip the corresponding capacity air or power switch to ensure the independent use of the AC380V power supply for this equipment. 2. Set the High Temperature, Low Temperature or Thermal Shock conditions through the controller on the operation board. 3. Select the 2-box or 3-box function and set the Impact exposure time (≥ 30min). 4. Start the device, the control system automatically executes the program, and displays the graphic Linear dispersion in real time. 5. After the test is completed, the equipment automatically stops or shuts down according to the setting.
The user is required to configure the corresponding capacity air or power switch at the installation site, and this switch needs to be independent for the equipment to use AC380V power requirements: three-phase four-wire + protective ground wire, voltage range: AC (380 +/- 10) V, frequency allowable fluctuation range: (50 +/- 0.5) Hz, protective wire grounding resistance is less than 4Ω. ○ This plan does not include ventilated pipes, power supply (leakage switch), air source (Air Compressor), water source (bottled water or water pipe) and other equipment environment items installation. ○ When the equipment is not working, the temperature of the environment should be kept within 0 ° C~ + 45 ° C; when the environment temperature is lower than 0 ° C, the water remaining in the equipment should be drained clean to avoid the water in the pipeline freezing and damaging the pipeline. Attention should be paid to safety protection devices, including refrigeration systems, laboratories, and Miscellaneous protection functions, to ensure safe operation.
[A] No, it isn't. This is the ex-factory price of the product in the Chinese Mainland. In addition to this price, buyers from different countries need to account for additional costs such as shipping fees, tariffs, and others. For specific regional quotes, please consult our customer service or fill out a quotation form.
[A] First, please click on the quotation form on the website and fill in detailed information. Our customer service personnel will then send you a quotation based on your specific country and region, confirming payment and delivery methods. Following this, we proceed with contract signing, payment, and shipment. You can then await delivery.
[A] After-sales repair for overseas instruments is an unavoidable issue. Our repair terms stipulate that the sender is responsible for the shipping and insurance costs incurred for the repair. Repairs within the warranty period are free, while repair costs beyond the warranty period are determined based on the actual situation.
