$ 21586.00Ex works
The three-box structure design is adopted, the test sample is still in the test area, the temperature recovery time is ≤ 5min, and the conversion time is ≤ 10s. It has three test functions of high temperature, low temperature and Thermal Shock, meeting a variety of standard requirements.
Category : Thermal Shock Test Chamber
Brand : Apkjgroup
SKU : NB042370
Service :The delivery and service By NBCLab.Com

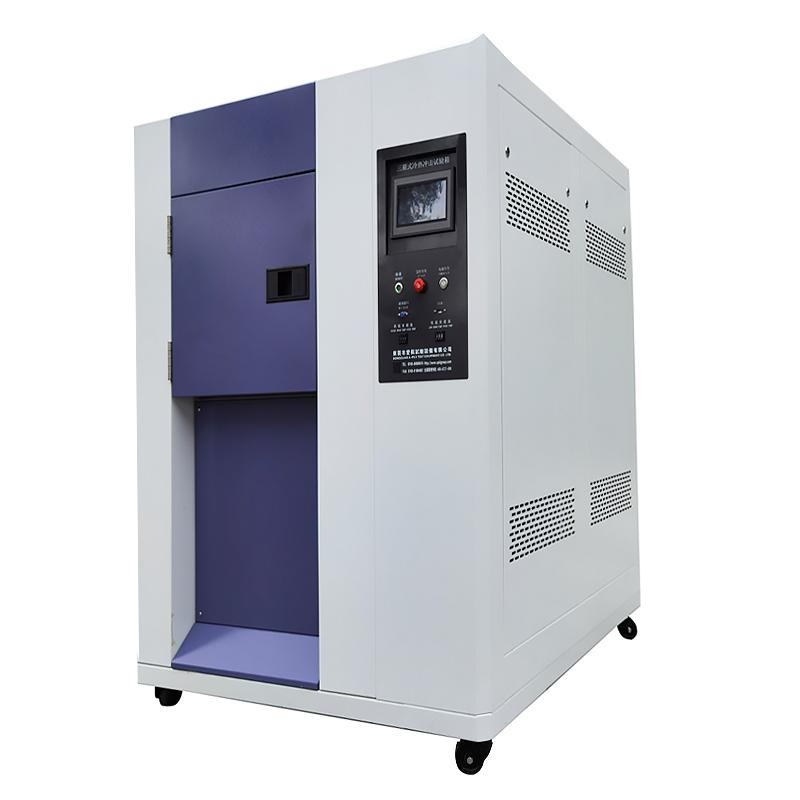

APKJ 3AP-CJ-150A Thermal Shock Test Chamber is a device used to test the tolerance of materials in extremely high temperature and extremely low temperature continuous environments. It adopts a three-box structure, including high temperature zone, low temperature zone and test zone. The test sample is completely stationary in the test zone, and the temperature Impact test is realized by switching the strong cooling hot air path.
The three-box equipment structure is divided into a high-temperature zone, a low-temperature zone, and a test zone, and the test sample is completely stationary. 2. Using unique heat storage and cold storage structure, strong cooling hot air circuit switching mode is introduced into the test area. 3. Three functions of high temperature, low temperature and Thermal Shock can be set independently, 2 or 3 boxes can be selected, and it has the function of high and low temperature testing machine. 4. Equipped with self-developed 7-inch super touch AP-950 programmable temperature controller, supports touch screen input and temperature Linear dispersion display. 5. The box insulation material is made of rigid polyurethane foam, which has the advantages of energy saving, shock resistance, ultra-low temperature thermal conductivity, insulation and sound insulation, and waterproof. 6. Complete safety protection devices, including Compressor protection, laboratory temperature protection and power supply protection.
The structure of heat storage and cold storage is adopted, and the switching mode of strong cooling hot air circuit is introduced into the test area. During the impact, the temperature of the high temperature area or the low temperature area is rushed into the test area for Impact, and the hot and cold temperature Impact test is completed. The controller automatically adjusts the operating conditions of the refrigerator according to the set conditions to achieve rapid temperature conversion and recovery.
Electronics Components Plastics, Automation Components, Communication Components, Auto Parts, Metals, Chemical Materials, Plastics, Defense Industry, Aerospace, Military Industry, BGA, PCB, Electronic Chip IC, Semiconductor Ceramics, Polymer Materials
GB/T2423.1-2008、GB/T2423.2-2008、GB/T2423.22-2012、GJB150.5-86、GJB360.7-87、GJB367.2-87、QC/T17-92、EIA364-32、IEC68-2-14
1. Configure an independent AC380V power supply to ensure that the voltage and frequency meet the requirements. 2. Turn on the main power switch and start the device. 3. Set the high and low temperature Impact temperature point and program through the touch screen controller. 4. Place the sample in the test area and initiate the test program. 5. The device automatically executes Thermal Shock and displays the temperature Linear dispersion in real time. 6. After the test is completed, the device automatically stops and records data.
The installation site needs to be equipped with an independent AC380V power supply, with a voltage range of AC (380 +/- 10) V and a frequency of (50 +/- 0.5) Hz. The grounding resistance of the protective wire is less than 4 ohms. ○ When the equipment is not working, the environment temperature should be maintained at 0 ℃~ + 45 ℃, and when it is lower than 0 ℃, it needs to be drained and antifreeze. ○ Check the safety protection device before use, such as Compressor overpressure, overheating protection, etc. Avoid operating in environments with humidity > 85% or abnormal air pressure. Maintain the refrigeration system and mechanical components regularly.
