$ 23833.00Ex works
The three-box structure is used to achieve a completely static test zone, with a temperature conversion time of ≤ 10 seconds and a temperature recovery of ≤ 5 minutes. It has an Impact range of 150 ° C in the high temperature zone and -55 ° C in the low temperature zone, meeting the needs of rapid temperature change testing.
Category : Thermal Shock Test Chamber
Brand : Apkjgroup
SKU : NB042371
Service :The delivery and service By NBCLab.Com

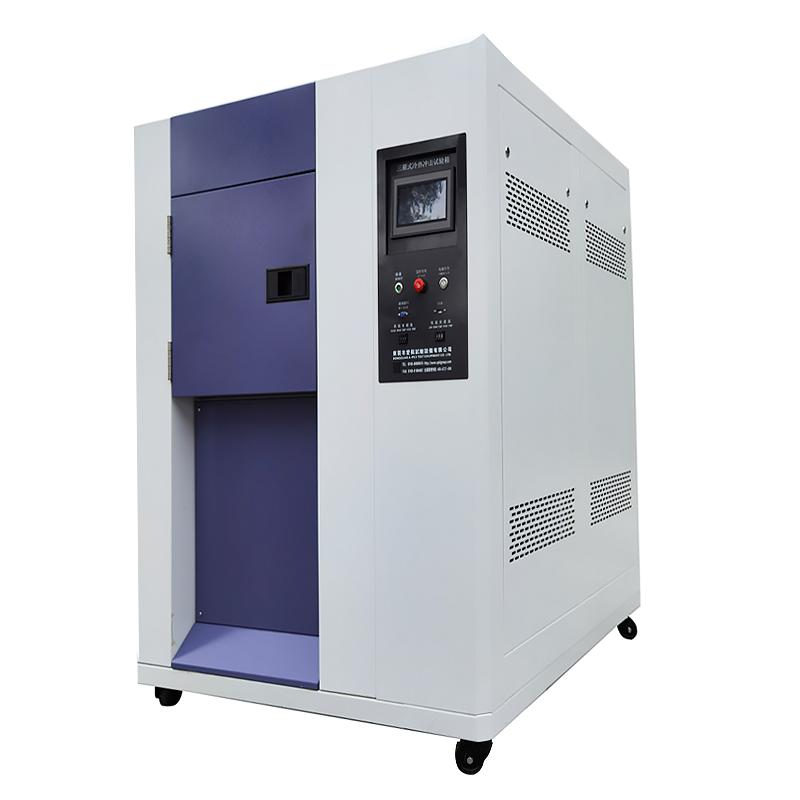

APKJ 3AP-CJ-150B Thermal Shock Test Chamber is a professional equipment used to test the tolerance of materials in extremely high and very low temperature continuous environments. The equipment adopts a three-box structure design and is equipped with a self-developed 7-inch touch screen controller to precisely control the temperature Impact process. It is widely used in mass inspection in many industries such as electronics, automotive parts, and metal materials.
1. Adopting a three-box structure design, it is divided into a high-temperature zone, a low-temperature zone, and a test zone. The test sample is completely stationary in the test zone 2, unique heat storage and cold storage structure, strong cooling hot air circuit switching mode into the test area 3. Can independently set high temperature, low temperature and Thermal Shock three different conditions function 4. Can choose 2 or 3 boxes function, with high and low temperature testing machine function 5. Equipped with a 7-inch oversized touch AP-950 programmable temperature controller 6. Using rigid polyurethane foam insulation material, it has the advantages of energy saving, shockproof, insulation, waterproof, etc 7. Equipped with complete safety protection devices and multiple protection functions
The equipment adopts a heat storage and cold storage structure, and the temperature in the high temperature or low temperature area is introduced into the test area through the switching mode of strong cooling hot air circuit for Impact. When the Thermal Shock is executed, the system will automatically switch the air circuit according to the set conditions, so that the test area experiences drastic temperature changes in a very short time, completing the cold and hot temperature Impact test process.
Electronics components, plastic industry, automation parts, communication components, auto parts, metals, chemical materials, plastics, defense industry, aerospace, military industry, BGA, PCB substrate, electronic chip IC, semiconductor ceramic, polymer materials
GB/T2423.1-2008、GB/T2423.2-2008、GB/T2423.22-2012、GJB150.5-86、GJB360.7-87、GJB367.2-87、QC/T17-92、EIA364-32、IEC68-2-14
1. Set Required High Temperature, Low Temperature and Thermal Shock Conditions with 7-inch Touch Screen Controller 2. Select the 2-box or 3-box function mode 3. Place the test sample in the test area sample shelf 4. Start the device execution program 5. Real-time monitoring of temperature Linear dispersion and test process 6. After the test is completed, the device automatically stops running
○ The equipment installation site needs to be equipped with air or power switches of corresponding capacity ○ The power requirements are three-phase four-wire + protective ground wire, voltage range AC (380 +/- 10) V The grounding resistance of the protective wire should be less than 4Ω. ○ The equipment does not include ventilated pipes, power leakage switches, air Compressors, water sources and other external environment items ○ When the equipment is not working, the environment temperature should be kept within 0 ℃~ + 45 ℃ ○ When the environment temperature is lower than 0 ° C, the water remaining in the equipment needs to be drained clean ○ Test environmental conditions should be maintained within the range of temperature + 25~ + 30 ℃ and relative humidity ≤ 85% ○ The maximum power is about 10.0KW, and the maximum current is 15A.
[A] No, it isn't. This is the ex-factory price of the product in the Chinese Mainland. In addition to this price, buyers from different countries need to account for additional costs such as shipping fees, tariffs, and others. For specific regional quotes, please consult our customer service or fill out a quotation form.
[A] First, please click on the quotation form on the website and fill in detailed information. Our customer service personnel will then send you a quotation based on your specific country and region, confirming payment and delivery methods. Following this, we proceed with contract signing, payment, and shipment. You can then await delivery.
[A] After-sales repair for overseas instruments is an unavoidable issue. Our repair terms stipulate that the sender is responsible for the shipping and insurance costs incurred for the repair. Repairs within the warranty period are free, while repair costs beyond the warranty period are determined based on the actual situation.
