$ 28327.00Ex works
The three-box structure is used to realize the static test sample, the heat storage and cold storage design is matched with the forced air circuit switching, the temperature conversion only takes 10 seconds, and the temperature control accuracy reaches +/- 0.5 ℃, which meets the requirements of continuous testing in extremely high temperature and extremely low temperature environment.
Category : Thermal Shock Test Chamber
Brand : Apkjgroup
SKU : NB042372
Service :The delivery and service By NBCLab.Com

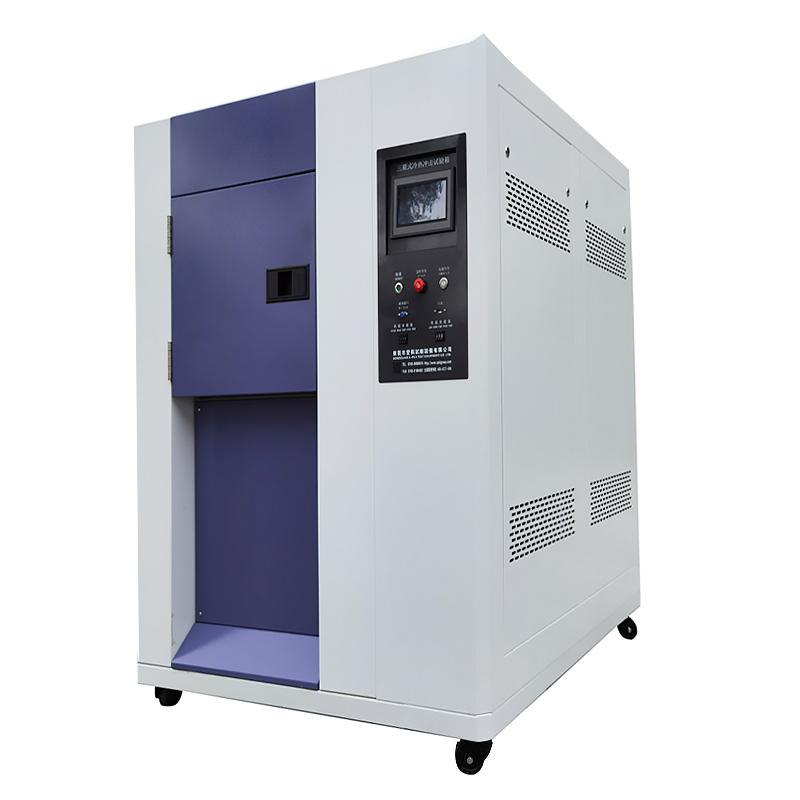

APKJ 3AP-CJ-150C Thermal Shock Test Chamber is a device used to test the resistance of materials in extremely high temperature and extremely low temperature continuous environments. It adopts a three-box structure, which is divided into high temperature zone, low temperature zone and test zone. The test sample is completely stationary in the test zone, and the impact temperature test is carried out by switching the strong cooling hot air path.
1. The three-box equipment is divided into three parts: high temperature area, low temperature area and test area. The test sample is completely still in the test area. Using a unique heat storage and cold storage structure, the strong cooling hot air circuit switching method is introduced into the test area. 2. Can independently set the functions of high temperature, low temperature and Thermal Shock three different conditions. When performing Thermal Shock conditions, you can choose the function of 2 or 3 boxes and have the function of a high and low temperature tester. 3. The box insulation material adopts rigid polyurethane foam, which has the advantages of effective energy saving, shock resistance and compression resistance, ultra-low temperature thermal conductivity, effective insulation and sound insulation, and good waterproof performance. 4. Equipped with self-developed 7-inch super-large touch AP-950 programmable temperature controller, full touch screen input, can arbitrarily set different high and low temperature Impact temperature points. 5. It has multiple safety protection devices, including refrigeration systems, laboratories, and Miscellaneous protection functions.
The unique heat storage and cold storage structure is adopted, and the switching mode of strong cooling hot air circuit is introduced into the test area. When the impact is carried out, the temperature of the high temperature or low temperature area is rushed into the test area for Impact, and the hot and cold temperature Impact test is completed. The PLC of the control system automatically adjusts the operating conditions of the refrigerator according to the test conditions.
Electronics components plastic and other industries, automation parts, communication components, auto parts, metals, chemical materials, plastics and other industries, national defense industry, aerospace, military industry, BGA, PCB base wrench, electronic chip IC, semiconductor ceramic and polymer materials
GB/T2423.1-2008、GB/T2423.2-2008、GB/T2423.22-2012、GJB150.5-86、GJB360.7-87、GJB367.2-87、QC/T17-92、EIA364-32、IEC68-2-14
1. Equip the corresponding capacity air or power switch to independently supply the device with an AC 380V power supply. 2. Set High Temperature, Low Temperature and Thermal Shock Conditions through the controller of the operation board. Select 2 or 3 boxes to perform Thermal Shock Test. 4. The device automatically performs Temperature Impact and displays graphic Linear dispersion in real time. 5. After the test is completed, the device automatically stops running.
The user is required to configure an air or power switch of the corresponding capacity at the installation site, and this switch needs to be used independently for this equipment. ○ power requirements: three-phase four-wire + protective ground wire; voltage range: AC (380 +/- 10) V; frequency allowable fluctuation range: (50 +/- 0.5) Hz; protective wire grounding resistance is less than 4Ω. ○ This plan does not include ventilated pipes, power supply (leakage switch), air source (Air Compressor), water source (bottled water or water pipe) and other equipment environment items installation. ○ Test environmental conditions: the environment temperature around the machine is maintained between + 25~ + 30 ℃, relative humidity: ≤ 85%; air pressure: 86kPa~ 106kPa normal atmospheric pressure. Storage environment: When the equipment is not working, the temperature of the environment should be kept within 0 ° C~ + 45 ° C; when the environment temperature is lower than 0 ° C, the water remaining in the equipment should be discharged clean.
[A] No, it isn't. This is the ex-factory price of the product in the Chinese Mainland. In addition to this price, buyers from different countries need to account for additional costs such as shipping fees, tariffs, and others. For specific regional quotes, please consult our customer service or fill out a quotation form.
[A] First, please click on the quotation form on the website and fill in detailed information. Our customer service personnel will then send you a quotation based on your specific country and region, confirming payment and delivery methods. Following this, we proceed with contract signing, payment, and shipment. You can then await delivery.
[A] After-sales repair for overseas instruments is an unavoidable issue. Our repair terms stipulate that the sender is responsible for the shipping and insurance costs incurred for the repair. Repairs within the warranty period are free, while repair costs beyond the warranty period are determined based on the actual situation.
