$ 12136.00Ex works
Dynamic impact testing is achieved with a two-box mobile structure. The impact conversion time is within 10 seconds, and the temperature recovery time is within 5 minutes. It is equipped with rigid polyurethane foam insulation materials to ensure low thermal conductivity and meet a number of national standards.
Category : Thermal Shock Test Chamber
Brand : Apkjgroup
SKU : NB042373
Service :The delivery and service By NBCLab.Com

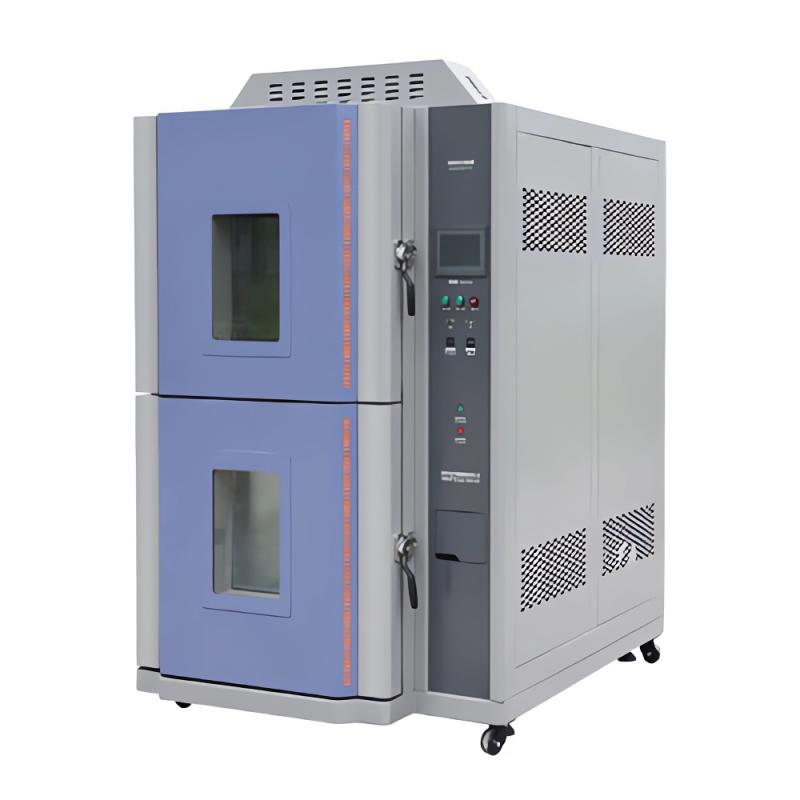

APKJ 2AP-CJ-27A Thermal Shock Test Chamber is a device used to test the performance of materials in extremely high temperature and extremely low temperature continuous environments. The device adopts a two-box mobile design, which is divided into high temperature zone and low temperature zone. Impact dynamically between the high temperature zone and the low temperature zone by air pressure driving the test object can test the chemical or physical changes caused by thermal expansion and contraction of the material in the shortest time.
1. Two-box Mobile Thermal Shock, Safe Air Pressure Drives Test Objects Up and Down Impact 2. Adopt imported color touch LCD Chinese/English microcomputer temperature controller made in Japan 3. Paperless recording function, with real-time display of Linear dispersion diagram of temperature impact test changes and dual recording functions 4. Thermal Shock Mechanism Moving Time Within 10 Seconds 5. Thermal Shock Temperature Recovery Time Within 5 Minutes 6. Adopt HFC environmentally friendly refrigerant, binary ultra-low temperature freezing system design, fast cooling and high efficiency 7. The box insulation material is made of rigid polyurethane foam, which has the advantages of energy saving, shock and compression resistance, ultra-low temperature thermal conductivity, insulation and sound insulation, waterproof and moisture-proof, etc
The equipment adopts two-box design, which is divided into two parts: high temperature zone and low temperature zone. The test product is placed in the basket, and the basket is moved between the high temperature zone and the low temperature zone through the pneumatic drive system for impact test. The control system automatically adjusts the temperature according to the set program to realize the continuous impact environment of extremely high temperature and extremely low temperature, and tests the tolerance performance of the material under rapid temperature changes.
Electronics components plastic and other industries, automation parts, communication components, auto parts, metals, chemical materials, plastics and other industries, national defense industry, aerospace, military industry, BGA, PCB base wrench, electronic chip IC, semiconductor ceramic and polymer materials
GB/T2423.1-2008、GB/T2423.2-2008、GB/T2423.22-2012、GJB150.5-86、GJB360.7-87、GJB367.2-87、QC/T17-92、EIA364-32、IEC68-2-14
1. Place the product in the hanging basket test area 2. Set the High and Low Temperature Impact Temperature Point through the Touch Screen Controller 3. Start the equipment, and the pneumatic drive system will impact the test object up and down between the high temperature zone and the low temperature zone. 4. Real-time observation of temperature Linear dispersion and recording data 5. Automatic stop after the test
The user is required to configure an air or power switch of corresponding capacity at the installation site, and this switch needs to be used independently for this equipment ○ power requirements: three-phase four-wire + protective ground wire, voltage range AC (380 +/- 10) V, frequency allowable fluctuation range (50 +/- 0.5) Hz, protective wire grounding resistance less than 4Ω ○ Test environmental conditions: the environment temperature around the machine is maintained between + 25~ + 30 ℃, relative humidity ≤ 85%, air pressure 86kPa~ 106kPa normal atmospheric pressure ○ When the equipment is not working, the temperature of the environment should be kept within 0 ° C~ + 45 ° C; when the environment temperature is lower than 0 ° C, the water remaining in the equipment should be drained clean ○ Air source pressure requirements (5~ 7) kg/cm2, air source connection pipe diameter φ 8mm, air source flow rate 0.1m3/min ○ This plan does not include ventilated pipes, power supply (leakage switch), air source (Air Compressor), water source (bottled water or water pipe) and other equipment environment items installation
[A] No, it isn't. This is the ex-factory price of the product in the Chinese Mainland. In addition to this price, buyers from different countries need to account for additional costs such as shipping fees, tariffs, and others. For specific regional quotes, please consult our customer service or fill out a quotation form.
[A] First, please click on the quotation form on the website and fill in detailed information. Our customer service personnel will then send you a quotation based on your specific country and region, confirming payment and delivery methods. Following this, we proceed with contract signing, payment, and shipment. You can then await delivery.
[A] After-sales repair for overseas instruments is an unavoidable issue. Our repair terms stipulate that the sender is responsible for the shipping and insurance costs incurred for the repair. Repairs within the warranty period are free, while repair costs beyond the warranty period are determined based on the actual situation.
