$ 14383.00Ex works
Dynamic Impact is achieved with a two-box mobile structure, with a hot and cold conversion time of 10 seconds and a temperature recovery time of 5 minutes. It is equipped with rigid polyurethane foam insulation material, with ultra-low temperature thermal conductivity and multiple safety protection devices.
Category : Thermal Shock Test Chamber
Brand : Apkjgroup
SKU : NB042374
Service :The delivery and service By NBCLab.Com

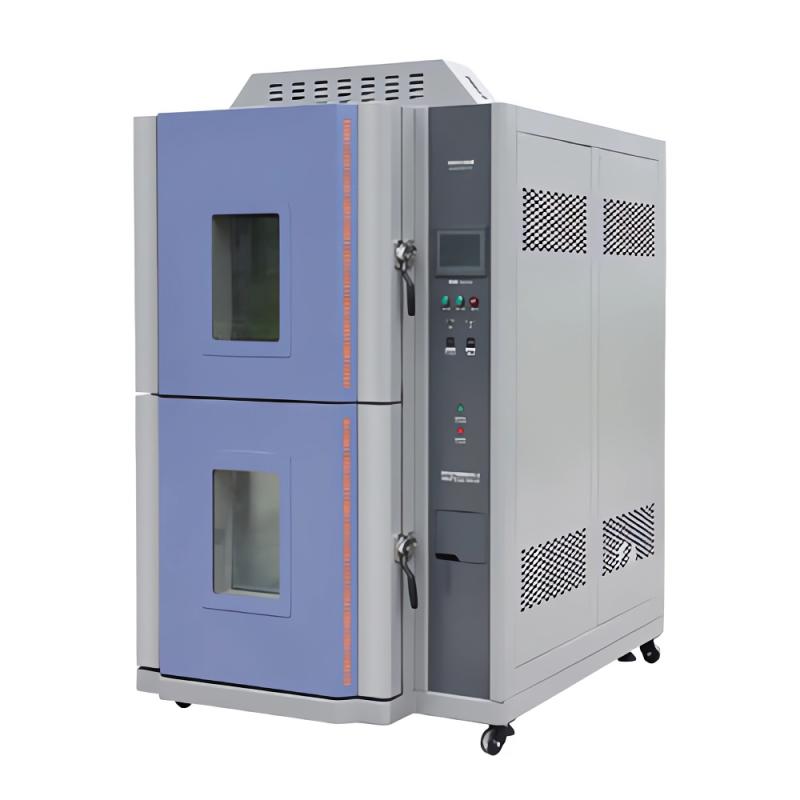

The APKJ 2AP-CJ-27B Thermal Shock Test Chamber is a device used to test the performance of materials in extremely high temperature and extremely low temperature continuous environments. The device adopts a two-box mobile design, which is divided into high temperature and low temperature zones. The impact test is carried out by the dynamic movement test product of the pneumatic drive basket, which can simulate the chemical or physical changes caused by the thermal expansion and contraction of the material in the shortest time.
1. Adopt self-developed 7-inch super-large touch AP-950 programmable temperature controller, support touch screen input and arbitrary setting of high and low temperature Impact temperature points 2. Two-box Mobile Thermal Shock Design, Safe Air Pressure Drives Test Objects Up and Down Impact 3. Adopt imported color touch LCD Chinese/English microcomputer temperature controller made in Japan 4. With paperless recording function, real-time display of temperature impact test changes Linear dispersion and recording dual functions 5. Thermal Shock Mechanism Moving Time Within 10 Seconds, Temperature Recovery Time Within 5 Minutes 6. Adopt HFC environmentally friendly refrigerant and binary ultra-low temperature freezing system design, with fast cooling and high efficiency 7. The box is made of rigid polyurethane foam thermal insulation material, which has the advantages of energy saving, shock and compression resistance, ultra-low temperature thermal conductivity, insulation and sound insulation, waterproof and moisture-proof, etc
The equipment is divided into two parts: high temperature zone and low temperature zone, and the test product is placed in the basket. During Impact, the basket moves the test product into the high temperature zone or low temperature zone for Impact, and the test product is dynamic. Impact the test object up and down by air pressure, and test the tolerance of the material in a continuous environment of extremely high temperature and extremely low temperature in an instant.
Electronics components plastic and other industries, automation parts, communication components, auto parts, metals, chemical materials, plastics and other industries, national defense industry, aerospace, military industry, BGA, PCB base wrench, electronic chip IC, semiconductor ceramic and polymer materials
GB/T2423.1-2008、GB/T2423.2-2008、GB/T2423.22-2012、GJB150.5-86、GJB360.7-87、GJB367.2-87、QC/T17-92、EIA364-32、IEC68-2-14
1. Place the product in the hanging basket test area 2. Set the required high and low temperature Impact temperature point through the touch screen controller 3. Start the equipment and drive the test object up and down between the high temperature zone and the low temperature zone. Impact 4. Real-time monitoring of temperature Linear dispersion and test process 5. Automatically stop and record data after the test
The user is required to configure an air or power switch of corresponding capacity at the installation site, and this switch needs to be used independently for this equipment ○ power requirements: three-phase four-wire + protective ground wire, voltage range AC (380 +/- 10) V, frequency allowable fluctuation range (50 +/- 0.5) Hz, protective wire grounding resistance less than 4Ω ○ Test environmental conditions: the environment temperature around the machine is maintained between + 25~ + 30 ℃, relative humidity ≤ 85%, air pressure 86kPa~ 106kPa normal atmospheric pressure ○ When the equipment is not working, the temperature of the environment should be kept within 0 ° C~ + 45 ° C; when the environment temperature is lower than 0 ° C, the water remaining in the equipment should be drained clean ○ This plan does not include ventilated pipes, power supply (leakage switch), air source (Air Compressor), water source (bottled water or water pipe) and other equipment environment items installation
[A] No, it isn't. This is the ex-factory price of the product in the Chinese Mainland. In addition to this price, buyers from different countries need to account for additional costs such as shipping fees, tariffs, and others. For specific regional quotes, please consult our customer service or fill out a quotation form.
[A] First, please click on the quotation form on the website and fill in detailed information. Our customer service personnel will then send you a quotation based on your specific country and region, confirming payment and delivery methods. Following this, we proceed with contract signing, payment, and shipment. You can then await delivery.
[A] After-sales repair for overseas instruments is an unavoidable issue. Our repair terms stipulate that the sender is responsible for the shipping and insurance costs incurred for the repair. Repairs within the warranty period are free, while repair costs beyond the warranty period are determined based on the actual situation.
