$ 16630.00Ex works
The two-box mobile structure is adopted, the Thermal Shock mechanism moves within 10 seconds, and the temperature recovery time is within 5 minutes. It is equipped with HFC environmentally friendly refrigerant and binary ultra-low temperature freezing system, which has high cooling speed and efficiency. It supports paperless recording and real-time Linear dispersion display function.
Category : Thermal Shock Test Chamber
Brand : Apkjgroup
SKU : NB042375
Service :The delivery and service By NBCLab.Com

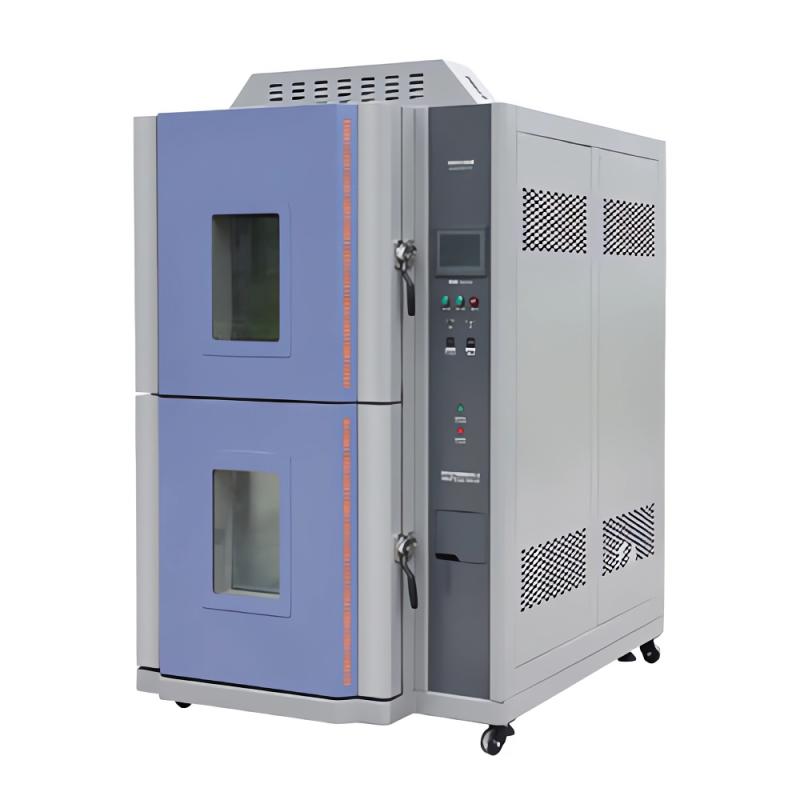

APKJ 2AP-CJ-27C Thermal Shock Test Chamber is a device used to test the physical changes of materials in a continuous environment of extremely high temperature and extremely low temperature. It adopts a two-box mobile design, which is divided into a high temperature zone and a low temperature zone. The test products are dynamically moved by the basket for impact testing, which is widely used in Electronics, Auto Parts, Metal Chemistry and other industries.
1. Two-box Mobile Thermal Shock, Safety Air Pressure Drives the Test Object Up and Down Impact. 2. Adopt imported color touch LCD Chinese/English microcomputer temperature controller made in Japan. 3. Paperless recording function, with real-time display of temperature impact test changes Linear dispersion diagram and recording dual functions. 4. Thermal Shock mechanism moving time within 10 seconds, can comply with MIL, LEC, JIS and other specifications. Thermal Shock temperature recovery time within 5 minutes, can meet the relevant test specifications. 6. Adopt HFC environmentally friendly refrigerant, binary ultra-low temperature freezing system design, fast cooling and high efficiency. 7. The box insulation material is rigid polyurethane foam, which has the advantages of energy saving, shock resistance, ultra-low temperature thermal conductivity, insulation and sound insulation, and waterproof.
The test chamber stores heat and cooling capacity through high and low greenhouses. The test products are placed in the basket and dynamically moved into the high temperature or low temperature area under the drive of air pressure for Impact. The control system uses programmable controller and touch screen input to automatically adjust the refrigeration and heating system according to the set temperature point to achieve rapid temperature change and recovery.
Electronics components plastic and other industries, automation parts, communication components, auto parts, metals, chemical materials, plastics and other industries, national defense industry, aerospace, military industry, BGA, PCB base wrench, electronic chip IC, semiconductor ceramic and polymer materials
GB/T2423.1-2008、GB/T2423.2-2008、GB/T2423.22-2012、GJB150.5-86、GJB360.7-87、GJB367.2-87、QC/T17-92、EIA364-32、IEC68-2-14
1. Place the product in the hanging basket test area. 2. Set the high and low temperature Impact temperature point through the touch screen controller. 3. Start the equipment and drive the test object up and down Impact. 4. Monitor real-time temperature Linear dispersion and record data. 5. Automatic stop or manual shutdown after the test.
• Installation site requires an independent AC380V power supply, including three-phase four-wire + protective ground wire, voltage range AC (380 +/- 10) V, frequency (50 +/- 0.5) Hz, protective wire grounding resistance less than 4Ω. The equipment does not include ventilated pipes, power supplies, gas sources, water sources and other external environment items. • environment temperature should be maintained at + 25~ + 30 ℃, relative humidity ≤ 85%, pressure 86kPa~ 106kPa. • When the equipment is not working, the environment temperature is maintained at 0 ° C~ + 45 ° C. When it is lower than 0 ° C, water storage needs to be discharged to prevent the pipeline from freezing. • Check safety protection devices before use, such as Compressor overpressure, overheating, overcurrent protection, etc. • Avoid operating under conditions that do not meet the environment to prevent equipment damage or test errors.
[A] No, it isn't. This is the ex-factory price of the product in the Chinese Mainland. In addition to this price, buyers from different countries need to account for additional costs such as shipping fees, tariffs, and others. For specific regional quotes, please consult our customer service or fill out a quotation form.
[A] First, please click on the quotation form on the website and fill in detailed information. Our customer service personnel will then send you a quotation based on your specific country and region, confirming payment and delivery methods. Following this, we proceed with contract signing, payment, and shipment. You can then await delivery.
[A] After-sales repair for overseas instruments is an unavoidable issue. Our repair terms stipulate that the sender is responsible for the shipping and insurance costs incurred for the repair. Repairs within the warranty period are free, while repair costs beyond the warranty period are determined based on the actual situation.
